Description

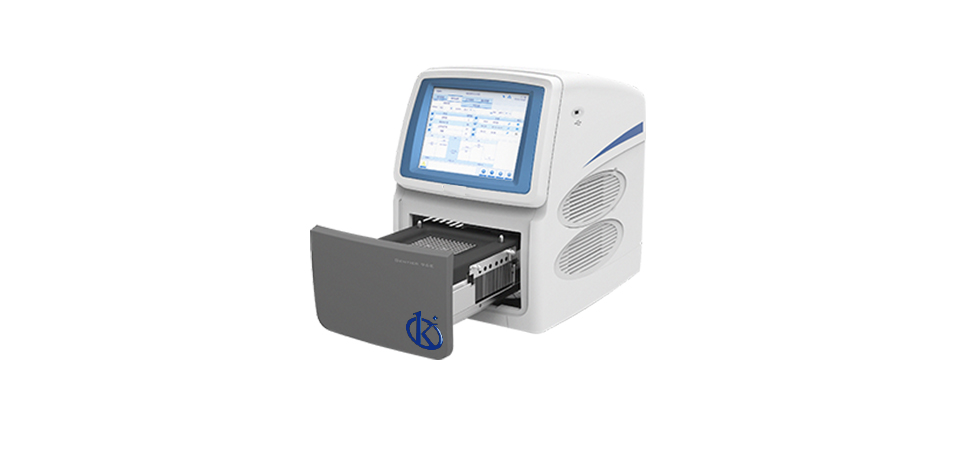

The Real-time PCR System YR01869 is an advanced PCR assay machine designed specifically for high-end laboratories seeking reliability and efficiency. With its ability to process 96 samples in just 7 seconds and featuring five fluorescence channels, this system significantly boosts productivity. Its user-friendly software and operating design ensure seamless operation, while powerful temperature control and power failure protection provide consistent performance, even in unexpected situations. The Gentier 96 E/R analysis software enhances data reliability with functions such as absolute and relative quantitative analysis, SNP analysis, and melting curve analysis.
Market Price
The Real-time PCR System is competitively positioned in the market. Generally, high-end real-time PCR machines range from $8,800 to $9,600 USD, reflecting their robust functionality and reliability. To learn more about our latest pricing and promotions, request a quote through our Kalstein Plus platform.
Frequently Asked Questions
What is the sample capacity of the YR01869? This system can handle up to 96 samples in a single run, optimizing laboratory workflow.
How does the power failure protection work? The YR01869 will automatically recover and continue the experiment if a power failure occurs, ensuring experiment integrity.
Can the system be controlled via a PC? Yes, it offers a dual control mode with a 10.4-inch touch screen and PC direct control.
Advantages and Disadvantages
Advantages: High throughput efficiency, robust temperature control, user-friendly interface, versatile analysis software.
Disadvantages: Initial cost might be high for some labs, and it may require specific training for optimal use.
Product Use in the Field
The Real-time PCR System YR01869 is ideal for laboratories conducting a wide range of PCR applications. Whether performing diagnostics, research, or SNP analysis, this device provides precise and rapid results, making it invaluable for time-sensitive projects.
Recommendations
For optimal performance, ensure that the system is placed in a stable environment with minimal temperature fluctuations. Regularly calibrate and maintain the instrument following the manufacturer’s guidelines to extend its lifespan and maintain accuracy.
Features
- Rapid scanning of 96 samples within 7 seconds.
- Efficient Peltier-based temperature control.
- Automatic recovery after power failures.
- Dual control options: touch screen and PC.
- Comprehensive data analysis functions with Gentier 96 E/R software.
Technical Specifications
| Model | YR01869 |
| Throughput | ene-96 |
| Fluorescence Channels | 6 |
| Fluorescence Scanning Time | 7s |
| Dye Compatibility | Channel 1: FAM, SYBR Green I , SYTO 9, Eva Green, LC Green |
| Channel 2: HEX, VIC, TET, JOE | |
| Channel 3: ROX, Texas Red | |
| Channel 4: Cy5 | |
| Channel 5: Alexa Fluor 680 | |
| Channel 6: FRET | |
| Optical System | |
| Light Source | High-brightness, long life and maintenance-free LED light source,excitation from the top |
| Detector | Photodiodes (PDs), top scanning |
| Excitation Range | CH1: 465nm CH2:527nm CH3:580nm CH4:632nm CH5:680nm CH6:465nm |
| Detection Range | CH1: 510nm CH2:563nm CH3:616nm CH4:664nm CH5:730nm CH6:616nm |
| Fluorescence Dynamic Range | Adjustable |
| Sample Dynamic Range | From 101 to 1010copies |
| Thermal Black | |
| Heating Method | Peltier |
| Heating Rate | >6.1 ℃/s |
| Cooling Rate | >5.0 ℃/s |
| Temperature Uniformity | ±0.1 ℃ |
| Temperature Accuracy | ≤0.1 ℃ |
| Gradient Range | 1℃-40 ℃ |
| Gradient Block | 12 row |
| Special Temperature Protocol | Thermal gradients PCR, long PCR, Touch Down PCR |
| Sample Testing Linearity and Repeatability | Linear correlation: /r/ ≥ 0.999 |
| Repeatability: cycle threshold (Ct) value CV≤0 0.5% | |
| Software Functions | |
| Control Modes | Model 1: 10.4 inch touch screen |
| Mode 2: PC direct control | |
| Power Failure Protection | Automatically start running experiments after power supply, no need to wait PC software |
| Data Storage and Transmission | Upload and download through USB disk. 1000 results can be stored in machine |
| Reporting Function | Templates reserved; customized experiment report |
| Key Applications | Relative quantification, absolute quantification, melting curve analysis ,SNP analysis |
| Others | |
| Operating System for PC | Win7/Win10/Win11 |
| Power Supply and Power Consumption | AC 100-240V,50-60HZ, 900VA |
| Weight | 30 Kg (net) |
| Instrument Dimension | 555*475*484mm (W*L*H) |
| Suitable Consumables | 0.2mL 96-well plates, 8-tube strips, single tubes(clear, frosted and white). |
