Description

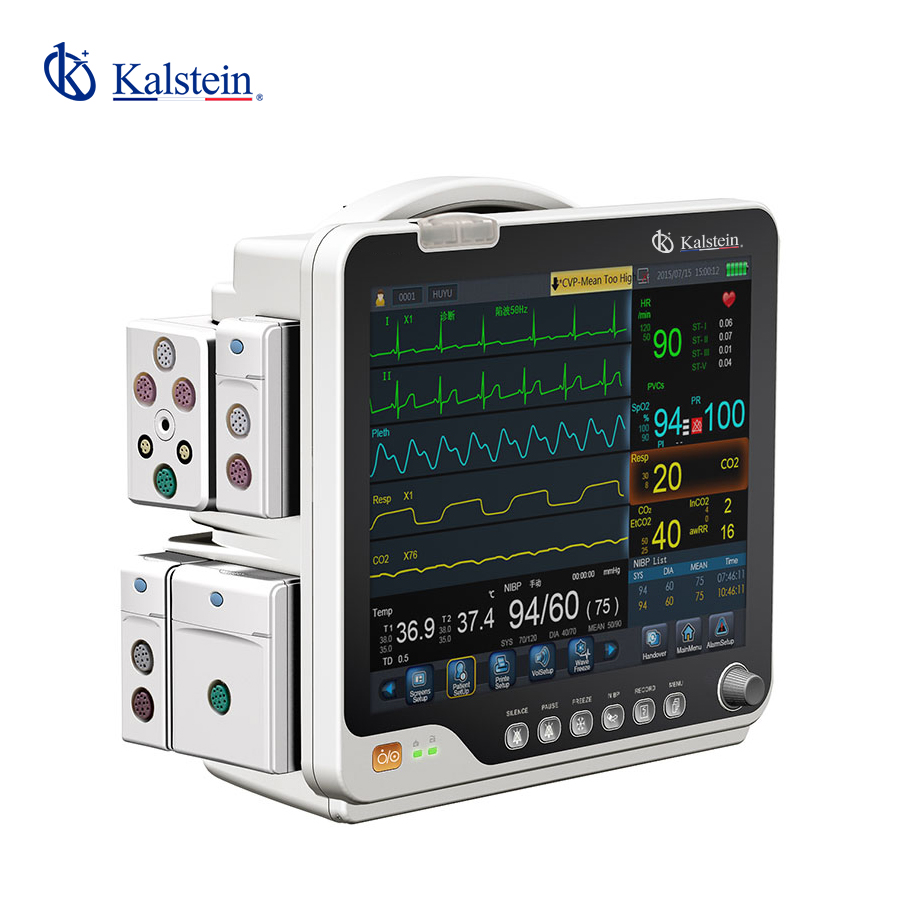

The Patient Monitors YR02176 is an advanced medical device tailored to the rigorous demands of critical healthcare settings such as Operating Theaters (OT) and Intensive Care Units (ICU). This cutting-edge patient monitor features a 15-inch LCD screen along with a modular parameter configuration, providing comprehensive and customizable patient data. Its standard monitoring capabilities include ECG, SPO2, TEMP, NIBP, RESP, and PR/HR, with optional enhancements like Masimo/Nellcor SpO2, Dual-IBP, and EtCO2. The YR02176 is a versatile tool designed to adapt to diverse medical requirements, emphasizing optimal patient safety.
Market Price
In today’s competitive healthcare technology market, investing in reliable patient monitoring solutions is crucial. Products like the YR02176 are typically priced between $4,000 and $6,000 USD, reflecting their sophisticated technology and dependable features. For an exact quote, visit our Kalstein Plus platform to request detailed pricing information tailored to your needs.
Frequently Asked Questions
Which healthcare facilities benefit from the Patient Monitor YR02176?
This monitor is ideal for high-dependency units, operating rooms, and intensive care units where continuous patient supervision is vital.
Is the YR02176 portable?
Yes, with its flexible mounting options such as a trolley or wall mount, the YR02176 is adaptable to various settings within a hospital environment.
Advantages and Disadvantages
The YR02176’s primary advantage is its modular design, allowing healthcare providers to customize the device to specific clinical requirements. It offers reliable accuracy in monitoring vital signs, crucial for ensuring patient safety. However, its advanced features may result in a complex initial setup for some users; thus, proper training is recommended to fully exploit its capabilities.
Field Application
The Patient Monitor YR02176 is instrumental in critical care settings, providing continuous monitoring of patient vital signs. This real-time data empowers medical teams to make informed decisions quickly, significantly enhancing patient care quality. Its durable construction and extensive feature set make it indispensable in high-pressure scenarios.
Recommendations
To ensure the efficiency and accuracy of the YR02176, regular maintenance and calibration are highly recommended. Given its extensive customization options, initial staff training can enhance its daily practical utility. Always refer to the manual for detailed configuration guidance. For more information and to request a quote, visit the Kalstein Plus platform.
Features
- 15-inch LCD screen
- Modular parameter configuration
- Standard monitoring: ECG, SPO2, TEMP, NIBP, RESP, PR/HR
- Options for advanced monitoring capabilities
- Flexible mounting options
- High-resolution displays
Technical Specifications
| Model | YR02176 | |
|
ECG
|
Lead mode | 5 Leads(RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 Leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Waveform | 1ch | |
| Gain | x250, x500, x1000, x2000 | |
| HR Range | Adult: 15~300bpm | |
| Neo/Ped | 15~350bpm | |
| Accuracy | ±1% or ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -2.0~+2.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
|
Heart Rate
|
Measuring range | 20~300bpm |
| Accuracy | ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200UVp-p | |
|
Respiration
|
Method | Impedance between R-F(RA-LL) |
| Differential Input Impedance | >2.5MΩ | |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Base line Impedance Range | 200~4000Ω | |
| Bandwidth | 0.1~2.5Hz | |
| Respiration Rate | Adult: 2~120BrPM | |
| Neo/Ped | 0~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
| Alarm | 10~40S | |
|
NIBP
|
Method | Oscillometric |
| Mode | Manual/Auto/STAT | |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
| Measuring Period in STAT Mode | 5 Min | |
| Pulse Rate Range | 40~240bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
| Accuracy | Maximum Mean error: 5mmHg | |
| Maximum Standard deviation | 8mmHg | |
|
SPO2
|
Display | Number of SPO2,waveform of capacity,Pulse |
| Measuring range | 0~100% | |
| Resolution | 1% | |
| Accuracy | 70~100% (±2%) | |
| Alarm system | Audio-video alarm | |
| Pulse rate range | 0~300bpm | |
|
TEMP
|
Channel | 2 |
| Measuring and Alarm Range | 0~50ºC | |
| Resolution | 0.1ºC | |
| Accuracy | 0.1ºC | |
| Actualization interval | about 1 Second. | |
| Average Time Constant | <10 Second. | |
