Multi-parameter Patient Monitor YR02177
Multi-parameter Patient Monitor YR02177 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.

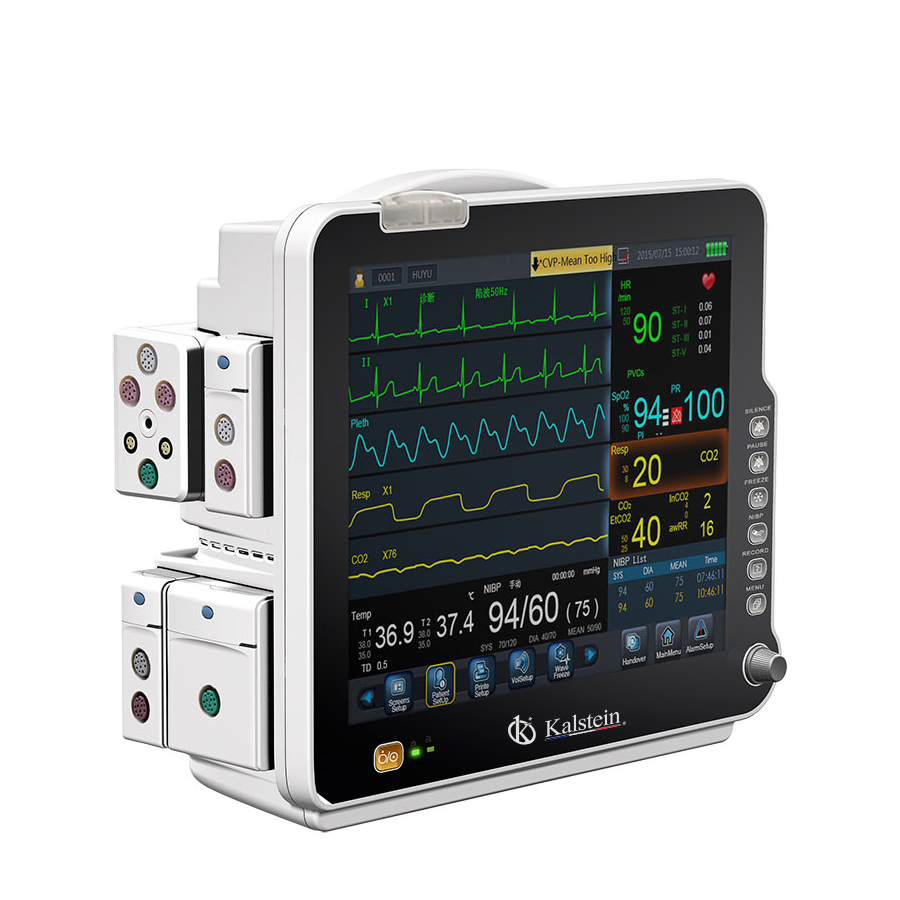

The Multi-parameter Patient Monitor YR02177 is an innovative medical device designed to deliver comprehensive patient monitoring in critical care settings such as operating theaters and intensive care units. Its robust 17-inch LCD screen and modular parameter options enable healthcare professionals to customize the monitor according to the individual needs of their patients. Standard features include ECG, SPO2, TEMP, NIBP, RESP, and PR/HR monitoring, providing vital insights into the patient's health status, ensuring early intervention and improved patient outcomes.
Market Price
In the competitive landscape of multi-parameter patient monitors, prices can vary widely. Comparable devices to the Multi-parameter Patient Monitor YR02177 are generally in the range of $4300 to $5100 USD. This range reflects the incorporation of advanced features and the use of high-quality components that ensure precise and reliable patient monitoring. For an accurate quote tailored to your specific requirements, we invite you to generate an automatic quotation through our Kalstein Plus platform.
Frequently Asked Questions
What type of patients can be monitored? This monitor is suitable for a broad range of patients, including adults, pediatric, and neonatal patients, with specific heart rate and respiration ranges for each group.
Is the device portable? Absolutely, the monitor's design allows it to be mounted on a trolley or a wall, providing versatility across different clinical environments.
Does it come with a warranty? The Multi-parameter Patient Monitor YR02177 usually comes with a manufacturer’s warranty. Please verify specific warranty details during the purchase process.
Advantages and Disadvantages
The Multi-parameter Patient Monitor YR02177 offers numerous advantages including its high accuracy, modular functionality for customizable monitoring, and a durable design suitable for intensive use. However, the initial investment might be challenging for smaller practices.
Product Usage in the Field
This monitor is extensively used in operating rooms and intensive care units where real-time data are crucial. Its capabilities in evaluating multiple physiological parameters allow medical teams to intervene early, resulting in better patient outcomes.
Recommendations
To maintain the optimal performance of the Multi-parameter Patient Monitor YR02177, regular maintenance and software updates are recommended. Ensure usage in a clean, safe environment, and always refer to the user manual for best practices. Request a quote or generate your own automatically on our Kalstein Plus platform to experience its full capabilities firsthand.
Features
- 17-inch LCD display
- Standard parameters: ECG, SPO2, TEMP, NIBP, RESP, PR/HR
- Modular design for customizable monitoring
- Optional advanced monitoring options available
- Audio-video alarm system
- Easy integration into various clinical settings
Technical Specifications
| Model | YR02177 | |
ECG | Lead mode | 5 Leads(RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 Leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Waveform | 1ch | |
| Gain | x250, x500, x1000, x2000 | |
| HR Range | Adult: 15~300bpm | |
| Neo/Ped | 15~350bpm | |
| Accuracy | ±1% or ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -2.0~+2.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
Heart Rate | Measuring range | 10~300bpm |
| Accuracy | ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200UVp-p | |
Respiration | Method | Impedance between R-F(RA-LL) |
| Differential Input Impedance | >2.0MΩ | |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Base line Impedance Range | 200~4000Ω | |
| Bandwidth | 0.1~2.5Hz | |
| Respiration Rate | Adult: 2~120BrPM | |
| Neo/Ped | 0~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
| Alarm | 10~40S | |
NIBP | Method | Oscillometric |
| Mode | Manual/Auto/STAT | |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
| Measuring Period in STAT Mode | 5 Min | |
| Pulse Rate Range | 40~240bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
| Accuracy | Maximum Mean error: 5mmHg | |
| Maximum Standard deviation | 8mmHg | |
SPO2 | Display | Number of SPO2,waveform of capacity,Pulse |
| Measuring range | 0~100% | |
| Resolution | 1% | |
| Accuracy | 70~100% (±2%) | |
| Alarm system | Audio-video alarm | |
| Pulse rate range | 0~300bpm | |
TEMP | Channel | 2 |
| Measuring and Alarm Range | 0~50ºC | |
| Resolution | 0.1ºC | |
| Accuracy | 0.1ºC | |
| Actualization interval | about 1 Second. | |
| Average Time Constant | <10 Second. | |
Technical specifications
| Dimensions | L 57 × W 39 × H 53.5 cm |
|---|---|
| Weight | 8 kg |
| Manufacturer | Kalstein |
