Grating Spectrophotometer YR05493
Grating Spectrophotometer YR05493 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Grating Spectrophotometer YR05493 is a state-of-the-art instrument designed by Kalstein for precise color measurement. Engineered with three measuring apertures—φ 8mm, φ 4mm, and 1x3mm—it offers unparalleled adaptability across industries such as plastics, electronics, paint, textiles, automotive, and more. With a remarkable optical resolution of less than 10nm in the visible range, thanks to a 1000-line precision grating as an optical splitter, this spectrophotometer ensures stable, accurate performance no matter the application. Utilizing an advanced built-in silicon photodiode array sensor and full spectrum LED light source, the YR05493 excels in delivering consistent color data, making it an essential tool for laboratories and research institutions.
Market Price
The Grating Spectrophotometer YR05493, known for its advanced features and precision, typically falls within the market price range of $8400 to $9200 USD. This competitive pricing reflects its status as a reliable and high-performance spectrophotometer that meets diverse and demanding industry standards. For more precise and personalized pricing options, it's recommended to request a quote through the Kalstein Plus platform.
Frequently Asked Questions
What industries benefit most from the YR05493 spectrophotometer? The YR05493 is widely used in industries such as plastics, textiles, automotive, and cosmetics, where precise color measurement and control are crucial.
Does the spectrophotometer require specialized training to operate? While the YR05493 is designed for user-friendly operation, professional training or guidance is advisable to fully leverage its advanced capabilities.
Advantages and Disadvantages
Advantages: The YR05493 offers excellent measurement accuracy with a delta E* AB repeatability of 0.03 and a comprehensive range of measurement apertures. It's compatible with numerous color spaces and light sources, making it versatile across industries. The device is also equipped with a camera for precise sample positioning.
Disadvantages: The initial setup and calibration process might be complex for new users, and the device may require careful handling to maintain its precision over time.
Field Use

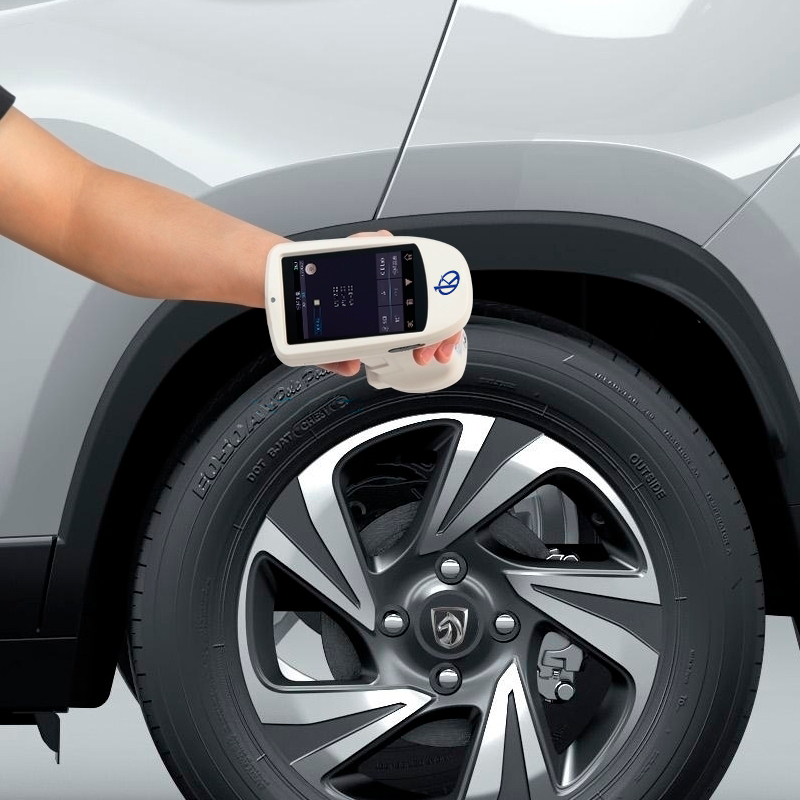

In practical scenarios, the YR05493 is invaluable for quality control and color matching in manufacturing processes. It helps ensure that color specifications for products like textiles and automotive parts are met consistently, and its ability to measure fluorescent samples expands its utility in specialized applications.
Recommendations
To maximize the utility of the YR05493, it is recommended to regularly calibrate the device using the provided white and black calibration cavities. Ensure that the spectrophotometer is stored in a stable environment, avoiding extreme temperatures and humidity levels to preserve its longevity. Utilize the Kalstein Plus platform for quick access to support and updates, enhancing your investment.
Features
The YR05493 comes equipped with a silicon photodiode array sensor for greater accuracy, a comprehensive selection of color spaces, and dual optical path systems. Its touch-screen interface and ergonomic design enhance user interaction.
Technical Specifications
| Model | YR05493 |
| Optical Geometry | D/8 (diffused illumination, 8-degree viewing angle) |
| SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source | |
| Conforms to CIE No.15, GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 | |
| Characteristic | 3 measuring apertures for accurate color analysis and transmission in laboratory |
| It is used for precise color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries, and for fluorescent sample measurement. | |
| Integrating Sphere Size | Φ40mm |
| Light Source | Combined full spectrum LED light source, UV light source |
| Spectrophotometric Mode | Flat Grating |
| Sensor | Silicon photodiode array (double row 40 groups) |
| Wavelength Range | 400~700nm |
| Wavelength Interval | 10nm |
| Semiband Width | 10nm |
| Measured Reflectance Range | 0-200% |
| Measuring Aperture | 3 apertures: MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm;LAV:1x3mm |
| LAV1x3mm: Slightly poor accuracy, can be used for color test | |
| Specular Component | SCI&SCE |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell(C/2)) |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter) |
| Other Colorimetric Index | WI(ASTM E313,CIE/ISO,AATCC,Hunter), |
| YI(ASTM D1925,ASTM 313), | |
| Metamerism Index MI, | |
| Staining Fastness, Color Fastness, Color Strength, Opacity, | |
| 8° Glossiness,555 tone classification | |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset |
| Measuring Time | About 1.5s (Measure SCI & SCE about 3.2s) |
| Repeatability | Spectral reflectance: MAV/SCI, Standard deviation within 0.08% (400 nm to 700 nm: within 0.18%) |
| Chromaticity value: MAV/SCI, within ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | |
| Inter-instrument Error | MAV/SCI, Within ΔE*ab 0.15 |
| (Average for 12 BCRA Series II color tiles) | |
| Measurement Mode | Single Measurement, Average Measurement(2-99times) |
| Locating Method | Camera Locating,stabilizer cross position |
| Dimension | L*W*H=129X76X217mm |
| Weight | Approx 600g |
| Battery | Li-ion battery, 6000 measurements within 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Displayed Data | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB, Bluetooth 4.2 |
| Data Storage | Standard 1000 Pcs, Sample 30000 Pcs |
| Language | Simplified Chinese, English, traditional Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) |

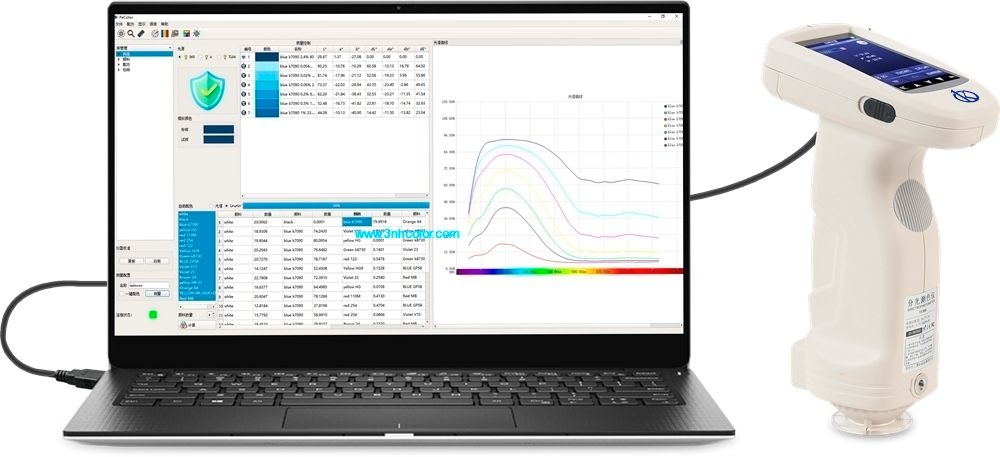

| Standard Accessory | Power Adapter, User Guide, PC Software(Download from office website), USB cable, White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture,1x3mm tip aperture |
| Optional Accessory | Micro Printer, Powder Test Box, Holding base |
| Notes | The specifications are subject to change without notice. |
Technical specifications
| Weight | 2 kg |
|---|---|
| Manufacturer | Kalstein |

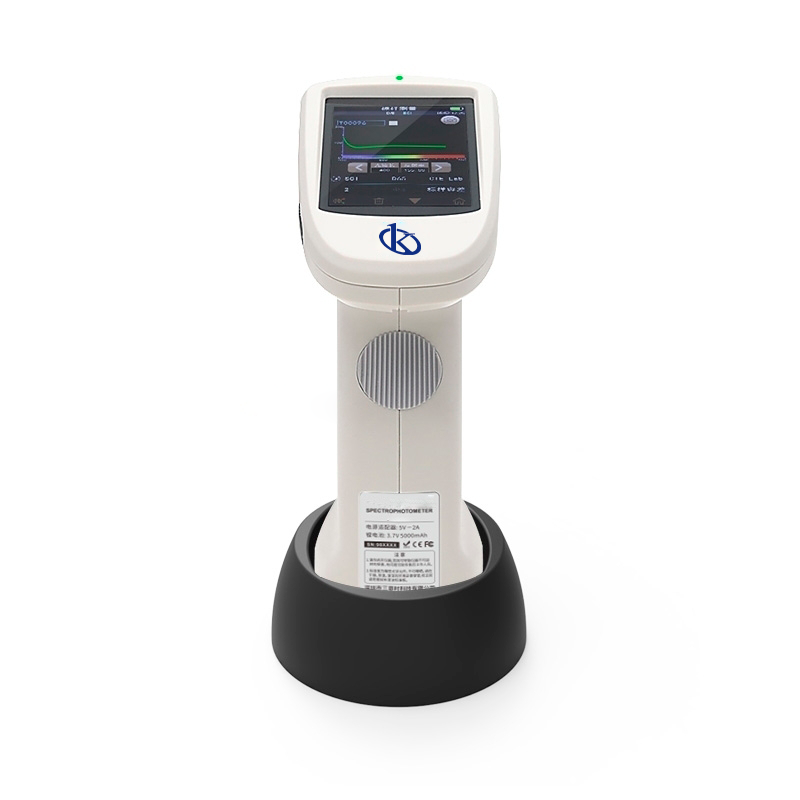

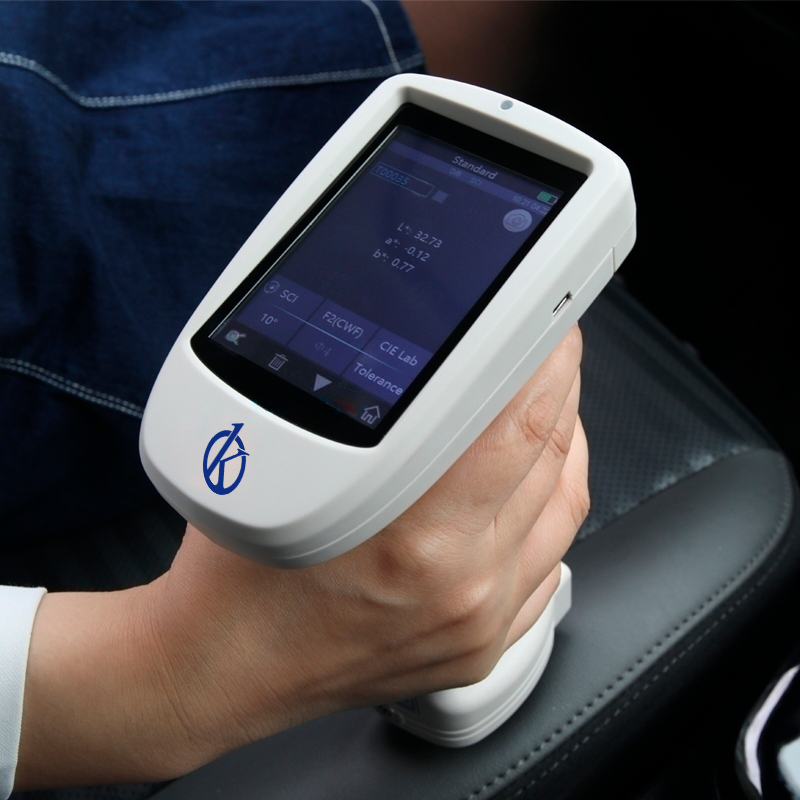

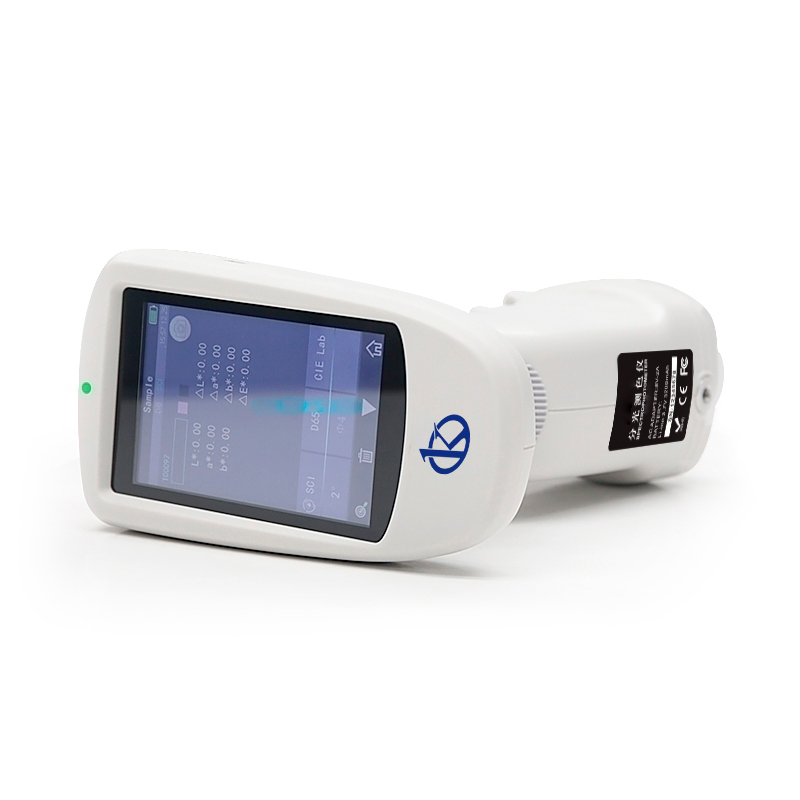

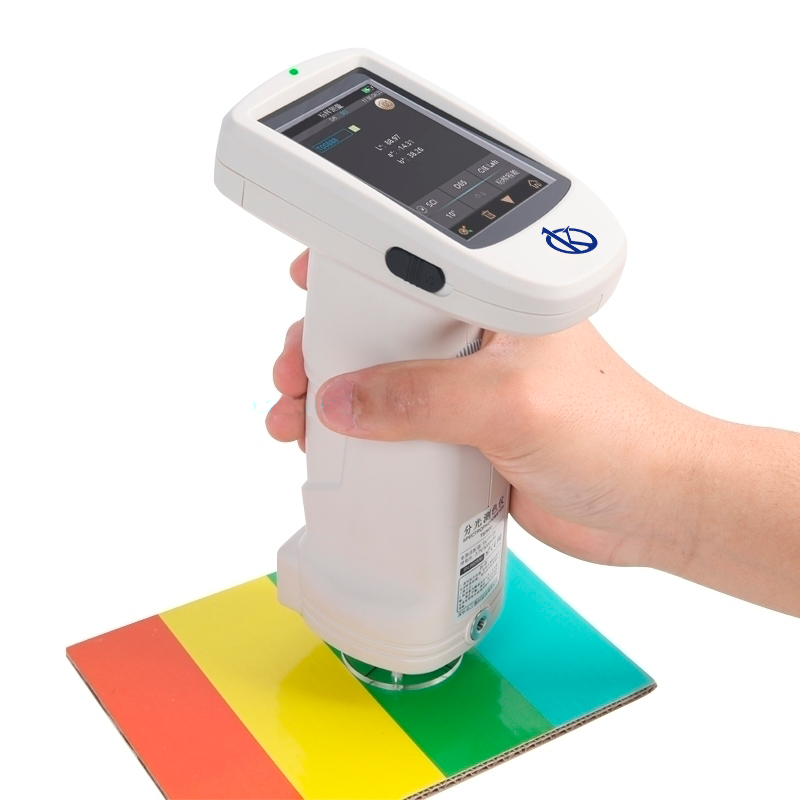

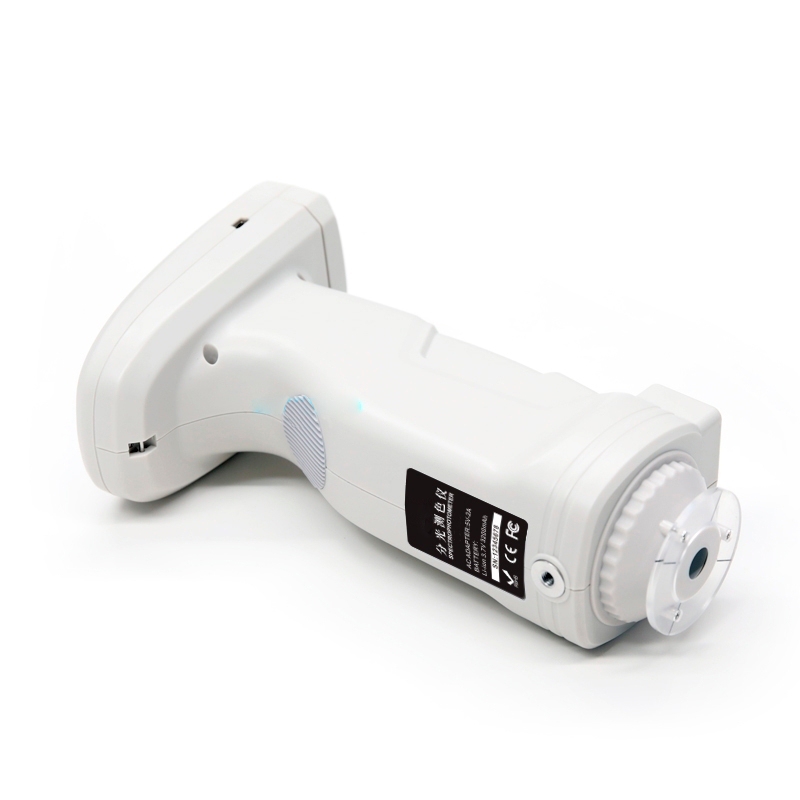

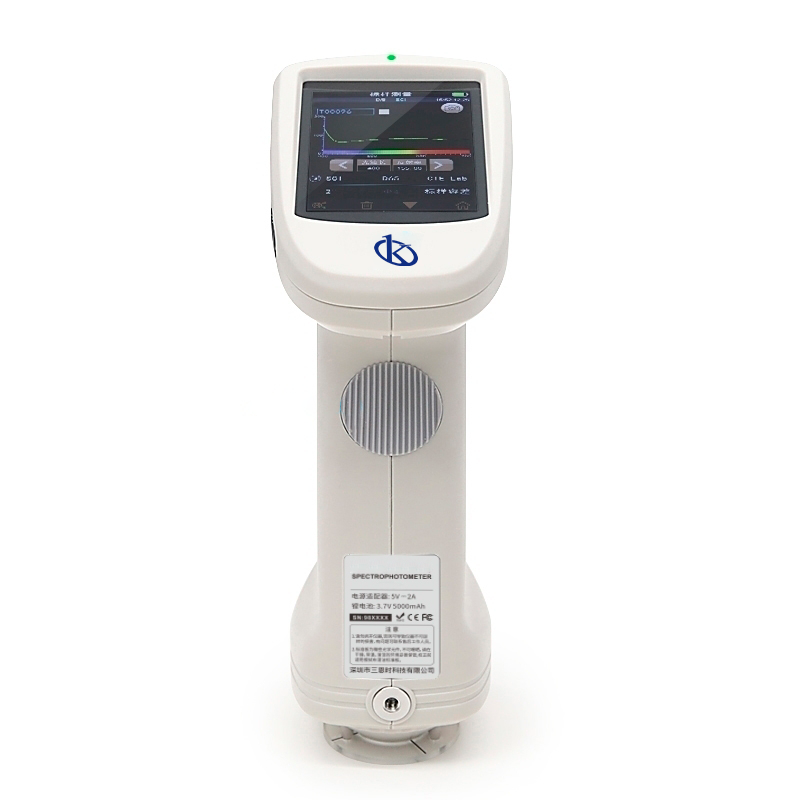

Image gallery
