Description

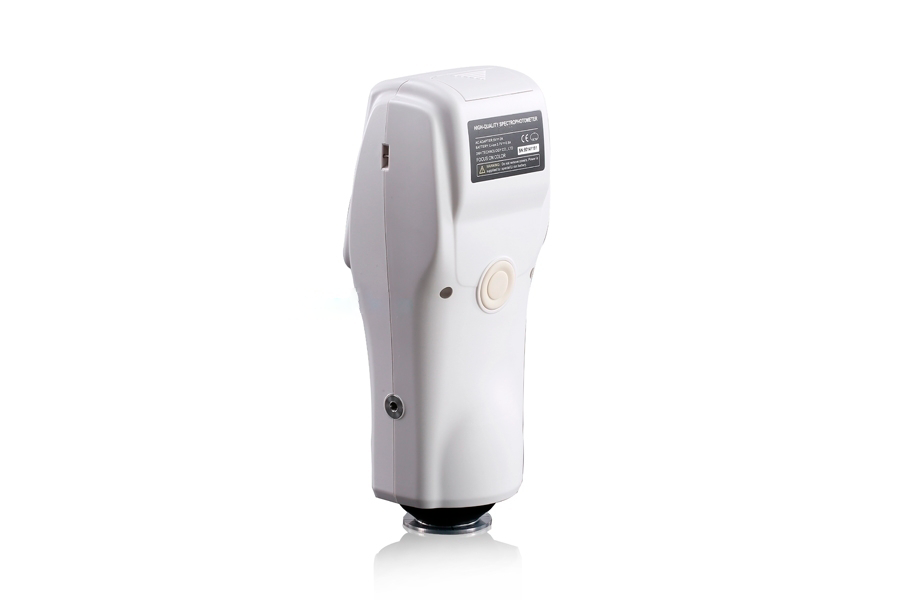

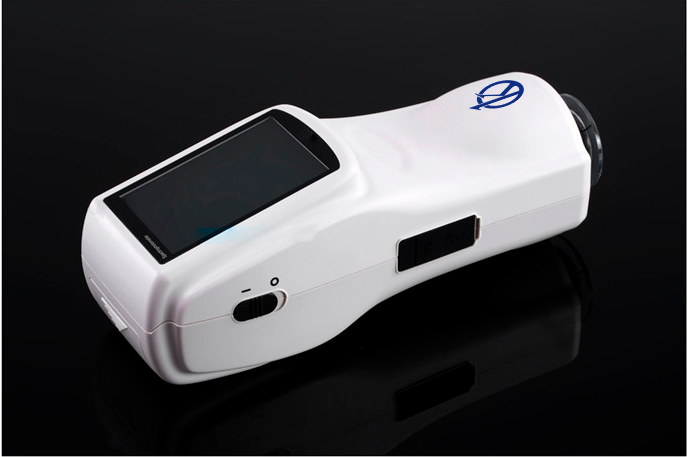

The Handheld Color Spectrophotometer YR05496 is an advanced tool designed to offer precise color measurement and management. Developed by Kalstein with proprietary technology, this spectrophotometer features a 45/0 geometrical optical structure compliant with CIE and ISO standards. Its ergonomic design and user-friendly interface make it a leading choice in its industry. The device operates within a wavelength range of 400~700nm, ensuring high accuracy with a DeltaE*ab of 0.04. Its ability to store up to 1000 standards and 15000 samples makes it an indispensable resource in fields like plastics, electronics, textiles, and more. Equipped with the SQC8 software, it offers superior color control management, meeting the demands of both industrial applications and scientific research.
Market Price
When considering purchasing a high-end handheld spectrophotometer like the YR05496, market prices vary. Generally, the cost for these sophisticated instruments ranges between $3300 and $4100. It’s important to note that these prices reflect the quality and advanced features of the device. To secure an exact price and explore potential discounts, we recommend generating a custom quote using Kalstein Plus.
Frequently Asked Questions
- What industries can benefit from the YR05496? The spectrophotometer is ideal for applications in plastics, electronics, textiles, paints, and even in medical and cosmetic industries.
- How accurate is the YR05496? It boasts a high accuracy with a DeltaE*ab of 0.04, ensuring precise color measurements.
- Is it portable? Yes, with its handheld design and a weight of only 600g, it’s highly portable and convenient for on-site measurements.
Advantages and Disadvantages
Advantages: The YR05496 offers industry-leading accuracy, a large data storage capacity, and compatibility with powerful software for extended functionalities. It also complies with international standards such as CIE, ISO, and ASTM.
Disadvantages: As with many advanced instruments, there is a learning curve to fully utilize its features. Additionally, the upfront cost might be a consideration for smaller operations.
Product Use in the Field
In the field, the YR05496 spectrophotometer excels in environments ranging from laboratories to industrial production lines. Its ergonomic design and lightweight construction make it convenient for users who need to take precise measurements on the go, whether ensuring color consistency on a textile line or confirming the color quality in a batch of plastics.
Recommendations

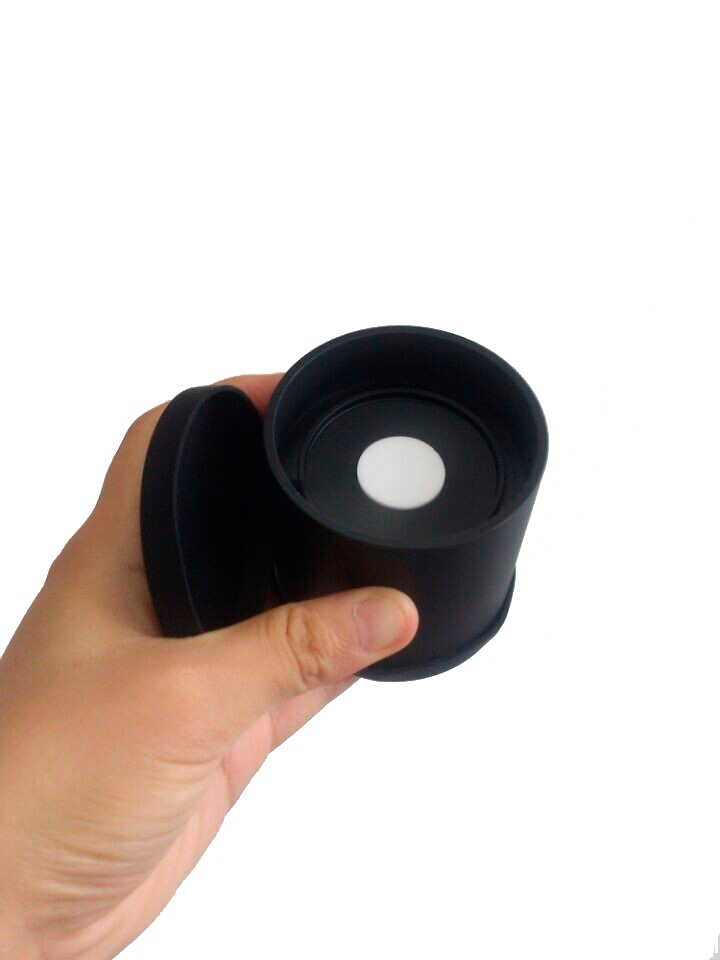

To maximize the lifespan and accuracy of your YR05496 spectrophotometer, regular calibration with the included white and black calibration cavity is recommended. Keeping the device clean and storing it in the protective cover can prevent damage. For users needing detailed reports, connecting the device to a PC using the USB/RS-232 interface and utilizing the included management software can expand your data analysis capabilities.
Features

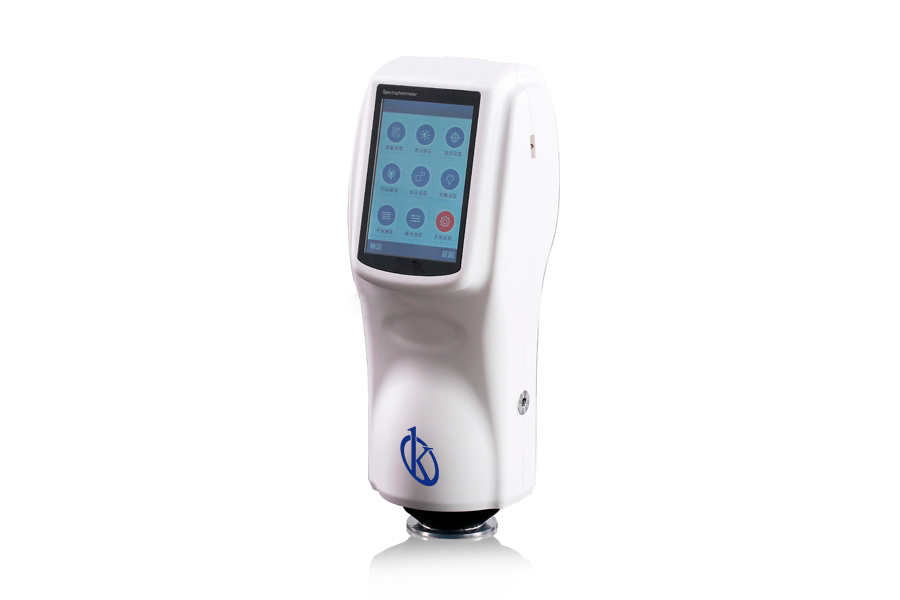

- Ergonomic design with a large 3.5-inch touch screen.
- Dual standard observer perspectives and multiple light source modes.
- High repeatability with a DeltaE*ab within 0.04.
- Extensive data storage capacity.
- Advanced software for enhanced color management capabilities.
Technical Specifications
|
Model |
YR05496 |
|
Illumination/observation system |
45/0 method (45 ring-shaped illumination, vertical viewing) Comply with CIE No.15，GB/T 3978. |
|
Integrating sphere Size |
Φ58mm |
|
Light Source |
combined LED sources |
|
Sensor |
Silicon photodiodearray |
|
Wavelength range |
400~700nm |
|
Wavelength pitch |
10nm |
|
Reflectance range |
0~100% |
|

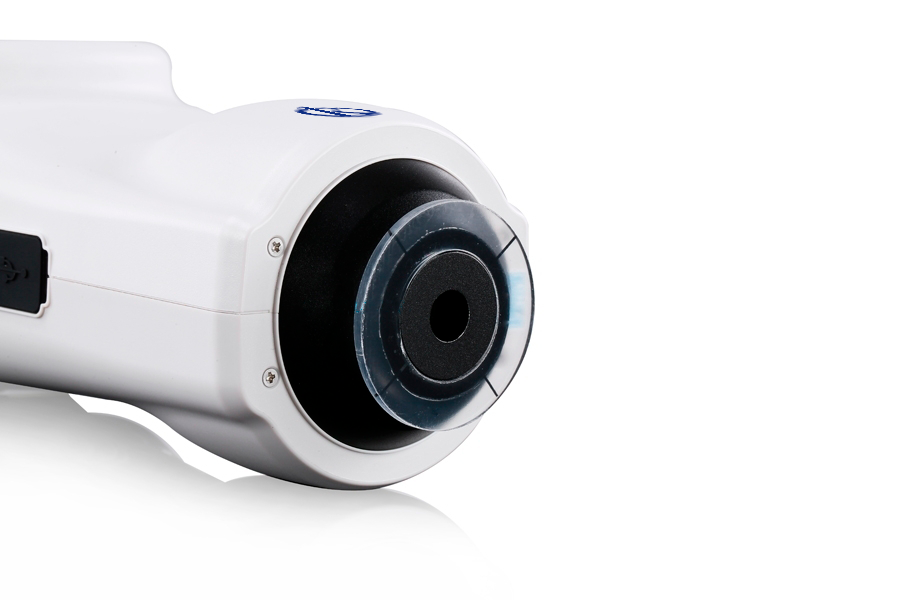

Measuring Aperture |
Φ8mm |
|
Color Space |
CIE LAB,XYZ,Yxy,LCh,CIE LUV |
|
Color difference Formula |
ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00 v |
|
Other Chromaticity Data |
Whiteness – WI(ASTM E313，CIE/ISO,AATCC,Hunter)， Yellowness-YI(ASTM D1925，ASTM 313), TI(ASTM E313，CIE/ISO), Metamerism Index (Mt) Colour Stain, Color Fastness, Color Strength, Opacity |
|
Observer |
2°/10° |
|
Illuminant |
D65,A,C,D50,D55,D75,F2,F6,F7,F8,F10,F11,F12 |
|
Display Data |
Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation |
|
Measurement Time |
1.5s |
|
Repeatability |
Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%) Colorimetric Value: Standard deviation within DeltaE*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.) |
|
Inter Instrument Agreement |
Within DeltaE*ab 0.2 (Average for 12 BCRA Series II color tiles) |
|
Dimension |
L*W*H=90*77*230mm |
|
Weight |
600g |
|
Battery |
Li-ion battery. 5000 times within 8 hours. |
|
Lamp Life |
5 years, more than 1.6 million measurements |
|
Display Screen |
TFT 3.5inch, Capacitive Touch Screen |
|
Interface |
USB/RS-232 |
|
Data Memory |
1000 Standards, 10000 Samples |
|
Operating Temperature |
0~40℃(32~104°F) |
|
Storage temperature |
-20~50℃(-4~122°F) |
|
Standard Accessory |
Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap |
|
Optional Accessory |
Micro Printer, Powder Test Box |
|
Notes |
The specifications are subject to change without notice. |
