Description

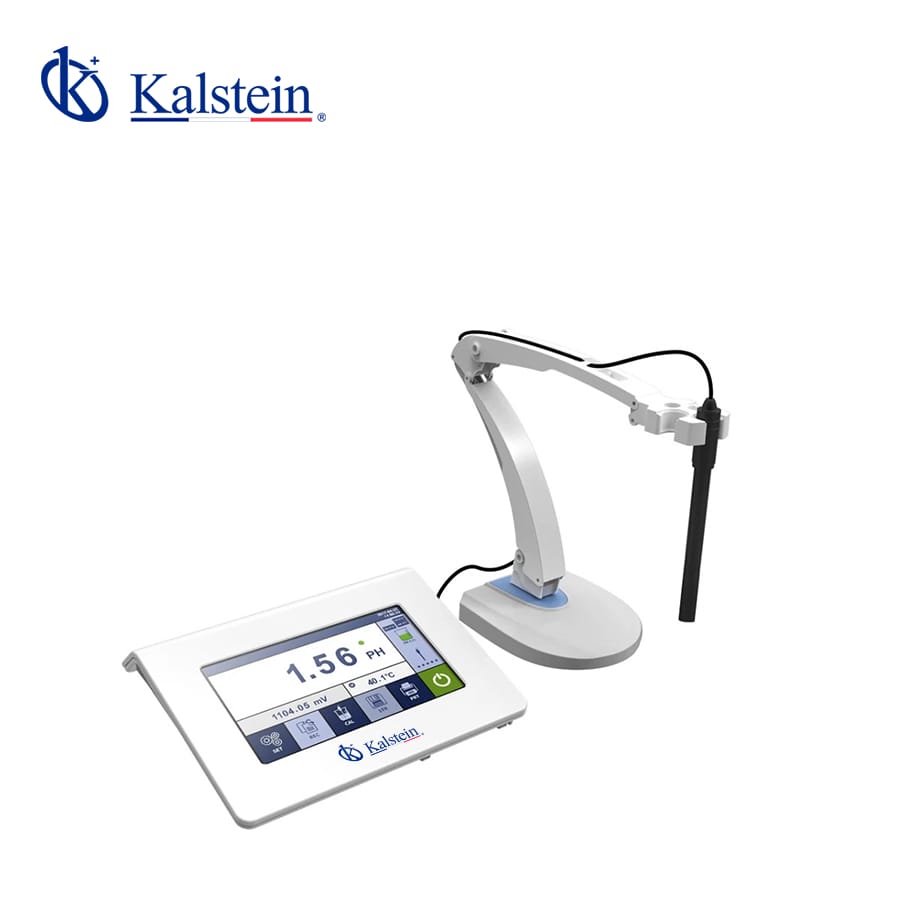

The Benchtop pH/Conductivity/DO Meter YR06385 is a state-of-the-art instrument designed to offer precise measurement capabilities combined with user-friendly functionality. Equipped with a 7-inch colored capacitive touch screen, it delivers high resolution and sensitivity for optimal user interaction. The device is powered by an intelligent microprocessor chip, which provides features such as automatic calibration, automatic temperature compensation (ATC), data storage, and more. Compatibility with Bluetooth allows for real-time data transfer to mobile devices, enhancing versatility in various laboratory and field settings.
Market Price
The market price for advanced benchtop meters of this caliber typically ranges from $1,500 to $2,300 USD. It’s an investment towards precision and reliability, making it an optimal choice for laboratories requiring consistent and accurate measurements in pH, conductivity, and dissolved oxygen.
Frequently Asked Questions
- What is the maximum data storage capacity? The meter can store up to 2,000 sets of test data.
- Is Bluetooth printing supported? Yes, the device supports wireless Bluetooth printing.
- What is the warranty period for this product? The standard warranty period is typically one year.
Advantages and Disadvantages
Advantages: The YR06385 boasts high precision and multi-parameter measuring modes, allowing it to cater to a wide array of applications. The smart electrode status display ensures reliable readings, while wireless connectivity enhances convenience.
Disadvantages: The device requires a stable power source and isn’t designed for portable use outside of a benchtop setting.
Field Applications
This meter is widely utilized in laboratory environments across industries such as pharmaceuticals, environmental monitoring, and food & beverage. Whether testing water quality or analyzing chemical solutions, the YR06385 provides accurate readings essential for research and quality control.
Recommendations
To maximize the lifespan and functionality of the YR06385, regular calibration and maintenance are advised. Utilize the automatic calibration feature to ensure accurate results. When not in use, store the electrodes properly to prevent damage.
Features
- High-resolution 7-inch touch screen interface
- Advanced multi-parameter measuring functions
- Support for wireless data transfer and printing
- Large data storage capabilities with USB transfer options
Technical Specifications
| Model | YR06385 | |
|
pH
|
Measurement range | (-1.999 ~ 19.999)pH |
| Resolution | 0.1/0.01/0.001 pH | |
| Accuracy | Electrode: ±0.002 pH, Meter: ±0.01 pH | |
| Input current | ≤1×10-12 A | |
| Input impedance | ≥3×1012 Ω | |
| Stability | ±0.002 pH/3h | |
| Temperature compensation | (0 ~ 100)ºC, auto or manual | |
|
mV
|
Measurement range | -1999.9mV ~ 0 ~ 1999.9mV |
| Resolution | 0.1 mV | |
| Accuracy | ±0.03% FS | |
|
Conductivity
|
Measuring range
|
Conductivity: |
| (0.00~20.00)μS/cm | ||
| (20.0~200.0)μS/cm | ||
| (200~2000)μS/cm | ||
| (2.00~20.00)mS/cm | ||
| (20.0~200.0)mS/cm | ||
| (200~2000)mS/cm(K=10) | ||
| TDS:(0 ~ 100)g/L | ||
| Salinity:(0 ~ 100)ppt | ||
| Resistivity:(0 ~ 100)MΩ·cm | ||
| Resolution | 0.01/0.1/1μS/cm; 0.01/0.1mS/cm | |
| Accuracy | Electrode: ±0.5% FS, Meter: ±0.8% FS | |
| Temp. compensation range | (0 ~ 50)ºC, auto | |
| Electrode constant | 0.1/0.5/1/5/10/50/100 cm-1 | |
| Reference Temp. | 25ºC,20ºC,18ºC | |
|
DO
|
Measuring range | (0 ~ 20.00)mg/L(ppm) (0 ~ 200.0)% |
| Resolution | 0.1/0.01 mg/L(ppm) 1/0.1 % | |
| Accuracy | Electrode: ±0.10 mg/L, Meter: ±0.40 mg/L | |
| Response time | ≤30s (25ºC, 90%response) | |
| Residual current | ≤0.1 mg/L | |
| Temp compensation | (0 ~ 45)ºC (automatic) | |
| Salinity compensation | (0 ~ 45) ppt (automatic) | |
| Pressure compensation | (80 ~ 105) kPa (automatic) | |
| Automatic calibration | Air saturated by water; water saturated by air | |
| Electrode type | Polarographic | |
|
Temperature
|
Range | (-10 ~ 110)ºC |
| Resolution | 0.1ºC | |
| Accuracy | 5 ~ 60ºC:±0.4ºC Others: ±0.8ºC | |
|
Other Parameters
|
Display | 7-inch colored capacitive touch screen |
| Data storage | 2000 sets | |
| Power | 12V (110-220, 50-60Hz adapter) | |
| Communication interface | USB, RS232, Bluetooth | |
| Dimensions&Weight | 240×170×70mm/600g | |
|
Working Conditions
|
Temperature | 15 ~ 30 ºC |
| Humidity | ≤85% | |
| IP grade | IP54 | |
