Description

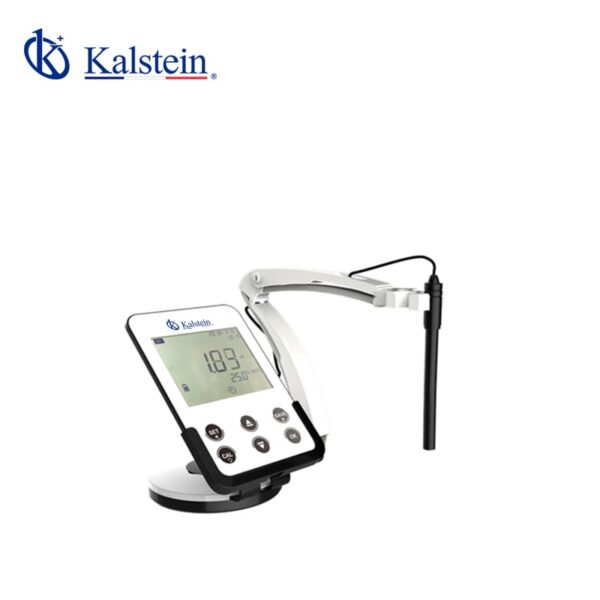

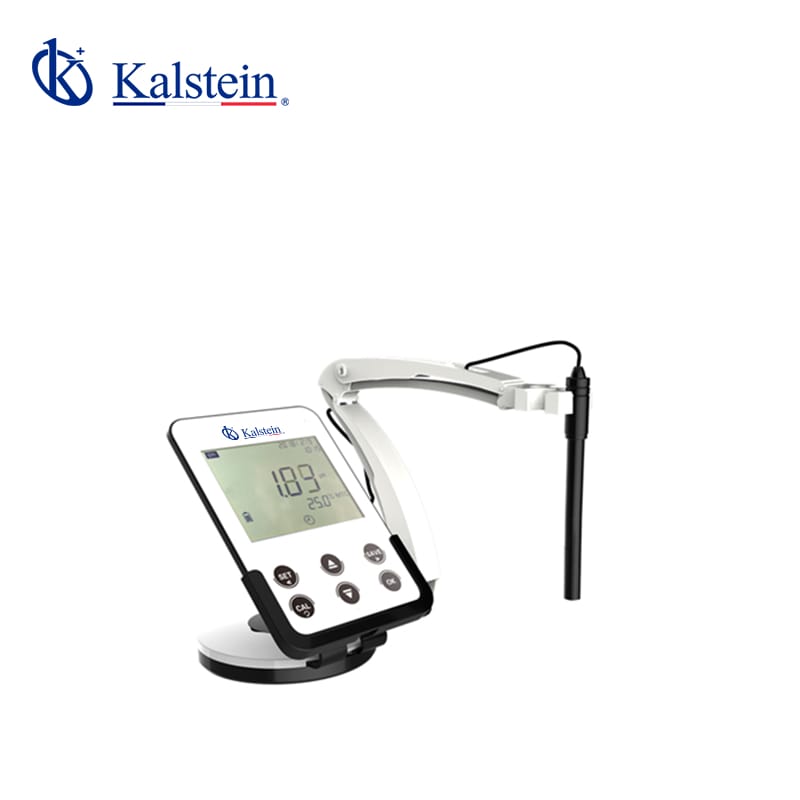

The Benchtop DO / Conductivity Meter YR01837 is a cutting-edge scientific instrument designed for precise measurement of dissolved oxygen and conductivity in various solutions. Featuring a 6.5-inch LED screen with a user-friendly interface, this meter is equipped with a microprocessor chip that offers intelligent functions such as automatic calibration and temperature compensation. It supports wireless Bluetooth printing, enabling real-time data transfer to mobile devices. With the capability to store up to 1000 sets of test data, which can be exported to a USB memory stick and opened with Excel, this meter ensures efficient data management. Its advanced conductivity measurement technology can accurately measure ranges from 0.5 μS/cm to 200 mS/cm, making it ideal for professional laboratory use. Take advantage of our platform, Kalstein Plus, to request a quote or generate an automatic quotation today!
Market Price Range
The Benchtop DO / Conductivity Meter YR01837 is competitively priced in the market. Generally, similar high-precision instruments have a price range that falls between $500 and $800 USD, depending on additional features and specifications. This positions the YR01837 as a cost-effective option for laboratories seeking reliable and accurate measurements without exceeding budget constraints.
Frequently Asked Questions
Q: Does the meter support temperature compensation?
A: Yes, the meter features automatic temperature compensation ranging from 0 to 50ºC.
Q: Can the data be transferred to other devices?
A: Absolutely, data can be transferred via USB or Bluetooth to other devices for further analysis.
Advantages and Disadvantages
Among the main advantages, the Benchtop DO / Conductivity Meter YR01837 offers precise and rapid measurements, ease of use with its intuitive interface, and robust data management capabilities. However, it is essential to regularly calibrate the device to maintain its accuracy over time, which could be seen as a disadvantage by users seeking a more plug-and-play solution.
Product Usage in the Field
The YR01837 is widely used in laboratories and research settings for monitoring water quality, analyzing chemical solutions, and conducting environmental testing. Its high precision and versatility make it suitable for both routine measurements and research-level investigations.
Recommendations
To maximize the lifespan and accuracy of the YR01837, it is recommended to regularly check and calibrate the electrodes, particularly if the device is used in variable conditions. Ensure that the device is stored in an environment within the specified ambient temperature (5 to 35 ºC) and humidity (<85%).
Features
- 6.5-inch LED screen for easy viewing
- Wireless Bluetooth printing and USB/RS232 output
- Intelligent functions including automatic calibration and self-diagnosis
- Capable of storing up to 1000 sets of data
- Auto recognition of 8 conductivity standard solutions
Technical Specifications
| Model | YR01837 | |
|
Cond.
|
Measuring range
|
Conductivity: |
| (0.00~20.00)μS/cm, (20.0~200.0)μS/cm | ||
| (200~2000)μS/cm, (2.00~20.00)mS/cm | ||
| (20.0~200.0)mS/cm, | ||
| (200~2000)mS/cm (K=10) | ||
| TDS:(0 ~ 100)g/L | ||
| Salinity:(0 ~ 100)ppt | ||
| Resistivity:(0 ~ 100)MΩ·cm | ||
| Resolution | 0.01/0.1/1μS/cm; 0.01/0.1mS/cm | |
| Accuracy | Electrode: ±0.5% FS, Meter: ±0.8% FS | |
| Temp. compensation | (0 ~ 50)ºC, auto | |
| Electrode constant | 0.1 / 1 / 10 cm-1 | |
| Reference Temp. | 25ºC,20ºC,18ºC | |
|
Temp.
|
Measuring range | (0 ~ 100)ºC |
| Resolution | 0.1ºC | |
| Accuracy | 5 ~ 60ºC:±0.4ºC Others: ±0.8ºC | |
|
Other
|
Display | 6.5-inch LED screen |
| Data storage | 1000 sets | |
| Power | 12V/1A | |
| Output | USB, RS232, Bluetooth | |
| Ambient Temp. | 5 ~ 35 ºC | |
| Ambient Humidity | ≤85% | |
| IP grade | IP54 | |
| Dimensions/N.W. | 240×170×70mm/600g | |
| Shipping Size/G.W. | 470x430x85mm/2.6kg | |
