Bedside Monitor YR02173
Bedside Monitor YR02173 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.

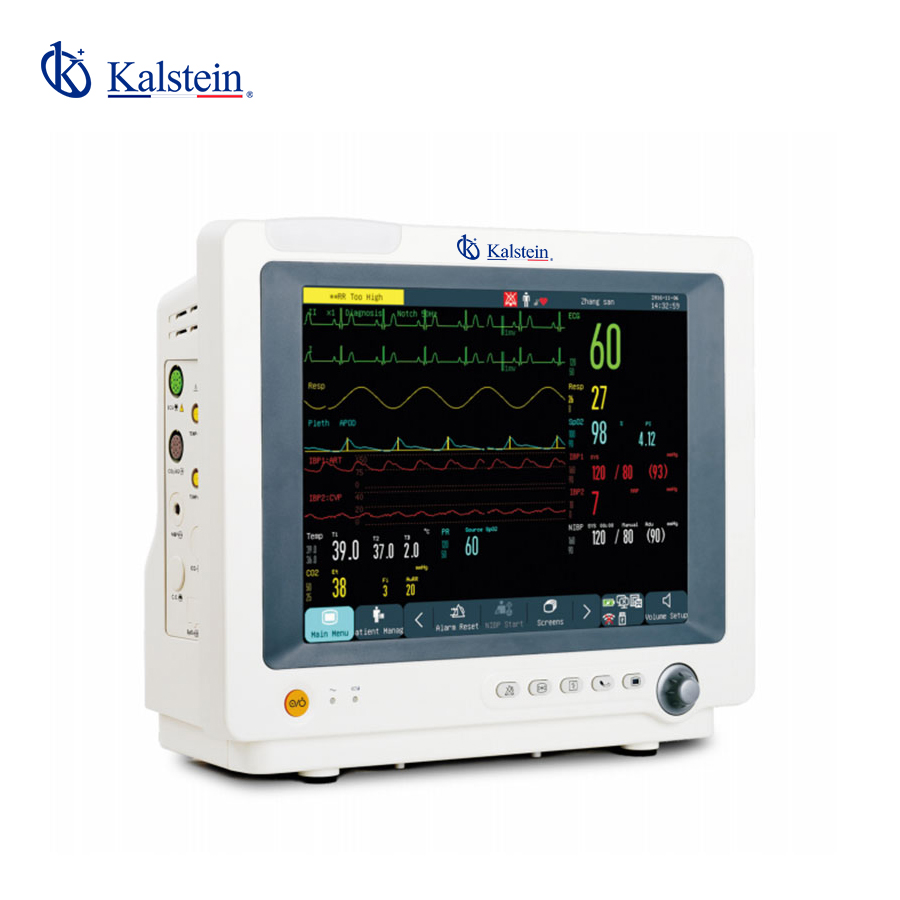

The Bedside Monitor YR02173 is a state-of-the-art patient monitoring device designed to elevate the standards of healthcare settings. Featuring a 12.1-inch touch screen, this monitor provides a highly customizable interface for precision in patient care. Equipped with advanced functionalities such as a 5-lead ECG, RESP, temperature measurements, and COMEN SpO2, it plays a vital role in medical diagnostics. With versatile compatibility for additional modules like Dual-IBP and EtCO2, its adaptability ensures healthcare professionals can rely on it for comprehensive and robust patient monitoring.
Market Price Range
The market for high-quality bedside monitors like the Bedside Monitor YR02173 generally falls between 2000 USD and 2700 USD. Although this represents a significant investment, the advanced features and sturdy design justify the outlay, offering excellent value for money. For personalized pricing options and to explore how this essential tool can fit within your budget, we invite you to request a quote through Kalstein Plus.
Frequently Asked Questions
What size is the display on the Bedside Monitor YR02173? The device comes with a 12.1-inch touch screen.
Is the Bedside Monitor YR02173 portable? Yes, it is designed to be mounted on a trolley or wall for various clinical environments.
Does the monitor support additional advanced modules? Absolutely. It supports a variety of modules including Dual-IBP, EtCO2, AG, ICG, among others.
Advantages and Disadvantages
The Bedside Monitor YR02173 offers substantial advantages like precise data monitoring, versatility in its use settings, and an intuitive interface that simplifies operations. One potential downside is that you need to make sure any compatible modules and accessories are properly integrated, which might involve extra time and costs for setup and installation.
Usage in the Field
This monitor is an invaluable tool in intensive care units where constant and detailed monitoring is essential. Its capacity to support multiple monitoring channels alongside flexible mounting options makes it suitable for not just large hospitals but also smaller clinics. By providing clinicians with real-time information, it enhances the capability for prompt and efficient patient care.
Recommendations
To ensure the Bedside Monitor YR02173 performs optimally, schedule regular software updates and maintenance checks. When incorporating additional modules, it's advisable to consult with technical support to guarantee proper installation and functioning. Furthermore, organizing regular training workshops for staff can help you get the most from this sophisticated monitoring equipment.
Features
- 12.1-inch touch screen
- 5-lead ECG, RESP, Single Channel Temp, COMEN SpO2, NIBP, HR
- Support for Dual-IBP, EtCO2, AG, ICG, C.O., BIS
- Optional Nellcor/Masimo SpO2, 3/12-lead ECG, Thermal Recorder
- Dual-Temp, Suntech NIBP, Trolley, Wall mount options
Technical Specifications
| Model | YR02173 | |
ECG | Lead mode | 5 Leads(RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 Leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Waveform | 1ch | |
| Gain | 1.25, 2.5, 5.0, 10, 20, 40mm/mV, Auto. | |
| HR Range | Adult: 15~300bpm | |
| Neo/Ped | 15~350bpm | |
| Accuracy | ±1% or ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -2.0~+2.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
Heart Rate | Measuring range | 15~300bpm |
| Accuracy | ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200UVp-p | |
Respiration | Method | Impedance between R-F(RA-LL) |
| Differential Input Impedance | >2.5MΩ | |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Base line Impedance Range | 200~4000Ω | |
| Bandwidth | 0.1~2.5Hz | |
| Respiration Rate | Adult: 2~120BrPM | |
| Neo/Ped | 0~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
| Alarm | 10~40S | |
NIBP | Method | Oscillometric |
| Mode | Manual/Auto/STAT | |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
| Measuring Period in STAT Mode | 5 Min | |
| Pulse Rate Range | 40~240bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
| Accuracy | Maximum Mean error: 5mmHg | |
| Maximum Standard deviation | 8mmHg | |
SPO2 | Display | Number of SPO2,waveform of capacity,Pulse |
| Measuring range | 0~100% | |
| Resolution | 1% | |
| Accuracy | 60~100% (±2%) | |
| Alarm system | Audio-video alarm | |
| Pulse rate range | 0~300bpm | |
TEMP | Channel | 2 |
| Measuring and Alarm Range | 0~50ºC | |
| Resolution | 0.1ºC | |
| Accuracy | 0.1ºC | |
| Actualization interval | About 1 Second. | |
| Average Time Constant | <10 Second. | |
Technical specifications
| Dimensions | L 41 × W 28 × H 36 cm |
|---|---|
| Weight | 5.5 kg |
| Manufacturer | Kalstein |
