Veterinary Syringe Pump YR06185
Veterinary Syringe Pump YR06185 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.

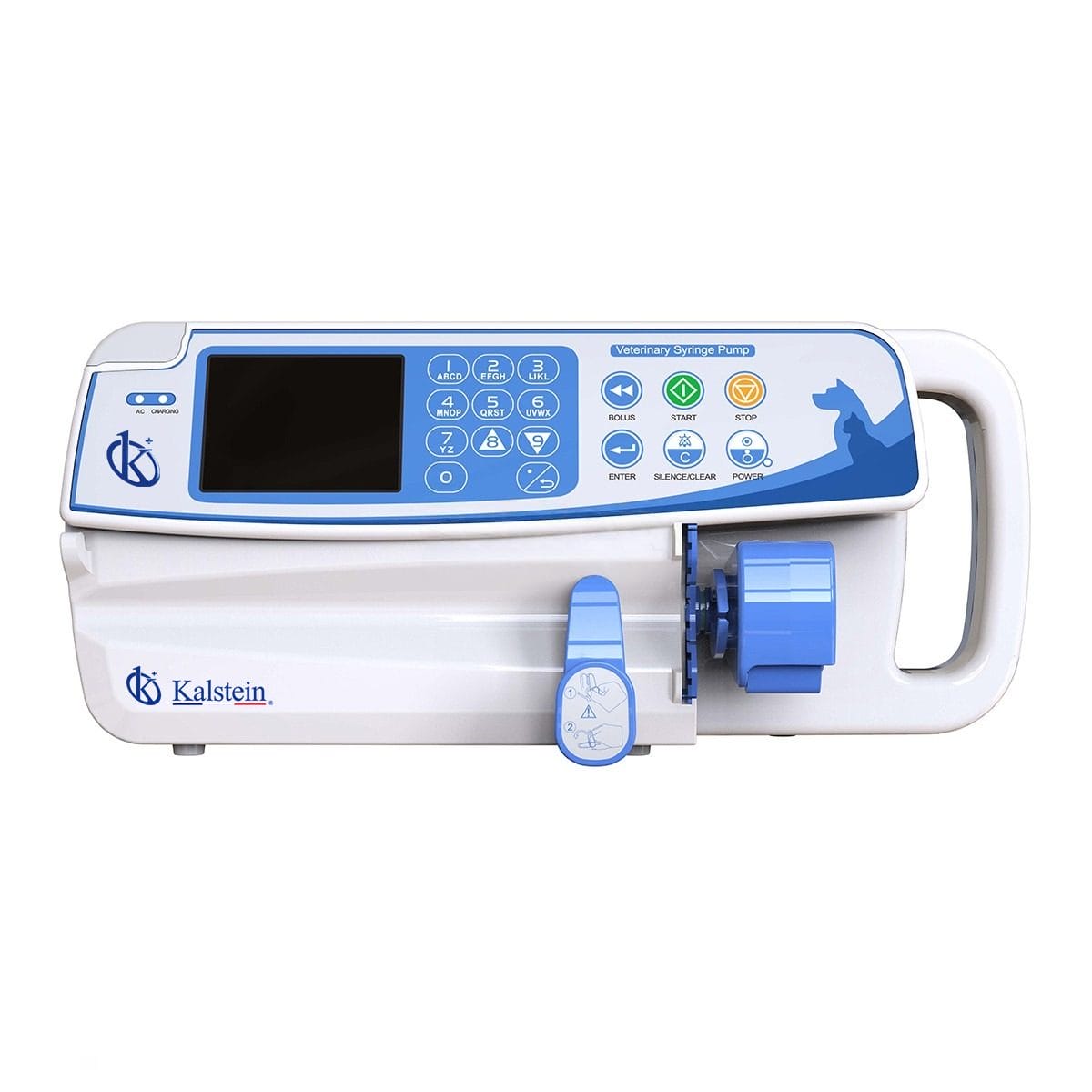

The Veterinary Syringe Pump YR06185 is a state-of-the-art infusion device designed specifically for veterinary use, providing exceptional precision and reliability. Its large and colorful LCD display ensures easy readability, while the intelligent syringe recognition technology enhances accuracy and convenience. With a dynamic pressure display, double CPU for safe infusions, and a range of infusion modes, this syringe pump is adaptable to a variety of clinical scenarios. Additionally, its 90-degree rotatable pole clamp makes it versatile for both horizontal bars and vertical IV poles. Whether it’s monitoring infusion history or leveraging numerous visual and audible alarms, the Veterinary Syringe Pump YR06185 meets the demands of modern veterinary medicine.
Market Price
For those considering an investment in a veterinary syringe pump, the market offers a range of options. Prices generally range from $500 to $800, reflecting the advanced technology and robust design offered by products like the Veterinary Syringe Pump YR06185. It's important to consider the value provided by such a reliable and feature-rich device, offering peace of mind and efficiency in daily veterinary operations.
Frequently Asked Questions
Q: Can the Veterinary Syringe Pump YR06185 be used with any syringe brand?
A: Yes, it is compatible with various brands of sterile syringes, including sizes 5ml, 10ml, 20ml, 30ml, and 50ml/60ml.
Q: How long does the battery last after a full charge?
A: The rechargeable battery can operate for more than 12 hours at a rate of 5ml/h under a temperature of 25℃.
Advantages and Disadvantages
On the plus side, the Veterinary Syringe Pump YR06185 offers unparalleled precision and user-friendly features like syringe recognition and adjustable infusion modes. However, potential buyers should note that it requires regular calibration to maintain its high accuracy.Overall, its durability and extensive features make it a worthy addition to any veterinary practice.
Field Use
In real-world veterinary settings, the Veterinary Syringe Pump YR06185 proves to be indispensable. Its intuitive interface and multiple alarm types ensure that veterinary professionals can administer treatments effortlessly and with utmost precision. Its mobile-friendly design also allows for use across different treatment rooms or mobile units, making it a versatile tool for any veterinary practice.
Recommendations
For optimal performance, it's recommended to regularly calibrate the syringe pump as per the instructions in the user manual. Ensure that the battery is charged correctly to avoid disruptions during operation. For added convenience, consider using Kalstein Plus for quick and easy automatic quotations.
Features
- Large & Colorful LCD display
- History records
- 90-degree rotatable pole clamp
- Unique syringe intelligent recognition technology
- Dynamically display the pressure
- Double CPU ensuring safe infusion
- RS232 interface
- Adjustable buzzer volume
- Anti-bolus function
- Various visual and audible alarms
Technical Specifications
| Model | YR06185 |
| Infusion mode | Dose mode, Time mode, Rate mode |
| Applicable syringes | Various brands of sterile syringes: 5ml,10ml,20ml,30ml,50ml/60ml |
| Accuracy | ±2% (after syringe correct calibration) |
| Infusion rate | 5ml syringe: 0.1 -150ml/h 10ml syringe: 0.1 -300ml/h 20ml syringe: 0.1 -600ml/h 30ml syringe: 0.1 -900ml/h 50ml syringe: 0.1 -1500ml/h |
| Volume to be infused (VTBI) | 0～1000 ml |
| Volume Infused (∑) | 0～9999.9 ml |
| KVO rate | 0.1-2 ml/h adjustable; default value: 0.1ml/h |
| Bolus rate | 5ml syringe: 100-150ml/h 10ml syringe: 100-300ml/h 20ml syringe: 100-600ml/h 30ml syringe: 100-900ml/h 50ml syringe: 100 -1500ml/h |
| Alarms | Infusion completion, Empty, Occlusion, Near completion, Low battery, Syringe disengaged, No AC power supply, Battery exhausted, Malfunction etc. |
| Power supply | AC: 100~240V, 50/60Hz DC: 12V ±1.2V |
| Power consumption | 25VA |
| Nurse call alarm | Optional |
| Classification | Class I, type CF |
| Dimensions | 300(L)x 130(H)x 125 (W)mm, not including pole clamp |
| Net weight | 1.8KG |
| Waterproof Level | IPX3 |
| Occlusion pressure | (40.0-160.0)kpa |
| 3 adjustable occlusion pressure settings | low, middle and high |
| Battery | Rechargeable Li polymer battery,7.4V, 1900mAh Can operate more than 12 hours after fully charged at 5ml/h., temperature 25℃ |
| Battery recharge time | 10h with power on, 3h with power off |
| Operating conditions | Temperature: 5℃~40℃, Relative humidity: 10~95%, Atmosphere pressure: 86～106kPa |
| Transport conditions | Temperature: -20℃~+60℃, Relative humidity: 10~95%, Atmosphere pressure: 50～106kPa |
| Storage conditions | Temperature: -20℃~+45℃, Relative humidity: 10~95%, Atmosphere pressure: 50～106kPa |
Technical specifications
| Weight | 3 kg |
|---|---|
| Manufacturer | Kalstein |
