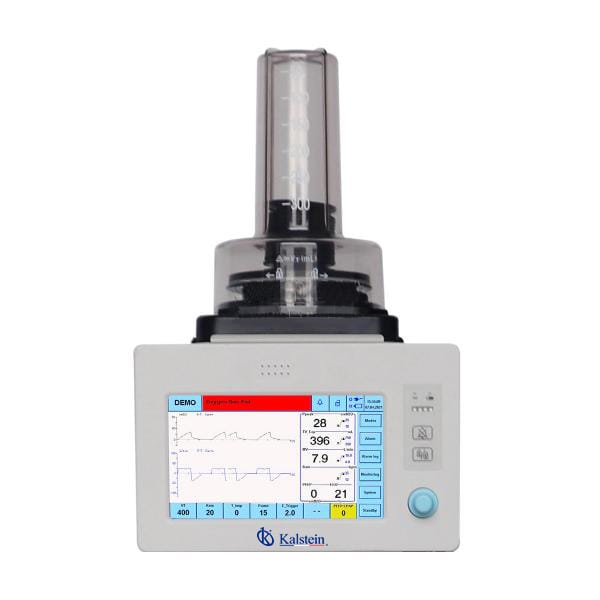

Veterinary Anesthesia Ventilator YR06103

The Veterinary Anesthesia Ventilator YR06103 is a state-of-the-art solution designed specifically for veterinary use, offering a compact and space-saving design that ensures ease of transportation. Featuring an automatic calculation system based on the animal's weight to optimize ventilation parameters, this ventilator provides reliability in diverse settings. Its advanced PCV mode facilitates automatic breathing support, catering comfortably to both small and large animals, and ensuring seamless integration with different brands of veterinary anesthesia machines. Equipped with an intuitive HD TFT Touch screen, this device makes complex operations simple, even in the event of power failure, thanks to its robust built-in battery lasting over two hours.

Market Price

The average price for high-quality veterinary anesthesia ventilators like the YR06103 ranges between 2900 USD to 3500 USD. Discover how this competitive pricing makes it an affordable yet indispensable tool for veterinary practices dedicated to providing the best care for their patients.

Frequently Asked Questions

What types of gases can be used with this ventilator? The Veterinary Anesthesia Ventilator YR06103 operates with either O2 or Air, giving you flexibility in gas source selection. How long does the battery last during a power outage? The built-in Li-ion battery is capable of supporting the device for more than two hours when fully charged.

Advantages and Disadvantages

Advantages: The YR06103 is lightweight and easy to move, automatically calculates ventilation parameters, and is compatible with various veterinary anesthesia machines. Its intuitive touchscreen simplifies operation significantly. Disadvantages: While the device is designed for veterinary use, it is necessary for users to have a proper understanding of veterinary anesthesia techniques.

Product Use in the Field

In practical scenarios, the YR06103 is vital for veterinary surgeries and procedures requiring anesthesia. Its ability to provide automatic breathing support in various modes ensures that animals receive precise and comfortable ventilation, dramatically improving surgical outcomes.

Recommendations

Regular maintenance checks and adherence to the manufacturer's guidelines will extend the lifespan of the ventilator. Consider integrating the YR06103 into your veterinary practice's operational workflow to enhance efficiency and optimize patient care.

Features

• Space-saving and portable design
• Automatic calculation of ventilation parameters based on weight
• PCV mode for automatic breathing support
• Compatible with both large and small animals
• Matchable with a variety of veterinary anesthesia machines
• Easy operation with a 9-inch TFT touch screen
• Reliable battery backup for over two hours

Technical Specifications

Model	YR06103
Display	9-inch TFT touch screen
Gas type	O2 or Air
Inlet pressure	280-600 kPa
Max flow	≤ 120 L / min
Operating Mode	VCV, PCV, SPONT, Manual, Demo
Waveform	Pressure, Flow-rate, Volume
Loop	PV loop, PF loop, FV loop
Safety Pressure	System pressure does not exceed 6 KPa
Battery Type	Li-ion, work time more than 2 hours
Tidal volume Range	20 - 1500ml
Respiratory rate Range	1 ~ 150 bpm
Inspiratory time Range	0.1 ~ 12s
Breathing ratio Range	9.9:1 to 1:9.9
Percentage of inspiratory pause Range	0 to 50%
PEEP Range	OFF, 3 ~ 20 cmH2O
Support Pressure Range	0 ~ 60 cmH2O
Inspiratory Pressure Range	2 ~ 60 cmH2O
Flow trigger Range	0.5 ~ 20L/min
Pressure Trigger Range	-1 ~ -20 cmH2O
PSV Insp Termination Level	25%
Monitoring parameters	Inspiratory/Expiratory tidal volume Range:0 ~ 2500 mL
Minute ventilation	Display Range: 0 ~ 99L/min, Using Range: 0 ~ 25L/min
Spontaneous minute ventilation	Display Range: 0 ~ 99L/min, Using Range: 0 ~ 25L/min
Pea/Mean airway pressure Range	0 ~ 80 cmH2O
FiO2(optional) Range	15 to 100%
