Description

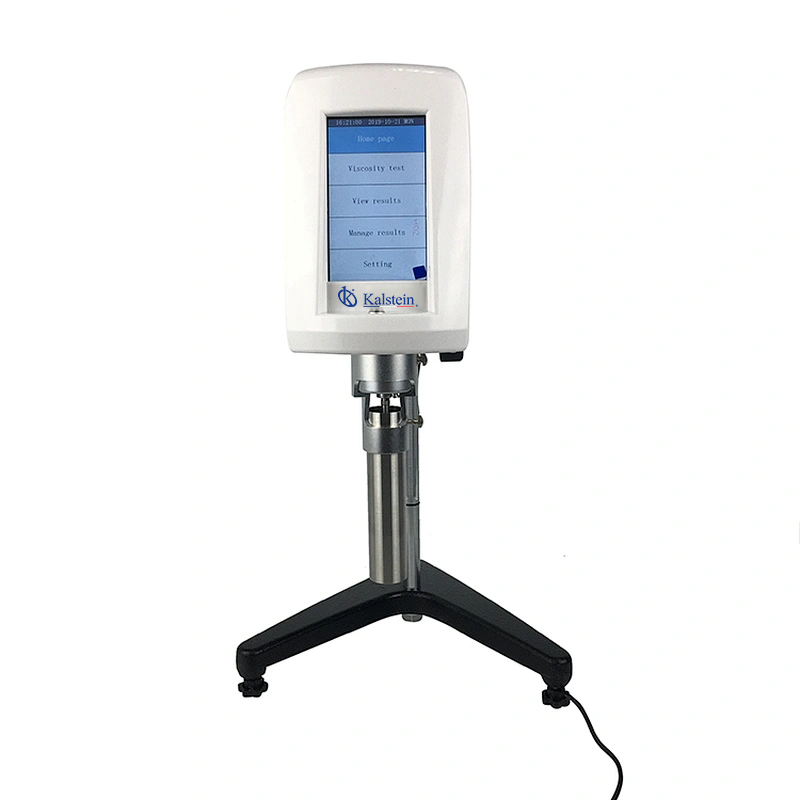

The Touch Screen Brookfield Viscometer YR05858 – YR05859 is a cutting-edge device designed to combine precision with user-friendly technology. Featuring a vibrant 5-inch color touch screen, it allows for a comprehensive and visual display of testing parameters, making it intuitive to operate. This viscometer excels in measuring a wide range of viscosities, from very low to extremely high, and its advanced ARM technology, backed by a Linux operating system, ensures fast and reliable results. Ideal for industries dealing with high-viscosity substances such as paints, cosmetics, and food products, this viscometer sets a new standard in testing capabilities.
Market Price
The average market price for devices similar to the Touch Screen Brookfield Viscometer YR05858 – YR05859 ranges from $3,800 to $4,600 USD. This competitive pricing reflects its advanced technology and versatile application potential in various industries. For exact pricing, we invite you to request a quote through our Kalstein Plus platform.
Frequently Asked Questions
- What substances can be measured with this viscometer? The viscometer can measure various high-viscosity substances including paints, coatings, cosmetics, and certain food products.
- Is it necessary to have advanced technical knowledge to use it? No, the interface is designed to be user-friendly, ensuring easy operation even for users with minimal technical expertise.
- Does the device come with a warranty? Yes, the device comes with a standard manufacturer’s warranty. Please consult the warranty details specific to your purchase location.
Advantages and Disadvantages
Advantages: The device boasts high precision in measurements, a comprehensive range of speed options, and robust anti-interference capabilities. Disadvantages: It may require initial calibration and maintenance over time to ensure optimal performance.
Field Application
The Touch Screen Brookfield Viscometer YR05858 – YR05859 is commonly used in labs and production facilities to ensure quality control and product consistency. Its ability to provide real-time data analysis facilitates quick adjustments and decisions in production processes.
Recommendations
For optimal performance, it’s recommended to regularly calibrate the viscometer and maintain a clean operating environment. Make sure to follow the manufacturer’s guidelines for sample preparation and device maintenance.
Features
- ARM technology with a built-in Linux system.
- Auto-calibrated measurement ranges for high accuracy.
- Multiple data display options including dynamic viscosity, temperature, and shear rate.
- Real-time viscosity curve visualization and data printing capabilities.
- User-friendly front level adjustment.
- Optional Pt100 temperature probe for extended temperature ranges.
Technical Specifications
| Model | YR05858 | YR05859 |
| Speed(r/min) | 0.3–100 infinitely variable speed , a total of 998 speed options | |
| Measuring Range | Rotor 1- 4: 10-2000000 mPa.s ULR: 1-1000 Rotor 18: 3 – 10000 Rotor 25: 480 – 1.60000000 Rotor 31: 30 – 100000 Rotor 34: 20 – 200000 |
Rotor 1-4: 10–6,000,000 mPa.s ULR: 1-6000 Rotor 18: 1.5 – 300,000 Rotor 25: 240 – 4.8,000,000 Rotor 31: 15 – 300,000 Rotor 34: 30 – 600,000 |
| Rotor | L1 – L4 (Standard) Enhanced ultra-low viscosity adapter ULR (optional) Small sample adapters (rotors 18,25,31,34)(optional)） |
|
| Sample Dosage | Rotor 1- 4: 300 – 400ml ULR: 21ml Rotor 18：7ml Rotor 25: 9ml Rotor 31: 10.5ml Rotor 34:11ml( K = 1000; M = 1000000 ) |
|
| Measurement Error | ±1% (Newtonian liquid) | |
| Repetitive Error | ±0.5% (Newtonian liquid) | |
| Data output Interface | RS232*2pcs, temperature probe interface*1pc | |
| Power | 110V ~240V , 50Hz / 60Hz | |
| Dimension | 350 *350 *450mm | |
| Standard Accessory | Main machine, bracket and the base, rotor L1,L2,L3,L4, rotor protection frame, power adapter. | |
| Optional Accessory | Supper Ultra-low viscosity adapter ULR rotor, temperature sensor, thermostat bath, thermostat cup, printer, standard calibrate silicone oil (5.7mpa.s/336.1mpa,s/5220mpa.s), etc. | |
