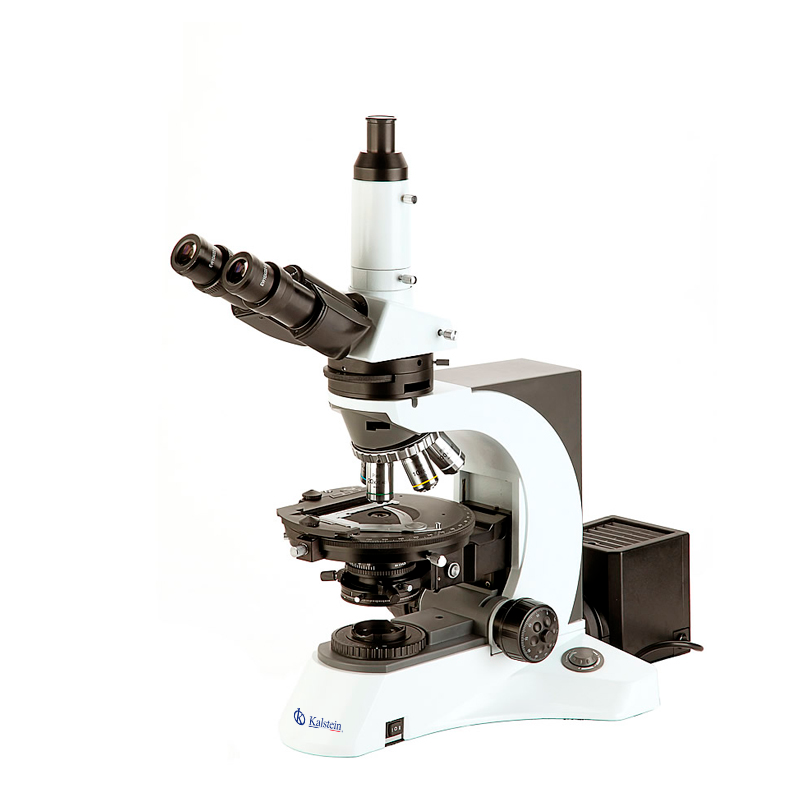

Polarizing Microscope YR0261

The Polarizing Microscope YR0261 is a high-precision instrument designed for professionals in geology, mineralogy, and material science. With its quintuple nosepiece center adjustable and strain-free infinity plan objectives ranging from 4x to 100x, this microscope provides exceptional image clarity and versatility for detailed observation and analysis. Its 170mm diameter round stage is center adjustable, complemented by a sophisticated analyzer unit featuring a Bertrand lens and various optical compensators. The microscope's 24V100W halogen illumination is brightness adjustable, ensuring optimal lighting for any specimen.

Market Price

The Polarizing Microscope YR0261 typically falls within the price range of $2,900 to $3,700, depending on the retailer and additional features or accessories included. This competitive pricing reflects the quality and advanced features of the microscope, offering a great balance between cost and performance. For precise pricing and to explore whether this product suits your budget, try generating an automatic quote via the Kalstein Plus platform.

Frequently Asked Questions

What are the main applications of the Polarizing Microscope YR0261? This microscope is primarily used in fields such as geology, mineralogy, and material science for examining birefringent materials.

Can the stage be rotated while observing a specimen? Yes, the rotatable stage allows for 360° adjustments, facilitating thorough observation from different angles.

What is the warranty period for the Polarizing Microscope YR0261? Typically, it comes with a standard one-year warranty; however, this might vary with different suppliers.

Advantages and Disadvantages

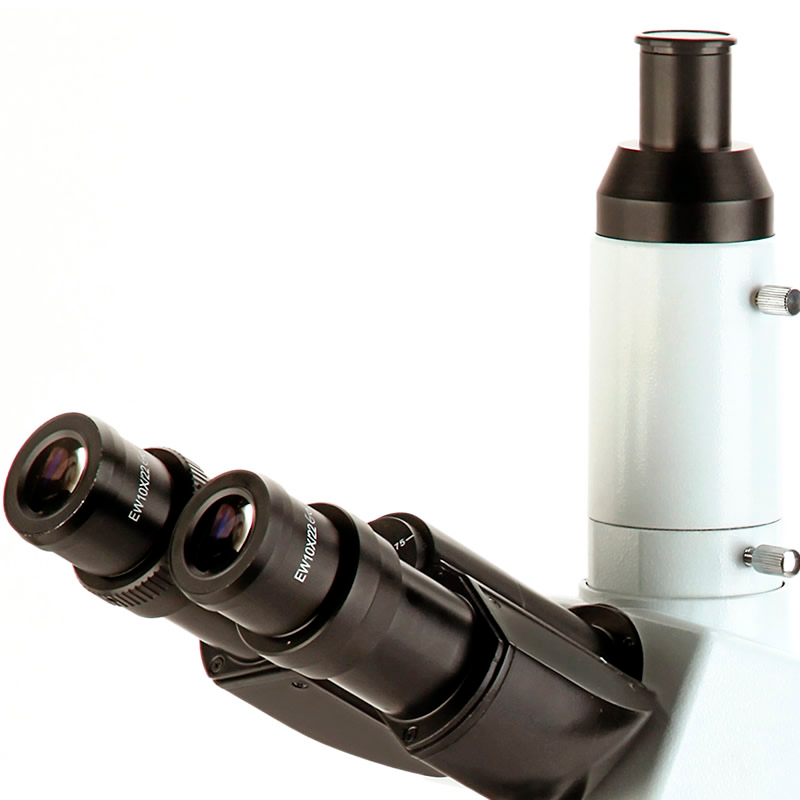

Advantages: The microscope offers excellent optical performance with its infinity plan objectives and sophisticated lighting system. The robust design and ergonomic features, such as the trinocular head, make it user-friendly. Its adaptability to different viewing angles with the rotatable stage is a key advantage.

Disadvantages: The complexity of the equipment may require a learning curve for users new to polarizing microscopy. Additionally, the higher price point might be a consideration for budget-conscious buyers.

Use of the Product in the Field

The Polarizing Microscope YR0261 is indispensable in the analysis of geological and mineral samples. It allows scientists and researchers to observe and measure optical properties such as birefringence, aiding in the identification and classification of minerals. Its usage is not limited to academic research but is also standard equipment in quality control processes and industrial laboratories.

Recommendations

To maximize the utilization of the Polarizing Microscope YR0261, it is recommended to regularly calibrate the optical components. Proper maintenance, including cleaning the lenses and checking the electrical connections, ensures longevity and consistent performance. For detailed analysis, pairing the microscope with an appropriate imaging system can enhance documentation and further analysis capabilities.

Features

• Quintuple Nosepiece Center Adjustable

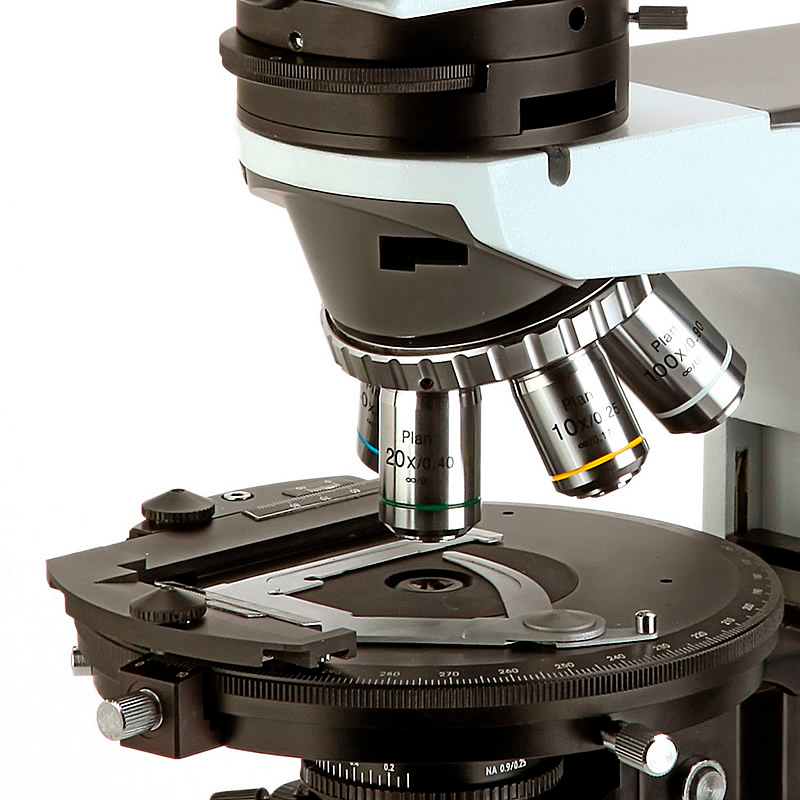

• Strain-free Infinity Plan Objectives 4x, 10x, 40x, 100x
• Round Stage Dia.170mm Center Adjustable
• Analyzer Unit with Bertrand Lens, λ Slip, 1/4λ Slip, Quartz Wedge
• Transmit Halogen 24V100W Brightness Adjustable

Technical Specifications
