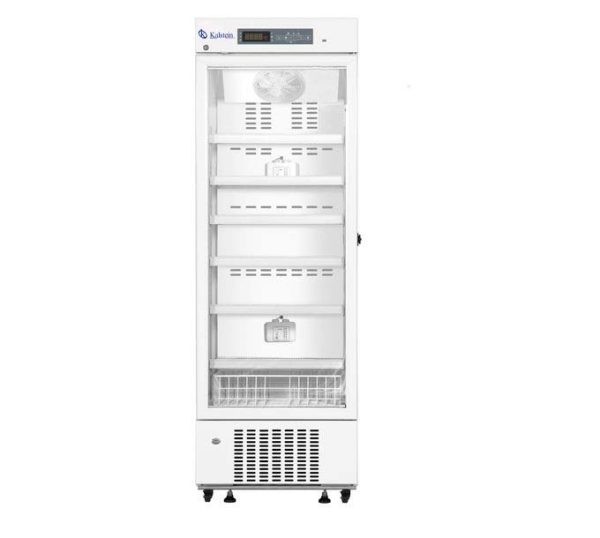

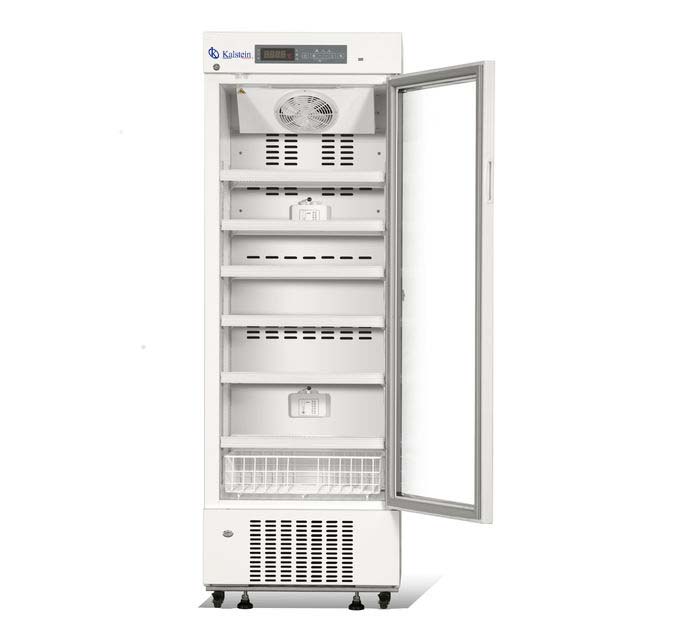

Pharmacy Medical Refrigerator , Glass Door Medical Grade Freezer YR05290

Pharmacy Medical Refrigerator , Glass Door Medical Grade Freezer YR05290 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Pharmacy Medical Refrigerator, Glass Door Medical Grade Freezer YR05290 is expertly designed for storing sensitive pharmaceutical products like medicines, vaccines, reagents, and other biomedical materials. With a powerful air-cooling system and a temperature range of 2 to 8 degrees Celsius, this refrigerator ensures the utmost in temperature consistency, which is crucial for the preservation of medical supplies. Featuring a USB port for easy data download and a heated glass door for better visibility, the YR05290 model is the epitome of reliable medical refrigeration technology.
Market Price Overview
When considering an investment in a medical-grade refrigerator such as the YR05290, it's important to note that the market price range starts around 1600 USD and can go up to 2300 USD depending on additional features and supplier pricing. This range is competitive and highlights the advanced features and robust design of the YR05290 model.
Frequently Asked Questions
- What is the primary use of the YR05290 refrigerator?
This unit is specifically designed for storing pharmaceuticals, vaccines, and other sensitive biomedical materials that require strict temperature control.
- Does it have an alarm system for temperature fluctuations?
Yes, it is equipped with an audible and visual alarm system to alert users of any significant temperature variations or system malfunctions.
- How does the USB port function?
The USB port allows for easy downloading of temperature data and alarm logs, vital for maintaining compliance with regulatory standards.
Advantages and Disadvantages
Advantages: Consistent temperature control with a variation of ±3ºC, digital display for easy temperature monitoring, and robust alarm systems for safety. The heated glass door and internal LED lighting enhance visibility, making it easy to check inventory.
Disadvantages: Higher initial investment compared to conventional refrigerators and potential setup complexity for new users unfamiliar with medical-grade equipment.
Practical Use Cases
In hospitals and clinics, the YR05290 is essential for securely storing vaccines and other temperature-sensitive medications. Its reliable cooling system ensures that pharmaceuticals are kept at safe temperatures, reducing the risk of spoilage and waste. The unit is also useful in research labs for storing biological samples that require stable temperature conditions.
Recommendations
To maximize the efficacy of the YR05290 refrigerator, it's advisable to regularly download and check temperature logs via the USB port to ensure compliance with safety standards. Regular maintenance and checks on the alarm systems can preclude unforeseen failures. Additionally, using the locking mechanism will help prevent unauthorized access and ensure security.
Key Features
- Glass door with heating to prevent condensation
- Adjustable shelves to optimize storage
- Microprocessor control with a large digital display
- USB port for data download
- Audible and visual alarm system
- AUTO defrosting system
Technical Specifications
| Model | YR05290 |
| Shelf/Drawer | Shelves*6/Basket*1 |
| Cooling Method | Forced Air Cooling System |
| Defrost | Auto |
| Refrigerant | R290 |
| Power Consumption (kWh/24h) | 2.8 |
| Noise (db) | 50 |
| Ambient Temperature (℃) | 10~32℃ |
| Temperature Range (℃) | 2~8℃ |
| Compressor Brand/QTY | China Brand/1 |
| Sensor Type | NTC |
| Temperature Controller | Microprocessor |
| Display | Digital display |
| Voltage/Frequency (V/Hz) | 220/50Hz |
| Power (W) | 216W |
| Current (A) | 1.46A |
| Inside Material | Color sprayed steel |
| Outside Material | Color sprayed steel |
| Insulation | PURF |
| Capacity (L/cu.ft) | 316/11.15 |
| NT./GT. (kg) | 92.5/100 |
| Exterior Size (W*D*H) (mm) | 660*555*1915 |
| Interior Size (W*D*H) (mm) | 540*425*1380 |
| Package Size (W*D*H) (mm) | 710*640*1970 |
| CBM | 0.90 |
| 20GP/40GP/40HQ | 27/54/54 |
| High/Low Temperature | Y |
| Power Failure | Y |
| Thermostat Failure | Y |
| Backup Battery Failure Alarm | Y |
| Condenser Fault Alarm | Y |
| Ambient Temperatures | Y |
| Voltage Abnormality Alarm | / |
| Door Ajar | Y |
| System Abnormal Alarm | / |
| Power Failure Backup System (Alarm) | 48h |
| Foot | Y |
| Castor | Y |
| Outer Door/Type | 1/Heating glass door with automatic rebound |
| Door Lock | 1 |
| Test Hole QTY/Diameter | 1/25mm |
| Lamp | LED |
| USB Port | Y |
| Temperature Recorder | Optional |
| Remote Alarm Port | Y |
| RS232/485 Port | Y |
| Certification | ISO9001/13485/14001; CE |
Technical specifications
| Weight | 128 kg |
|---|---|
| Manufacturer | Kalstein |
