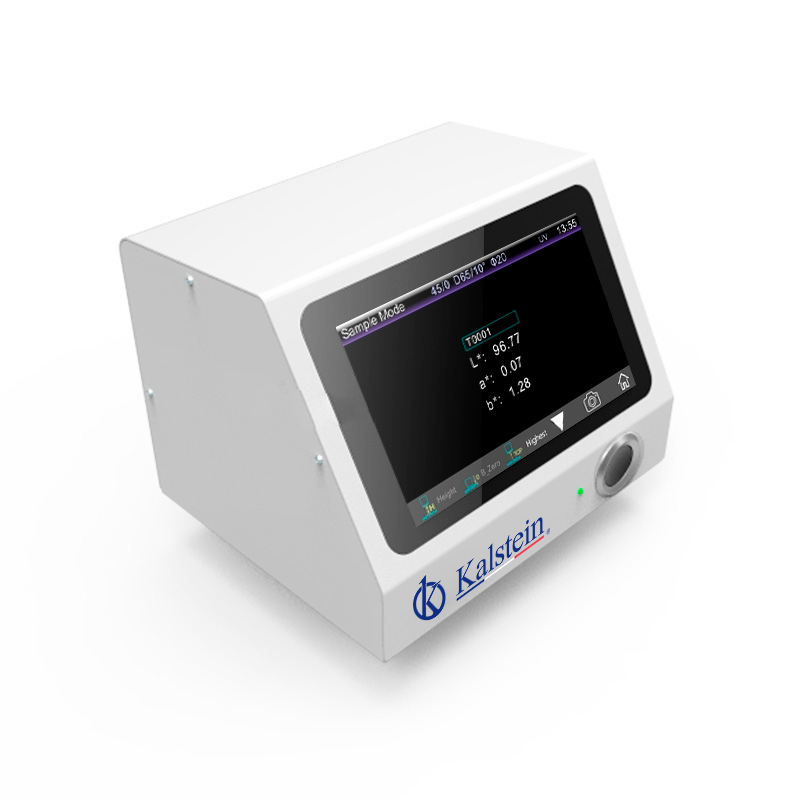

Non-contact Benchtop Spectrophotometer YR05480
Non-contact Benchtop Spectrophotometer YR05480 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.
The Non-contact Benchtop Spectrophotometer YR05480 represents a leap forward in color measurement technology, offering unparalleled precision and versatility. Utilizing a D/8 standard geometry (diffuse illumination, 8° reception), it allows for non-contact measurements of liquids, sauces, and powders with exceptional accuracy. The dual-matrix CMOS image sensor enhances optical resolution, ensuring speed, accuracy, and stability. With a full-spectrum LED light source, it provides a complete color analysis aligned with international standards, promising reliable results for industries ranging from quality control on production lines to research and development.
Market Price
In the competitive landscape of color measurement instruments, the Non-contact Benchtop Spectrophotometer YR05480 is positioned in an approximate price range of 10,000 USD to 10,300 USD. This pricing reflects its advanced capabilities and the high-quality performance it offers in various industrial applications. For a precise quote and to better understand how this instrument can fit within your operational budget, we invite you to request a quote through the Kalstein Plus platform.
Frequently Asked Questions
What types of materials can the YR05480 spectrophotometer measure? The instrument is designed to accurately measure colors of liquids, sauces, powders, and even solid materials, without physical contact.
How does the non-contact measurement work? It uses a 3.0 mm distance from the sample with no need for direct contact, preserving the integrity and consistency of the samples.
Advantages and Disadvantages
Advantages:
- High precision and repeatability in color measurement.
- Non-contact technology prevents contamination and preserves sample integrity.
- Compliance with multiple international standards ensures compatibility.
Disadvantages:
- Higher initial investment compared to simpler color measurement tools.
- Requires calibration and warm-up for optimal performance.
Product Use in the Field
The YR05480 spectrophotometer is employed across various industries for quality control and research. In production lines, it ensures consistent color quality by providing accurate and rapid color data. Its ability to measure powders and liquids without contact makes it indispensable in food processing, cosmetics, and paint manufacturing. Laboratories can utilize it for research applications, where precision in color differentiation is critical.
Recommendations
To maximize the lifetime and performance of the YR05480, regular calibration with the provided standard calibration plate is recommended. Ensure that the instrument is used within the specified operating conditions to maintain accuracy. For intensive use scenarios, periodic software updates and maintenance through official service channels are advised to keep the device in optimal condition.
Features
- Non-contact test with precise measurement capabilities.
- Full-spectrum LED and UV light sources.
- Concave grating spectroscopy for higher color measurement accuracy.
- Bluetooth 5.0 connectivity for stable data transmission.
Technical Specifications
| Model | YR05480 |
| Optical Geometry | D/8 (diffuse illumination, reception at 8°, SCI includes specular reflection light); |
| Complies with CIE standard No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7, GB 2893, GB/T 18833 | |
| Features | Non-contact test between the test probe and the tested sample, to achieve accurate non-contact color measurement of liquids, sauces, powders, etc. Mainly used for accurate color measurement and quality control of automated production lines; the measurement time can be adjusted from 0.2 to 1.5 seconds, and the software functions can be customized (additional customization function needs to be evaluated). |
| Light Source | Full-spectrum LED light source, UV light source |
| Spectrophotometric Mode | Concave grid |
| Sensor | 256-pixel dual-matrix CMOS image sensor |
| Wave Range | 400~700nm, 10nm output |
| Measured Reflectance Range | 0-200% |
| Measuring Aperture | Φ20mm (Φ10mm can be customized) |
| Non-contact Distance | 3.0 mm (±0.2 mm) |
| Sample Height | Unlimited thickness, only test probes are used |
| Distance Adjustment Method | Fixed height according to actual sample |
| Measuring Mode | Software customization function (additional customization function to be evaluated) |
| Locating | Camera location |
| Color Space | Laboratory CIE, XYZ, Yxy, LCh, LUV CIE, Musell, s-RGB, HunterLab, βxy, DIN Lab99 |
| Color Difference Formula | ΔE*ab, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, ΔE(Hunter), DINΔE99. |
| Other Colorimetric Index | WI (ASTM E313, CIE/ISO, AATCC, Hunter), |
| YI(ASTM D1925, ASTM 313), | |
| Index of Metamerism MI, | |
| Stain resistance, color fastness, strength, opacity, opacity | |
| Observer Angle | 2°/10° |
| Illuminant | D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83/U30) |
| Data Shown | Spectrogram/values, sample chromaticity values, color difference/graphic values, color simulation, pass/fail result, display tolerance can be configured |
| Measuring Time | As fast as 0.2 seconds |
| Data Storage | Sample mode + Quality control mode 18,000 |
| Continuous statistical mode 30,000, for a total of not more than 48,000 | |
| Repeatability | In the optimal measurement mode (when the time of a single measurement is 1.5 seconds): |
| Spectral reflectance: within 0.1% of standard deviation: | |
| Chromaticity value: ΔE*ab within 0.03 (after warming up and calibrating the instrument, measure the average value of the slate 30 times within 5 s). | |
| Error Between Instruments | Within ΔE*ab 0.2 (Average value measured from 12 mosaics of BCRA series Ⅱ). |
| Method of Measurement | Single measurement, average measurement (2~99 times) |
| Dimension | 200*200*160mm (test probe) |
| Weight | Approx. 3 kg (test probe only) |
| Energy | AC 24V, power adapter power supply 3A |
| Illuminating Life | 5 years, more than 3 million times measurements |
| Monitor | 7-inch TFT color LCD, capacitive touch screen |
| Data Port | USB, Bluetooth®5.0 |
| Language | Simplified Chinese, Traditional Chinese, English |
| Operating Environment | 0~40 ℃, 0~85 % RH (non-condensing), altitude: less than 2000 m |
| Storage Environment | -20~50℃, 0~85%RH (no condensation) |
| Standard Accessory | Power adaptor, manual, data cable, standard calibration plate, black calibration box |
| Notes | This model is especially suitable for optimized production lines, deep customization of functions will incur additional customization costs. |
Technical specifications
| Weight | 13.1 kg |
|---|---|
| Manufacturer | Kalstein |
