Description

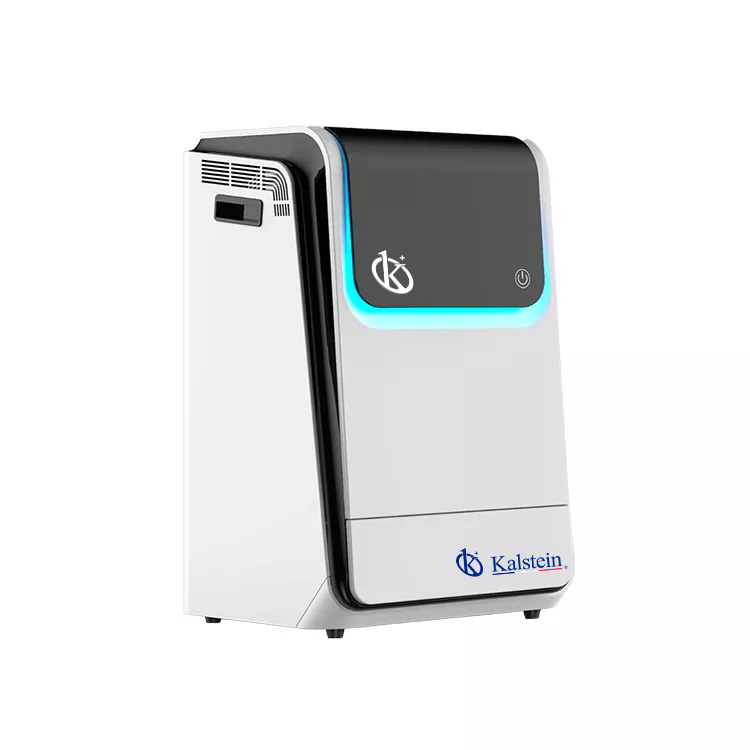

The Multifunctional Imager YR06210-YR06211 is expertly designed for high-performance detection in fields such as visible light (RGB), far red/near infrared (FR/NIR) fluorescence, chemiluminescence, and general gel documentation. It features a state-of-the-art electronic lifting platform, allowing users to precisely adjust the capture area according to sample size. Additionally, an optional removable PC enhances operational flexibility and minimizes post-purchase risks associated with embedded Windows Pads. This versatile imager is ideal for a wide range of applications, ensuring intuitive use and offering unlimited user access through advanced software capabilities. Its highly sensitive cooled digital camera further elevates its functionality, making it a leaders in its class.
Market Price
For professionals searching for sophisticated imaging solutions, the Multifunctional Imager YR06210-YR06211 typically falls within a price range of $21,000 to $21,800 USD. This range reflects its robust features and advanced technology, positioning it as a worthy investment for labs and research institutions seeking reliable performance and cutting-edge imaging capabilities.
Frequently Asked Questions
- What types of imaging can the Multifunctional Imager perform? – It offers capabilities for chemiluminescence, fluorescence, and general gel documentation applications.
- Is the removable PC necessary for operation? – No, it’s an optional accessory that enhances operational ease but is not mandatory.
- How many users can access the software? – The software provides access for an unlimited number of users.
Advantages and Disadvantages
The primary advantage of the Multifunctional Imager is its versatility in applications, allowing for high-sensitive imaging across different media. The electronic lifting platform and intuitive software are standout features. However, the initial investment might be high for smaller organizations.
Field Use
The Multifunctional Imager YR06210-YR06211 is frequently utilized in laboratory settings for tasks such as ECL Western Blotting and fluorescence imaging. Its ability to adjust to various sample sizes makes it an indispensable tool for researchers requiring precision and reliability in their imaging tasks.
Recommendations
To get the most out of the Multifunctional Imager, perform regular maintenance checks and ensure software updates are carried out promptly. For researchers frequently processing diverse sample sizes, the electronic lifting platform can significantly enhance workflow efficiency.
Features
- Super sensitive Cooled digital Camera
- Wide range of applications
- Electronic lifting platform
- Optional removable PC
- Intuitive Software for unlimited users
Technical Specifications
| Model | YR06210 | YR06211 | |
| Application | Chemilluminescence Imaging, ECL Western Blotting | YES | YES |
| Fluorescence Imaging, Fluorescent Western Blotting | YES | YES | |
| Gel Doc Application | YES | YES | |
| Protein gel；SDS Pages | YES | YES | |
| Standard Parameters | Sensor | Back illuminated SCMOS Sensor | Front illuminated CCD Sensor |
| Resolution | 9.0Megapixels | 6 Megapixels | |
| Pixel Size | 3.76 × 3.76 μm | 4.54 x 4.54 μm | |
| Temperature | -30 °C regulated | ||
| Dynamic Range | 4.8OD | ||
| Pixel density | 16bit(65536 Grey scales) | ||
| Lens | F0.95 as standard (optional F0.8) Auto focus | ||
| Chemilluminescence Sample tray | Electronic Lifting Platform for diverse sizes of western blotting membranes | ||
| DNA/RNA detection | Electronic Lifting Blue LED Transmission for DNA/RNA detection | ||
| Protein gel；SDS Pages | Electronic Lifting White LED Transmission for Protein Gels | ||
| Software | SHST Capture and Analysis Software for unlimited number of users | ||
| Optional Accessories | Epi-UV, RGB and NIR fluorescent detection | ||
| Removable industrial computer, 13.1 Inch Touch Screen, Intel processor | |||
