Description

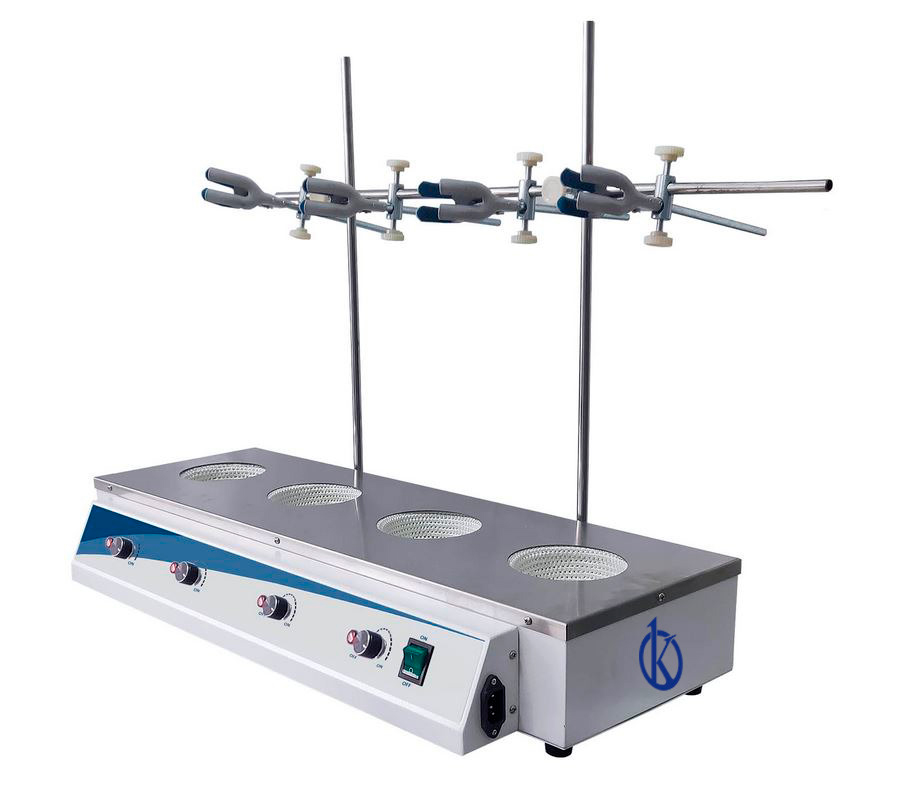

Multi Heating Mantle YR05049 // YR05054 is an innovative solution designed for repetitive laboratory tasks such as extraction (Kjeldahl, Soxhlet, and others), reflux, and distillation. With its space-saving design and independent temperature control for each condition, this product offers precision and safety. The inner heating element is protected by soft glass fiber, ensuring the safety of your glassware while providing precise PID temperature control to meet high accuracy experimentation needs.
Market Price
The Multi Heating Mantle YR05049 and YR05054 stand out in the market for their advanced capabilities at competitive prices. Typically, similar products are found in the range of $190 to $580 USD. This makes our offering a cost-effective solution without compromising on quality.
Frequently Asked Questions
What applications is the Multi Heating Mantle suitable for?
It is ideal for laboratory extractions, reflux, and distillation processes.
Can each mantle be controlled separately?
Yes, each mantle has independent and separate temperature control settings.
Advantages and Disadvantages
Advantages: Space-efficient design, independent temperature control, and durable construction. Additionally, its precise temperature management ensures reliable results in laboratory settings.
Disadvantages: The analog model may require more manual oversight than digital alternatives.
Product Usage in the Field
The Multi Heating Mantle is extensively used in laboratories for chemical processes such as extracting compounds using solvents or performing reflux, an essential procedure in organic chemistry. Its capacity to handle multiple flasks simultaneously boosts laboratory efficiency.
Recommendations
For optimal performance, ensure the mantle is placed on a stable, heat-resistant surface. Regularly calibrate the temperature controls to maintain accuracy. If not in continuous use, ensure it is stored properly to extend its lifespan.
Features
- Space-saving extraction mantle design
- Independent temperature control for diverse conditions
- Protective soft glass fiber heating element
- Accurate PID temperature management
Technical Specifications
| Type | Analog | |||||
| Model | YR05049 | YR05050 | YR050501 | YR05052 | YR05053 | YR05054 |
| Capacity (ml) | 3 x 250 ml | 3 x 500 ml | 3 x 1 000ml | 6 x 250 ml | 6 x 500 ml | 6 x 1 000ml |
| Voltage (V) | 200 – 240V / 50- 60Hz or 100 – 120V / 50 – 60Hz | |||||
| Max use Temperature (°C) | 380 | |||||
| Power (W) | 150×3 | 250×3 | 350×3 | 150×6 | 250×6 | 350×6 |
| Working Time | Continuous | |||||
| Exterior Size | 500 x 290 x 120 | 650x350x120 | 900x290x120 | 1 200x350x120 | ||
| Packing Size (mm) | 550 x 440 x 170 | 700x500x170 | 950x440x170 | 1 250x500x170 | ||
| Net Weight (Kg) | 8 | 14 | 8 | 14 | ||
| Gross Weight (Kg) | 10 | 16 | 10 | 16 | ||
