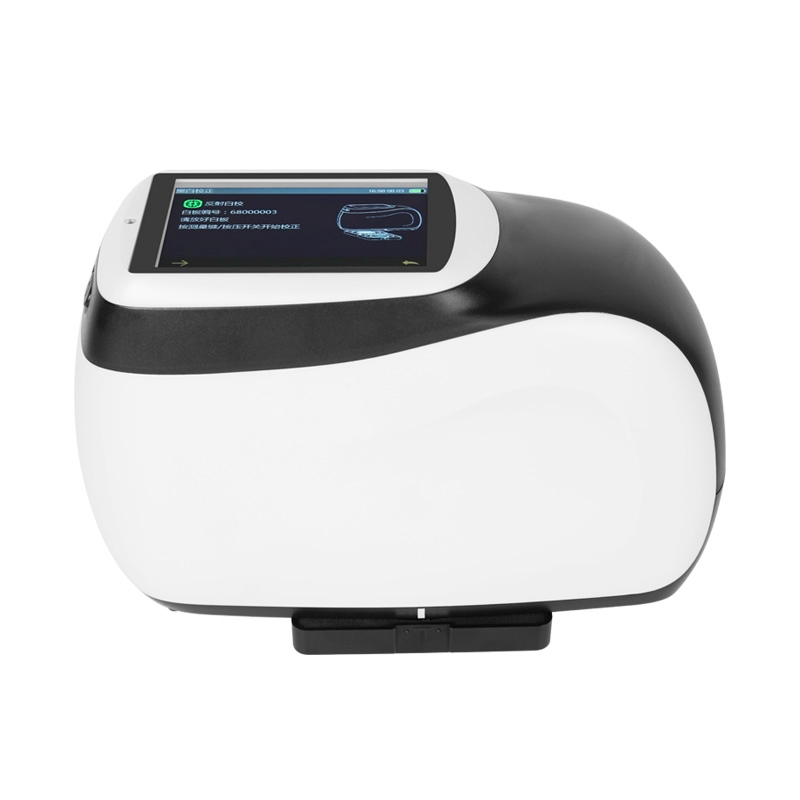

Description
The Multi-Angle Spectrophotometer with 8 Angles YR05491 // YR05492 is an advanced tool designed for precise color measurement across multiple angles. Utilizing industrial-grade MCU technology, this device offers exceptional performance in assessing color variations, even on curved surfaces. It is particularly effective for measuring the chromatic aberration of surfaces with complex special effects, such as metallics and pearlescents, by providing reliable and consistent data.
Market Price
The average market price for a multi-angle spectrophotometer of this caliber typically ranges from $18,100 to $18,800 USD. This price range reflects the superior technology and precision capabilities of the YR05491 // YR05492 models, making it an investment for industries requiring detailed color assessments.
Frequently Asked Questions
- How many measurement angles does it support? The YR05491 supports up to 8 angles, while the YR05492 model supports 12 angles, ensuring comprehensive color measurement.
- What is the lifespan of the light source? The full spectrum LED light source with blue enhancement lasts up to 5 years or approximately 3 million measurements.
- Is the device compatible with multiple languages? Yes, the interface supports Simplified Chinese, Traditional Chinese, and English.
Advantages and Disadvantages
Advantages: The device provides highly accurate color measurement across multiple angles, has a long-lasting light source, and includes advanced communication features like WIFI and Bluetooth 5.0. Moreover, the ergonomic and intuitive design makes it user-friendly. Disadvantages: Given its sophisticated features, the initial investment is high, which might not be suitable for small-scale operations.
Field Usage

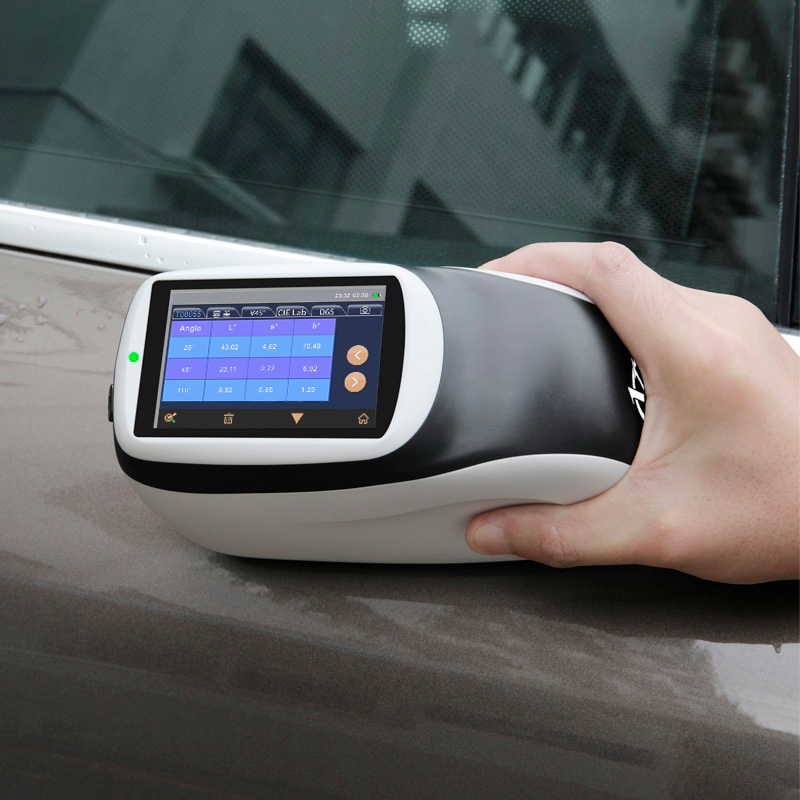

The spectrophotometer is crucial in industries where precise color matching is necessary, such as automotive, manufacturing, and design. For instance, it helps evaluate the color consistency of car paints, ensuring the product meets industry standards and consumer expectations.
Recommendations
To maximize the use of the Multi-Angle Spectrophotometer, regular calibration is advised to maintain accuracy with internal and external boards. Ensure that the environment is within the specified temperature and humidity range to avoid condensation. Leveraging the data analytics feature can significantly enhance productivity, enabling users to make insightful decisions.
Features
- Multi-angle measurement for precise color analysis.
- Full spectrum LED light source with blue enhancement.
- Ergonomic design with a capacitive touch screen.
- Supports multiple color spaces and measurement conditions.
- Includes advanced communication capabilities via WIFI and Bluetooth 5.0.
Technical Specifications
| Model | YR05491 | YR05492 |
| Measurement Geometry | 8 measurement angles (6 illumination sources, 2 receivers) | 12 measurement angles (7 illumination sources, 2 receivers) |
| Measure Angle | 45° Receiver： | 45° Receiver： |
| 45as-15°,45as15°,45as25°,45as45°,45as75°,45as110° | 45as-15°,45as15°,45as25°,45as45°,45as75°,45as110° | |
| 15°Receiver： | 15°Receiver： | |
| 15as-45°,15as-15° | 15as-45°,15as-15°,15as15°,15as-30°,15as45°,15as80° | |
| Conform to the standards: ASTM D 2244,E 308,E 1164,E 2194,
E2539,DIN 5033,5036,6174,6175-1,6175-2;ISO 7724, 11664-4 |
Conform to the standards: ASTM D 2244,E 308,E 1164,E 2194,
E2539,DIN 5033,5036,6174,6175-1,6175-2;ISO 7724, 11664-4 |
|
| SAE J 1545 | SAE J 1545 | |
| Application | Provide accurate and consistent color measurement for metallic,
pearlescent and other complex special effect color products |
Provide accurate and consistent color measurement for metallic,
pearlescent and other complex special effect color products |
| Light Source | Full spectrum LED light source with blue enhancement | Full spectrum LED light source with blue enhancement |
| Lamp Life | 5 years, 3 million times measurements | 5 years, 3 million times measurements |
| Spectrophotometric Mode | Concave Grating | Concave Grating |
| Sensor | 256 Image Element Double Array CMOS Image Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400nm-700nm | 400nm-700nm |
| Wavelength Interval | 10nm | 10nm |
| Measurement Range | 0~600% | 0~600% |
| Semiband Width | 10nm | 10nm |
| Measuring Aperture | Φ12mm | Φ12mm |
| Color Space | CIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99 | CIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99 |
| Color Difference Formula | ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE DIN6175 | ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE DIN6175 |
| Other Colorimetric Index | Flop Index, Int-Em | Flop Index, Int-Em |
| Observer Angle | 2°/10° | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),
F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),
F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
| Display | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset, Color simulation, Sample effect value, Effect difference value | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset, Color simulation, Sample effect value, Effect difference value |
| Measuring Time | Approx. 1 second for one angle | Approx. 1 second for one angle |
| Approx. 8 seconds for all angles | Approx. 12 seconds for all angles | |
| Repeatability | Spectral reflectance: Standard deviation within 0.08% | Spectral reflectance: Standard deviation within 0.08% |
| Chromaticity value: ΔE*ab 0.03 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | Chromaticity value: ΔE*ab 0.02 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | |
| Reproducibility | ΔE*<0.10,avg on the gray tile of BCRA tile set | ΔE*<0.10,avg on the gray tile of BCRA tile set |
| ΔE*<0.25,avg on the color BCRA tile set | ΔE*<0.25,avg on the color BCRA tile set | |
| Inter-instrument Error | 0.18ΔE*00(avg on reference Series II BCRA tile set) | 0.18ΔE*00(avg on reference Series II BCRA tile set) |
| Effect Parameters | Sparkle Grade(SG),Diffuse coarseness(DC) and Color Variation(CV) | Sparkle Grade(SG),Diffuse coarseness(DC) and Color Variation(CV) |
| Effect Measurement | 6 angles Sparkle Grade(SG),Color Variation(CV):15as-45°,15as-30°,15as-15°,15as15°,15as45°,15as80° | 6 angles Sparkle Grade(SG),Color Variation(CV):15as-45°,15as-30°,15as-15°,15as15°,15as45°,15as80° |
| 15d Diffuse coarseness(DC) | 15d Diffuse coarseness(DC) | |
| Effect Repeatability | Sparkle Grade(SG) Short-term repeatability: 0.12% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration) | Sparkle Grade(SG) Short-term repeatability: 0.12% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration) |
| Diffuse coarseness(DC) Short-term repeatability:e0.09% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration) | Diffuse coarseness(DC) Short-term repeatability:e0.09% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration) | |
| Effect Reproducibility | Sparkle Grade(SG) Reproducibility: 1.9% (10 times standard deviations) | Sparkle Grade(SG) Reproducibility: 1.9% (10 times standard deviations) |
| (avg on reference Series II BCRA tile set) | (avg on reference Series II BCRA tile set) | |
| Diffuse coarseness(DC) Reproducibility: 1.4% (10 times standard deviations)(avg on reference Series II BCRA tile set) | Diffuse coarseness(DC) Reproducibility: 1.4% (10 times standard deviations)(avg on reference Series II BCRA tile set) | |
| Trigger mode | Pressure sensing trigger, button trigger, software trigger | Pressure sensing trigger, button trigger, software trigger |
| Measuring Mode | Single measurement, average measurement (1-99), continuous measurement (1-99) | Single measurement, average measurement (1-99), continuous measurement (1-99) |
| Locating Mode | Color camera preview | Color camera preview |
| Dimension | L*W*H=195X83X128mm | L*W*H=195X83X128mm |
| Weight | About 1Kg | About 1Kg |
| Power | lithium-ion battery, 3.7V,3200mAh, Continuous test 6000 times within 8 hours of full charge | lithium-ion battery, 3.7V,3200mAh, Continuous test 6000 times within 8 hours of full charge |
| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Interface | USB, Bluetooth 5.0 | USB, Bluetooth 5.0 |
| Data Storage | 1000 pcs Standards,4000 pcs Samples | 1000 pcs Standards,4000 pcs Samples |
| Language | Simplified Chinese, Traditional Chinese, English | Simplified Chinese, Traditional Chinese, English |
| Operating Environment | 10℃ to 50℃, humidity does not exceed 85%, no condensation | 10℃ to 50℃, humidity does not exceed 85%, no condensation |
| Storage Environment | -20℃ to 50℃, humidity does not exceed 85%, no condensation | -20℃ to 50℃, humidity does not exceed 85%, no condensation |
| Calibration | Built-in white board parameters, external white board, black light trap, color board | Built-in white board parameters, external white board, black light trap, color board |
| Calibration Interval | 4 hours,8 hours,24 hours,Startup calibration | 4 hours,8 hours,24 hours,Startup calibration |

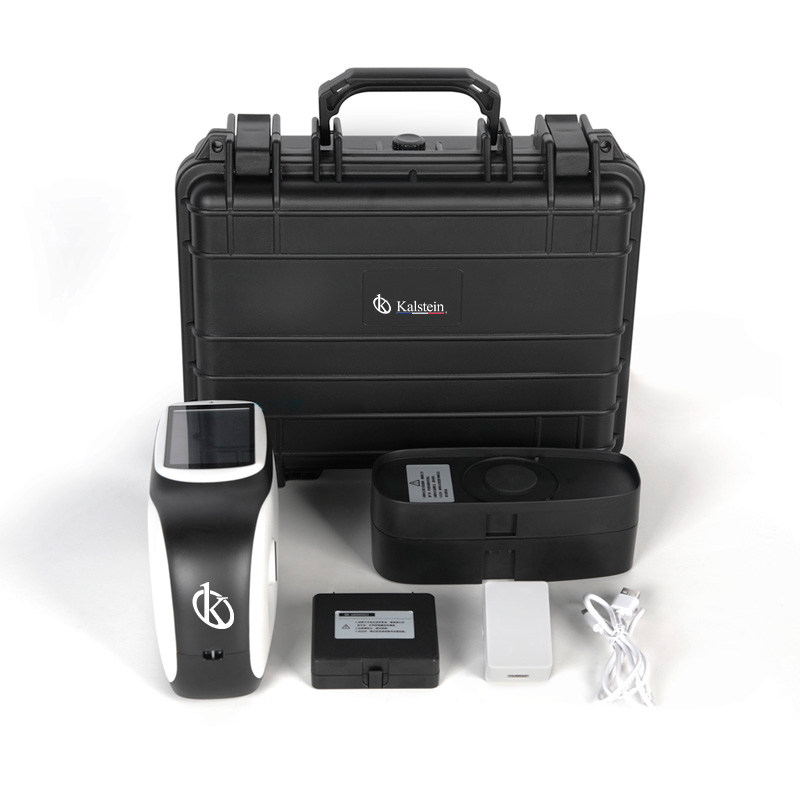

| Standard accessories | Power Adapter, USB Cable, User Guide,PC Software(download from the official website), Calibration Board, black light trap,Protective cap, wristband | Power Adapter, USB Cable, User Guide,PC Software(download from the official website), Calibration Board, black light trap,Protective cap, wristband |
| Optional Accessory | Micro-printer | Micro-printer |
| Notes | Technical parameters are for reference only, subject to actual sales products. | Technical parameters are for reference only, subject to actual sales products. |
