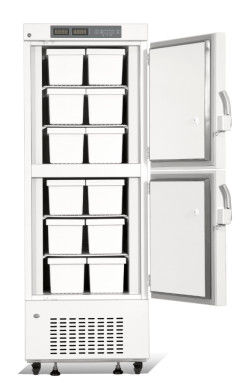

Medical Supplies Vertical Deep Freezer 358L -40 Degree Cold Storage YR05309
Medical Supplies Vertical Deep Freezer 358L -40 Degree Cold Storage YR05309 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Medical Supplies Vertical Deep Freezer 358L -40 Degree Cold Storage YR05309 offers an unparalleled level of reliability and performance for medical facilities and research centers. This advanced freezer provides an extensive temperature range of -20ºC to -40ºC, making it ideal for preserving sensitive biological samples and pharmaceuticals. Designed with a robust microprocessor control system, the unit ensures precise and uniform temperature maintenance, while its high-density CFC-Free urethane foam insulation minimizes energy consumption. With added features such as USB data logging and optional remote alarm ports, this freezer combines modern technology with user-friendly operation, all housed within a corrosion-proof cabinet.
Market Pricing
The price range for vertical deep freezers like the YR05309 generally varies from $3700 to $4500 USD. Investing in such a high-quality cold storage solution is crucial for laboratories and medical facilities aiming to maintain the integrity of their specimens and products. For an accurate quote, interested buyers are encouraged to utilize Kalstein Plus for an instant quotation tailored to their specific needs.
Frequently Asked Questions
Q: What is the capacity of the freezer?
A: The Medical Supplies Vertical Deep Freezer YR05309 has a capacity of 358 liters, making it suitable for large-scale storage needs.
Q: Is the freezer energy efficient?
A: Yes, with an energy consumption of 5.5 kWh/24h and high-density insulation, this freezer is designed for efficient operation.
Advantages and Disadvantages
Advantages:
- Wide temperature range suitable for various storage needs.
- Comprehensive alarm system for enhanced safety.
- Robust construction with corrosion-resistant materials.
- Optional USB data logging for temperature tracking.
Disadvantages:
- Manual defrosting needed, which may require additional maintenance time.
Product Use in the Field
In practical applications, the YR05309 freezer is widely used in laboratories, hospitals, and research facilities for the preservation of critical biological samples such as vaccines, enzymes, and tissue samples. Its reliable temperature control and alarm systems are vital for ensuring that the samples remain uncompromised over long storage periods.
Recommendations
For optimal performance and longevity of the Medical Supplies Vertical Deep Freezer, regular maintenance such as cleaning the condenser and checking the alarm system is recommended. Ensure that the freezer is placed in a well-ventilated area away from heat sources to maintain energy efficiency. Using the optional USB data logging feature can also help in monitoring and recording temperature changes for compliance and research purposes.
Features
- Multiple malfunction alarms for safety assurance.
- Optimized refrigeration with direct cooling system.
- Corrosion-resistant cabinet interior.
- Microprocessor control for precise temperature adjustment.
Technical Specifications
| Model | YR05309 | |
| Details | Shelf/drawer | Shelves/12 drawers |
| Cooling method | Direct cooling | |
| Defrost | Manual | |
| Refrigerant | R290 | |
| Energy consumption(kWh/24h) | 5.5 | |
| Noise(db) | 49 | |
| Ambient temperature(℃) | 10~32℃ | |
| Temperature range(℃) | -20~-40℃ | |
| Cooling system | Compressor brand/QTY | CUBIGEL/2 |
| Condenser | Wire tube | |
| Sensor | NTC | |
| Temperature controller | Microprocessor | |
| Display | Digital display | |
| Power Systerm | Voltage/frequency(V/Hz) | 220/50Hz |
| Power(W) | 310W | |
| Current(A) | 3 | |
| Material | Inside material | Color sprayed steel |
| Outside material | Color sprayed steel | |
| Insulation | PURF | |
| Dimension | Capacity(L/cu.ft) | 358/12.6 |
| NT./GT.(kg) | 138/178 | |
| Exterior size(W*D*H)(mm) | 720×830×1870 | |
| Interior size(W*D*H)(mm) | 466×636×625 | |
| Package size(W*D*H)(mm) | 780×920×1990 | |
| CBM | 1.43 | |
| 20GP/40GP/40HQ | 18/39/39 | |
| Alarm System | High/low temperature | Y |
| Power failure | Y | |
| Sensor error | Y | |
| Filter check | / | |
| Temperature controller failure | Y | |
| Low battery | / | |
| Condenser clean | / | |
| High ambient temperature | Y | |
| Door ajar | Y | |
| Power failure backup system(alarm) | 8H | |
| Accessories | Foot | Y |
| Castor | Y | |
| Inside door | 12DRAWERS | |
| Test hole QTY/diameter | Y | |
| USB port | Y | |
| Remote alarm port | Optional | |
Technical specifications
| Weight | 178 kg |
|---|---|
| Manufacturer | Kalstein |
