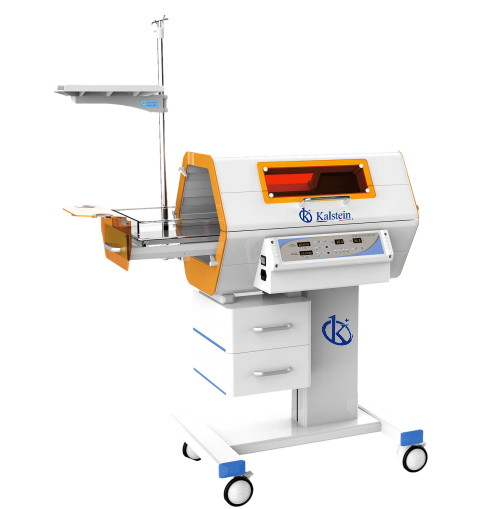

Infant Phototherapy Unit YR06223
Infant Phototherapy Unit YR06223 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
- Small size, light and high irradiation
- LED Blue light as the radiant source is irradiating uniformly and efficient
- Circle 360 double sides for more effective radiation
- Two phototherapy mode: up side phototherapy and down side phototherapy, can be use separately
- The electronic ballast makes the power supply adaptable and the power factor high
- Therapy time of phototherapy units from up and down side are displayed separately
- Automatically record each therapy time and total used therapy time
- Air temperature and skin temperature separately displayed
- Power off memory, sincere key for alarm, key-locking and self-examination function
- Four alarm functions for safety: Power failure, probe failure, over temperature, fan failure
- It is convenient to know the therapy of the infant through observation ports on both sides
- Adopt air spring structure and the hood is easy to open and close
- The aluminum-magnesium alloy is applied on the base, with two drawers and tray
Technical Specifications
| Model | YR06223 |
| Power supply | AC220V±10%, 50Hz±2% |
| Power input | ≤400VA |
| Blue light wavelength | 420nm~490nm |
| Circle 360 light radiation | 3700μW/cm2 |
| Up side light radiation | 3300μW/cm2 |
| Down side light radiation | 2400μW/cm2 |
| Life span of blue light tube | ≥20000 hours |
| Air temperature display range | 0-45.0°C |
| Skin temperature display range | 0-45.0°C |
| Time accuracy | 1min/2h |
| Count-up time range | 0-99.9 hours |
| Count-down time range | Imin~99.9 hours |
| Total cumulative time | 0-999999 hours |
| Mattress size | 613×300mm |
| Ambient temperature | 18°C ~ 30°C |
| Relative humidity | 30%~75% |
| Atmospheric pressure | 700hpa~1060hpa |
Technical specifications
| Weight | 80 kg |
|---|---|
| Manufacturer | Kalstein |
Video Infant Phototherapy Unit YR06223
Frequently asked questions
How to know the prices of Infant Phototherapy Unit YR06223?
To know the price of Infant Phototherapy Unit YR06223, please send us an email with your request through the contact form AQUI.
What are the delivery times for Infant Phototherapy Unit YR06223?
Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.
How to make a purchase of Infant Phototherapy Unit YR06223?
You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.
How does the warranty work for Infant Phototherapy Unit YR06223?
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.
Can I request a quote online for Infant Phototherapy Unit YR06223?
Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
