High cost-effective Portable Colorimeter YR05515
High cost-effective Portable Colorimeter YR05515 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.

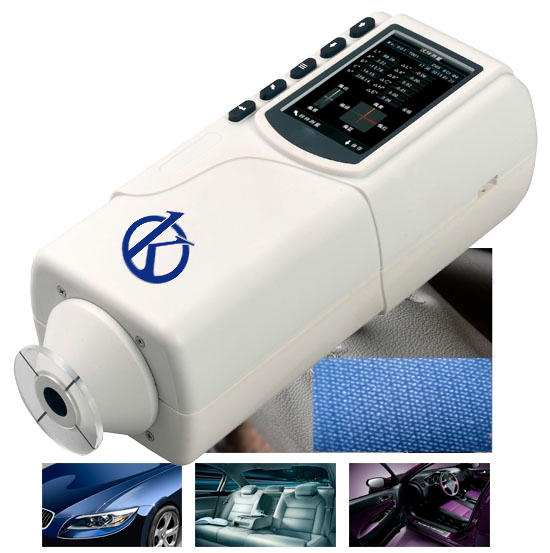

The High Cost-effective Portable Colorimeter YR05515 by Kalstein is designed with precision and affordability in mind, offering features such as a high-precision color measurement with dual apertures, including a Φ4mm tip aperture. It is well-suited for diverse samples and industries, such as plastics, electronics, paints, inks, textiles, and more. The YR05515 assists in accurately assessing color differences using CIE LAB color space, making it an invaluable tool for scientific research, education, and industrial applications.
Market Price Overview
When exploring the market for portable colorimeters, prices can vary significantly based on features, brand, and capabilities. Typically, one can expect prices to range from approximately $240 to $840. However, the YR05515 stands out due to its exceptional cost-effectiveness, combining advanced technology with competitive pricing. Reach out to us at Kalstein to get an up-to-date quote that fits your budget.
Frequently Asked Questions
How often does the colorimeter need to be calibrated? The device has built-in white plate parameters, eliminating the need for frequent calibration and ensuring rapid measurements.
What industries can benefit from the YR05515? This versatile colorimeter is ideal for various fields like textiles, food processing, cosmetics, and educational research.
What is the battery life of the device? The YR05515 features a rechargeable lithium-ion battery with high capacity, reducing the frequency of battery replacements.
Advantages and Disadvantages
The YR05515 offers several advantages: its dual aperture design allows for flexible measurement, quick calibration thanks to its built-in white plate parameters, and a rechargeable battery that increases convenience and reduces cost over time. However, the device may require a learning period for new users to familiarize themselves with its full capabilities.
Product Use in the Field
The YR05515 is particularly effective in scenarios involving quality control, where precise color matching and differentiation are crucial. Its portability and hand-held design make it conveniently usable across various locations— from labs to manufacturing floors, ensuring consistent and reliable measurement results.
Recommendations
For optimal use of the YR05515, regular battery charging is recommended to maintain operational readiness. Additionally, storing the device in a stable, moderate environment will enhance its performance longevity. To experience the full potential of the colorimeter, consider integrating Kalstein’s advanced data management solutions like Kalstein Plus for efficient color data handling.
Features
- Built-in white plate parameters for rapid measurement.

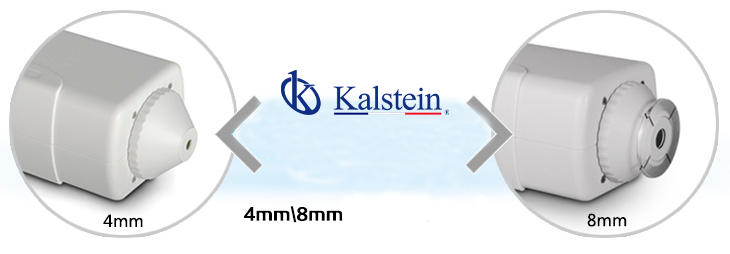

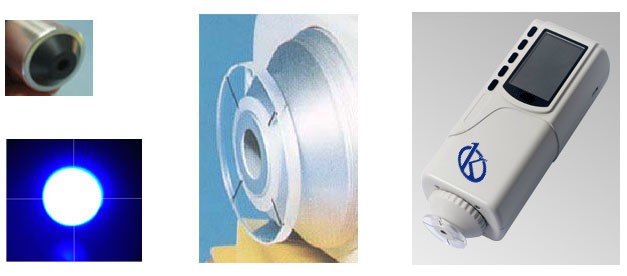

- Dual aperture system with Φ8mm flat and Φ4mm tip apertures.
- Rechargeable lithium-ion battery for cost efficiency.
- Compact handheld design for ease of use.
- Fashionable and practical appearance.
Technical Specifications
| Model | YR05515 |
| llluminating / Viewing Geometry | D/8° |
| Standard | CIE No.15, GB/T 3978 |
| Sensor | silicon photodiode |
| Measuring Aperture | 4mm |
| Color Space | CIE LAB, Lch |
| Observer | CIE 10° |
| Illuminant | D65 |
| Display Data | Colorimetric Value, Color Difference Value Storage |
| temperature | /Graph, PASS/FAIL Result, Color Offset |
| Measuring Time | 1.5 s |
| Repeatability | ΔE*ab ≤ 0.03 (Average of 30 measurements of standard white plate) |
| Dimension | 205*67*80mm |
| Errors between each instrument | ΔE*ab 0.4 |
| Weight | 400g |
| Battery | rechargeable lithium-ion battery 3. 7V@ 3200mAh |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Screen | TFT 2.8 inch(16: 9) |

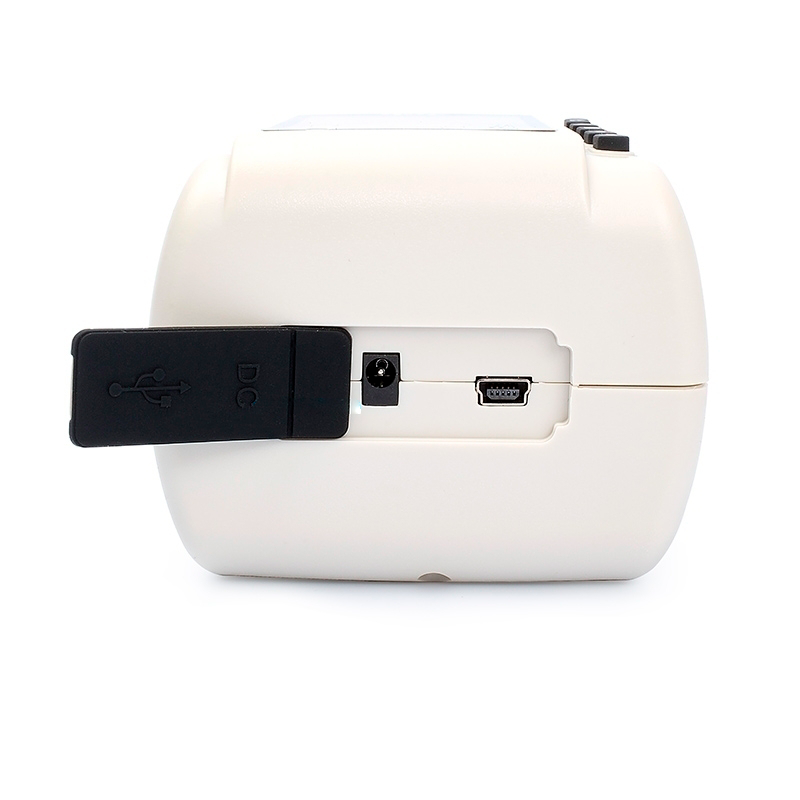

| Interface | USB |
| Storage | 100 Standards, 10000 Samples |
| Operating Temperature | 0-40°C(32-104°F) |
| Storage temperature | -20-S0°C(-4-122°F) |
| Optional accessory | miniature thermal printer, powder test box |
Technical specifications
| Weight | 1 kg |
|---|---|
| Manufacturer | Kalstein |
