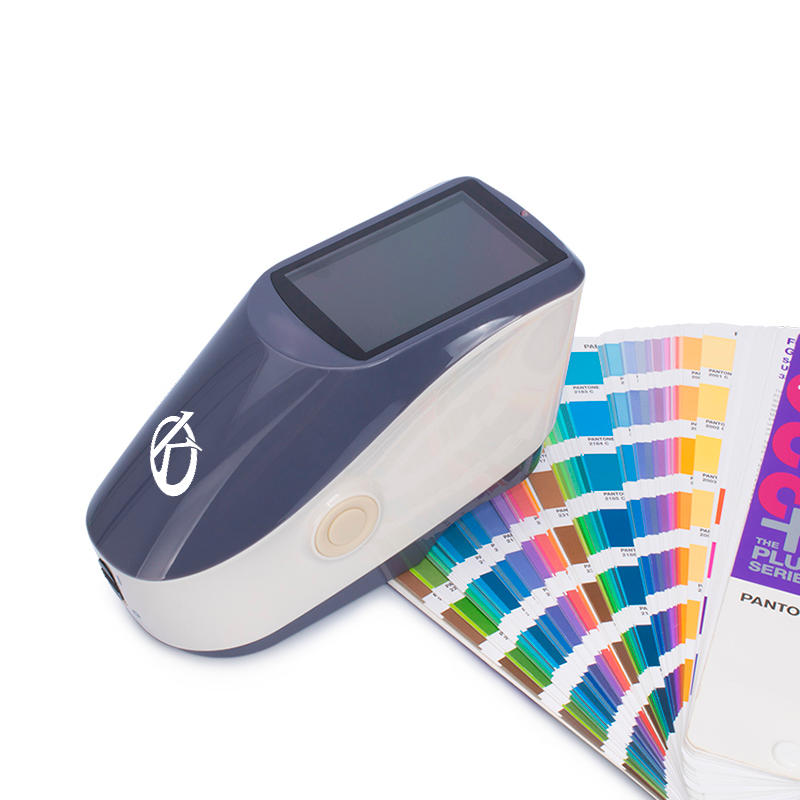

Grating Spectrophotometer with 20mm Aperture YR05503
Grating Spectrophotometer with 20mm Aperture YR05503 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.
The Grating Spectrophotometer with 20mm Aperture YR05503 is a cutting-edge tool launched by Kalstein, designed specifically for measuring the brightness factor and color coordinates of traffic signs, markings, and reflective films. With a unique 20mm aperture and adherence to GB 2893 and GB/T 18833 standard colors, it ensures precise analysis and color transmission. It is ideally suited for industries such as paints, inks, textiles, and printing where color transfer and quality control are critical. It even offers the ability to manually customize the rectangular tolerance of polygons, a feature that sets it apart from competitors. If you're looking to enhance your workflow efficiency and accuracy, consider trying out the YR05503 and request a quote or generate one automatically through Kalstein Plus today!
Market Pricing
The average market price for spectrophotometers like the Grating Spectrophotometer with 20mm Aperture YR05503 ranges between $3700 and $4500. This makes it a prudent investment for professionals seeking reliability and superior performance without compromising on budgets.
Frequently Asked Questions
What industries can benefit from this spectrophotometer? This device is particularly beneficial for traffic sign production, paint, ink, textiles, garments, and the printing industry.
Can it measure fluorescence sample colors? Yes, the YR05503 is equipped to accurately measure fluorescence sample colors.
Is it portable? Yes, with a weight of about 600g, this spectrophotometer is easy to handle and transport.
Advantages and Disadvantages
Advantages: The Grating Spectrophotometer YR05503 boasts high precision with a fast measurement time of approximately 1.5 seconds. Its compact design makes it exceptionally portable. The device also supports comprehensive color space and color difference formula options.
Disadvantages: While the spectrophotometer is versatile, it may require periodic calibration to maintain accuracy, which can be an added task for some users.
Field Usage
In real-world applications, the YR05503 is invaluable in producing consistent and standardized colors, particularly in traffic sign manufacturing. Its precise color measurement capabilities ensure compliance with regulatory color standards, crucial for road safety. It also aids in quality control within factories, ensuring every batch of material meets stringent color specifications.
Recommendations
For optimal performance, ensure regular calibration using the provided calibration boards. Store the device according to the recommended environmental specifications to prolong its lifespan. Investing in optional accessories, such as the micro printer and universal test components, can further extend the versatility of your spectrophotometer.
Features
- Special 20mm aperture designed for traffic signs
- High precision color measurement
- Compatible with multiple industry standards
- Supports extensive color metric index and color space options
- Equipped with USB and Bluetooth 4.0 interface for easy data transfer
Technical Specifications
| Model | YR05503 |
| Illumination/Observation system | 45/0(45 ring-shaped illumination, vertical viewing); |
| Comply with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893、GB/T 18833 | |
| Features | 20mm aperture special design for traffic signs , It is used to measure the brightness factor and color coordinates of traffic signs, markings and reflective films. It contains GB 2893 and GB/T 18833 standard colors. It can customize the rectangular tolerance of polygons manually. |
| It is used for accurate analysis and transmission of laboratory color, also for Fluorescence sample color measurement . | |
| Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control. | |
| Integrating Sphere Size | Φ48mm |
| Light Source | Combined LED Light, UV Light |
| Spectral separation device | Concave Grating |
| Detector | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400~700nm |
| Wavelength Pitch | 10nm |
| Half Bandwidth | 10nm |
| Reflectance Range | 0~200% |
| Measuring Aperture | Φ20mm |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV，HunterLAB,βxy |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE（Hunter） |
| Other Colorimetric Index | WI(ASTM E313，CIE/ISO,AATCC,Hunter)， |
| YI(ASTM D1925，ASTM 313), | |
| MI (Metamerism Index), | |
| Staining Fastness, Color Fastness, Color Strength, Opacity,Supporting Colorimetric Polygon Tolerance | |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4，F5，F6,F7(DLF),F8,F9，F10(TPL5),F11(TL84),F12(TL83/U30) |
| Display Data | Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset |
| Measurement Time | About 1.5s |
| Repeatability | Spectral reflectance: Standard deviation within 0.1% (400 nm to 700 nm: within 0.2%) |
| Chromaticity value:within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | |
| Inter-instrument Error | Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles) |
| Measurement mode | Single Measurement, Average Measurement(2-99) |
| Size(L*W*H) | 184*77*105mm |
| Weight | About 600g |
| Power source | Li-ion battery. 5000 measurements within 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements |

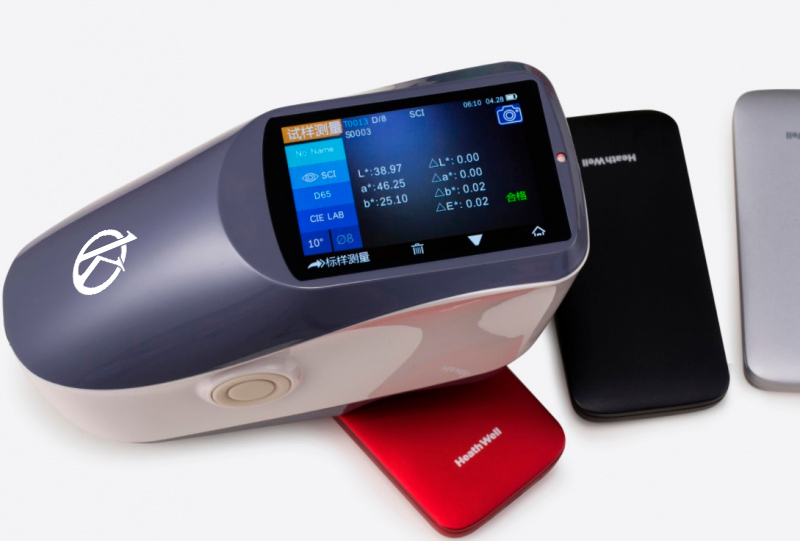

| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Interface | USB, Bluetooth 4.0 |
| Data memory | Standard 1000 Pcs, Sample 30000 Pcs |
| Language | Chinese,English |
| Working Environment | Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m |
| Storage Environment | Temperature: -20~50℃; Humidity: 0~85% (No Condensation)） |

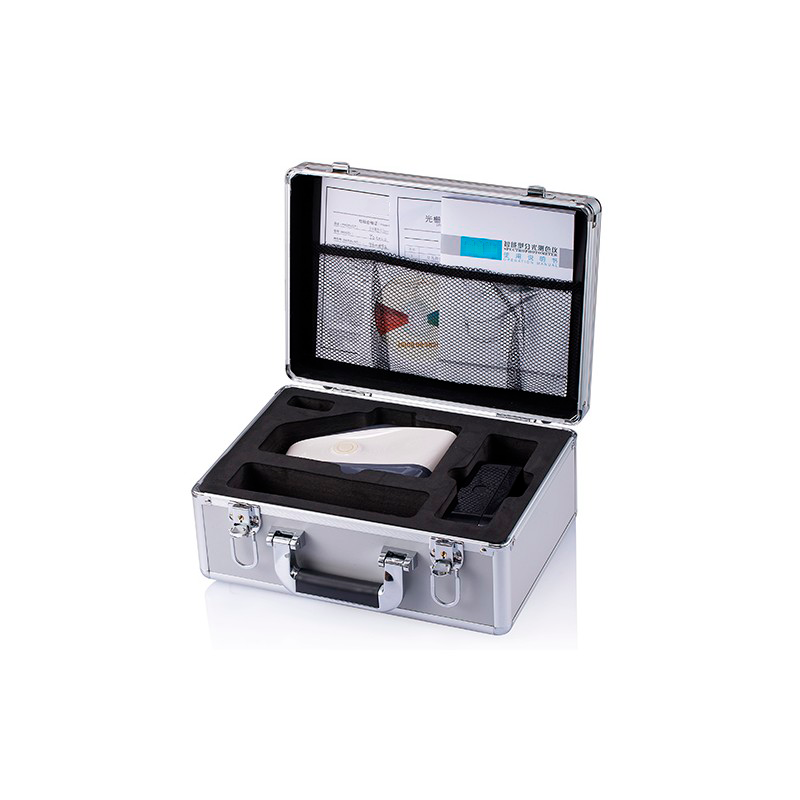

| Standard Accessory | Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration Board, Protective Cover. |
| Optional Accessory | Micro Printer, Powder Test Box, Universal test components, Locating Plate |
| Notes: The specifications are subject to change without notice. | |
