Color Light Box YR05520 // YR05523
Color Light Box YR05520 // YR05523 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.

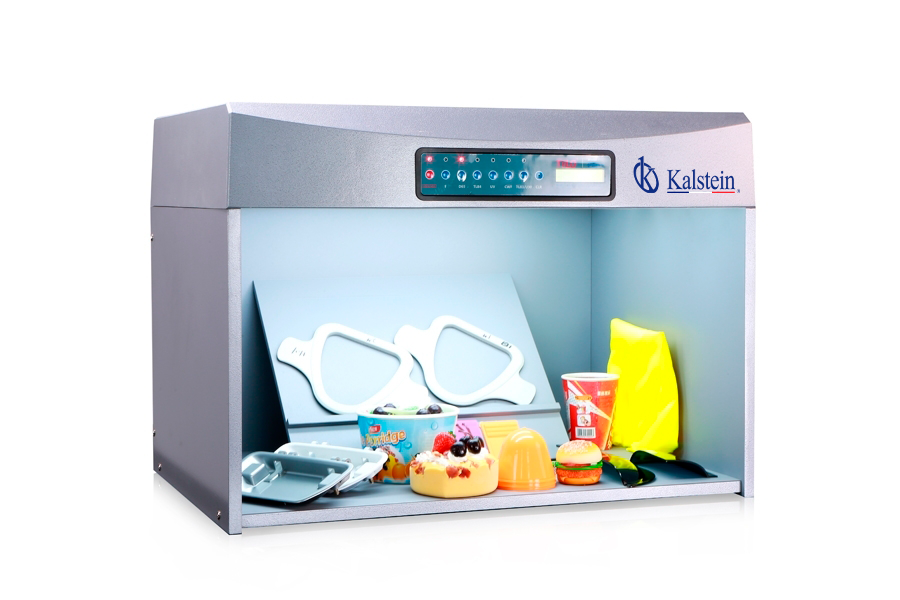

The Color Light Box YR05520 // YR05523 represents the pinnacle of color evaluation technology, expertly crafted for industries where precision is paramount. Whether you're in the graphic arts or automotive sectors, this advanced tool offers up to six distinct light sources, including D65, TL84, CWF, TL83/U30, F, and UV. With its sophisticated microcomputer technology, seamless automatic transitions between light sources are ensured, providing consistent color decisions in varied lighting conditions. The user-friendly interface, complete with individual switches and an elapsed time meter for lamp replacement optimization, makes it an indispensable asset for efficient color evaluations.
Market Price
The market price for the Color Light Box YR05520 // YR05523 generally ranges between $500 to $800 USD, depending on specific model configurations. Investing in this equipment is a strategic decision for companies emphasizing high-precision quality control and compliance with international standards, such as ASTM D1729 and ISO3664. To get an exact price and explore current promotions, we encourage you to request a personalized quote through the Kalstein Plus platform.
Frequently Asked Questions
- What light sources are included in this model?
This model incorporates D65, TL84, F, UV, CWF, and TL83 light sources, catering to diverse color evaluation needs. - Does the light box require preheating?
No, preheating is unnecessary. The equipment operates flicker-free, ready for immediate and reliable evaluations. - Can the dimensions be customized?
Yes, dimensions can be customized to fit specific customer requirements, ensuring optimal workspace integration.
Advantages and Disadvantages
The Color Light Box YR05520 // YR05523 offers several advantages, including a wide array of light sources, low energy consumption, and non-delayed light switching, all of which facilitate quick and precise evaluations essential for consistent color decisions. The potential downside is its weight, which may reach up to 28.9 kg in certain models, requiring specific support for installation.
Product Usage in the Field
This light box is ideal for industries where color accuracy is critical. In the printing and textile sectors, maintaining consistent color control guarantees that the final output meets quality standards. Its ability to switch seamlessly among different light sources enables users to evaluate how colors appear under varied lighting conditions, thereby reducing production errors and boosting customer satisfaction.
Recommendations
To extend the lifespan and maximize the effectiveness of the Color Light Box YR05520 // YR05523, regular maintenance, such as lamp cleaning, is advised. Monitoring the usage counter ensures stable light intensity, enhancing color evaluation precision. It's also prudent to keep spare lamps available to maintain uninterrupted operation. If your company seeks a reliable and precise color management solution, request a quote through Kalstein Plus for more information.
Features
- Up to six distinct light sources including D65, TL84, F, UV, CWF, and TL83.
- User-friendly interface with individual switches.
- Automatic light source transitions through microcomputer technology.
- Energy-efficient with low consumption lights.
- Elapsed time meter for optimized lamp replacement.
- Compliance with international standards ASTM D1729 and ISO3664.
Technical Specifications
| Model | YR05520 | YR05521 | |
| Light source | D65, TL84, UV, F, CWF, TL83 | D65, TL84, UV, F, CWF | |
| Dimensions(W*D*H) | 695x552x502 mm | 695x552x502 mm | |
| Inner Size(W*D*H) | 665x490x360 mm | ||
| Voltage | 220V/50Hz - 110V/60Hz | ||
Light sources Configuration | D65 | 2 PCS | 2 PCS |
| TL84 | 2 PCS | 2 PCS | |
| F | 4 PCS | 4 PCS | |
| UV | 1 PCS | 1 PCS | |
| CWF | 2 PCS | 2 PCS | |
| TL83 | 2 PCS | / | |
| Weight | 19.5 kg | 19.5 kg | |

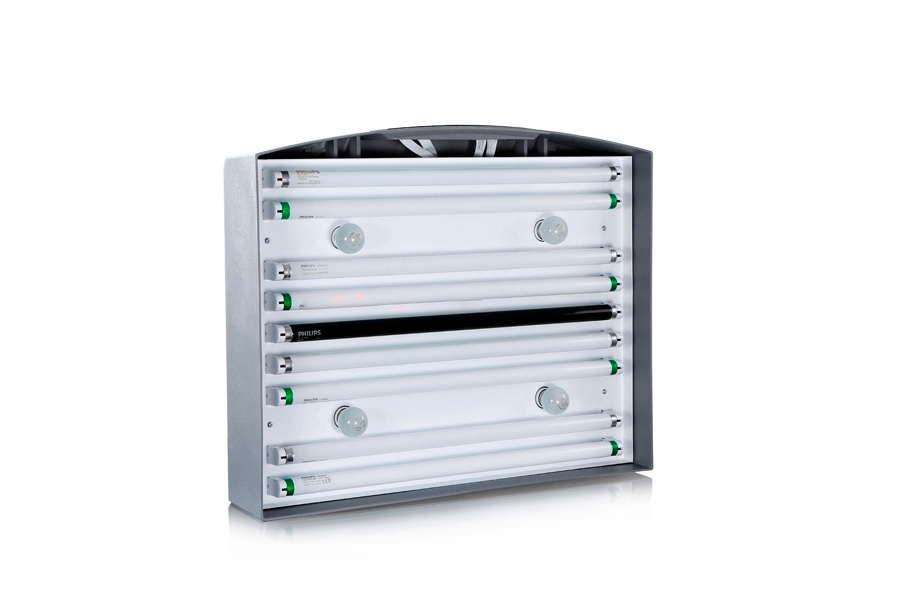

Light Source Specifications | |||
| Light Source | Color Light Box Application | Color temperature(k) | |
| D65 | International standard Artificial Daylight | 6500 | |
| TL84 | Applied to stores in Europe, Japan and China | 4000 | |
| CWF | (Cool White Fluorescent)American Standard | 4150 | |
| F | "Sun-setting Light Yellow" incandescent light source (imitation of sunset) | 2700 | |
| UV | Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments | Wavelength:365nm | |
| TL83 | Applied to stores in Europe | 3000 | |
| Remarks: Optional tubes D50, D75, U30, U35, A | |||
Technical specifications
| Dimensions | L 69 × W 83 × H 32 cm |
|---|---|
| Manufacturer | Kalstein |
Available models
Video Color Light Box YR05520 // YR05523
Frequently asked questions
How to know the prices of Color Light Box YR05520 // YR05523?
To know the price of Color Light Box YR05520 // YR05523, please send us an email with your request through the contact form AQUI.
What are the delivery times for Color Light Box YR05520 // YR05523?
Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.
How to make a purchase of Color Light Box YR05520 // YR05523?
You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.
How does the warranty work for Color Light Box YR05520 // YR05523?
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.
Can I request a quote online for Color Light Box YR05520 // YR05523?
Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
