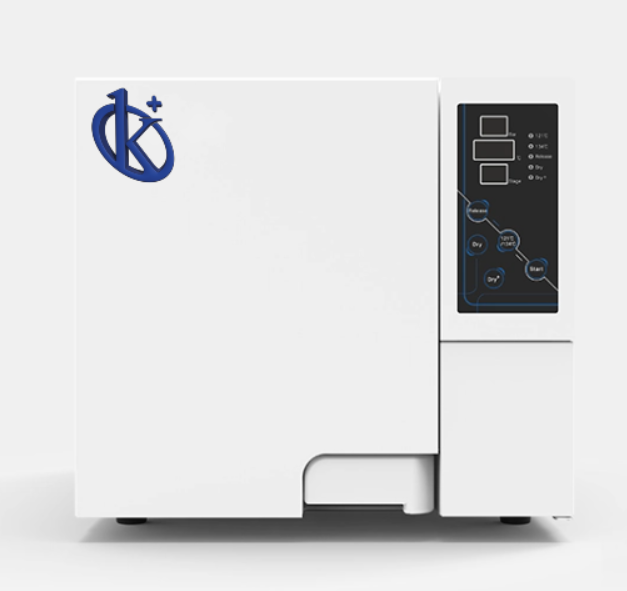

Class N Benchtop Autoclave YR03395 // YR03400

Manufacturer: Kalstein

Description

The Class N Benchtop Autoclave YR03395 / YR03400 is an optimal choice for medical, dental, and laboratory settings that demand reliable and efficient sterilization. Designed for users who value simplicity and effectiveness, this model operates with preprogrammed cycles at 134 °C and 121 °C, perfect for disinfecting solid instruments without cavities. Its manual filling feature allows extensive control over the sterilization process, while a clear LED screen provides real-time updates on temperature, pressure, and alerts. Compact and user-friendly, it is perfect for facilities needing frequent cycles but limited by space or budget.

Market Pricing

The Class N Benchtop Autoclave falls within an accessible price range, making it a valuable addition to small clinics and laboratories. Market research shows that units like this are typically priced between 800 USD and 1600 USD, offering incredible value for facilities seeking cost-effective sterilization solutions. For a precise quote tailored to your needs, visit the Kalstein Plus platform for a personalized experience.

Frequently Asked Questions

How often do I need to fill the autoclave with water? The autoclave requires a manual fill before every cycle to ensure proper operation and effective sterilization.

Can it sterilize wrapped instruments? This model is designed for solid and unwrapped instruments. For wrapped instruments, consider models with built-in steam generators.

Advantages and Disadvantages

One of the main advantages of the YR03395 / YR03400 is its compact size, which saves space in limited environments. It features an intuitive interface and low maintenance costs, making it highly cost-effective. A noted disadvantage is the need for manual filling, which may limit its use in high-demand, unsupervised settings.

Field Use

This autoclave is extensively used in dental offices, veterinary clinics, and small laboratories where quick, efficient sterilization is paramount. Its ease of use and reliability ensure it meets high biosecurity standards while maintaining operational efficiency. Simply load the instrument, select the desired cycle, and start the process for fast results.

Recommendations

For optimal performance and extended lifespan, it is recommended to use distilled water to fill the autoclave. Regular internal cleaning and avoiding overloading the chamber are crucial steps to maintain functionality. Always verify parameters before each cycle to guarantee effective sterilization.

Features

  • Compact and space-saving design
  • LED screen with real-time cycle information
  • Preprogrammed cycles at 134 °C and 121 °C
  • Manual water chamber fill for user control
  • Highly intuitive and user-friendly interface

Technical Specifications

Model YR03395/YR03396 YR03397 /YR03398 YR03399 /YR03400
Voltage. Frequency 220/110V, 50/60z
Power 1500W
Chamber Volume appr. 18L (E318/E418/E518), appr. 23L (E323/E423/E523)
Chamber Dimensions Ø247x350mm (18L), Ø247x450mm (23L)
Tray Size (W x H) 192x285mm (18L) ,192x380mm (23L)
Tray Material Aluminum
Number of Trays 2/ Max. 4
Weight 32kg/36kg 33kg/37kg 33.5kg/37.5kg
Overall Dimensions (W x H x D) 483x450x515 mm (E318/E418/E518)
483x450x615 mm (E323/E423/E523)
Sterilization Program 134℃/210Kpa, 121℃/110Kpa
Sterilization Time 134℃, Default 30min (30~60min adjustable)
121℃, Default 10min (10~20min adjustable)
Dry No Default 60min (1~60min adjustable) Default 60min (1~60min adjustable)
Dry + No No Default 60min (1~60min adjustable)

Additional information

Weight N/A
Model

YR03395, YR03396, YR03397, YR03398, YR03399, YR03400
