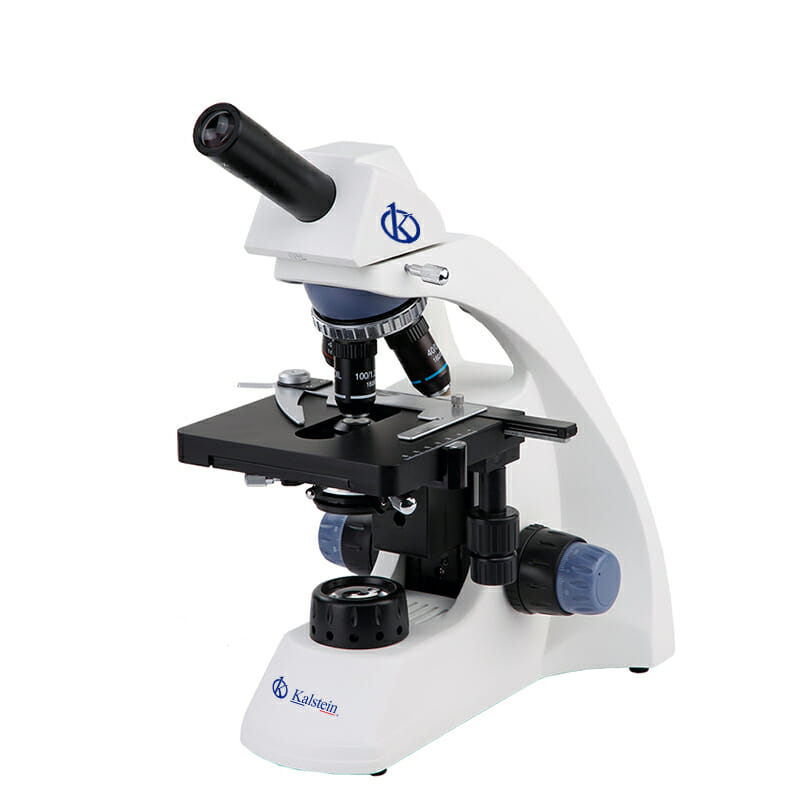

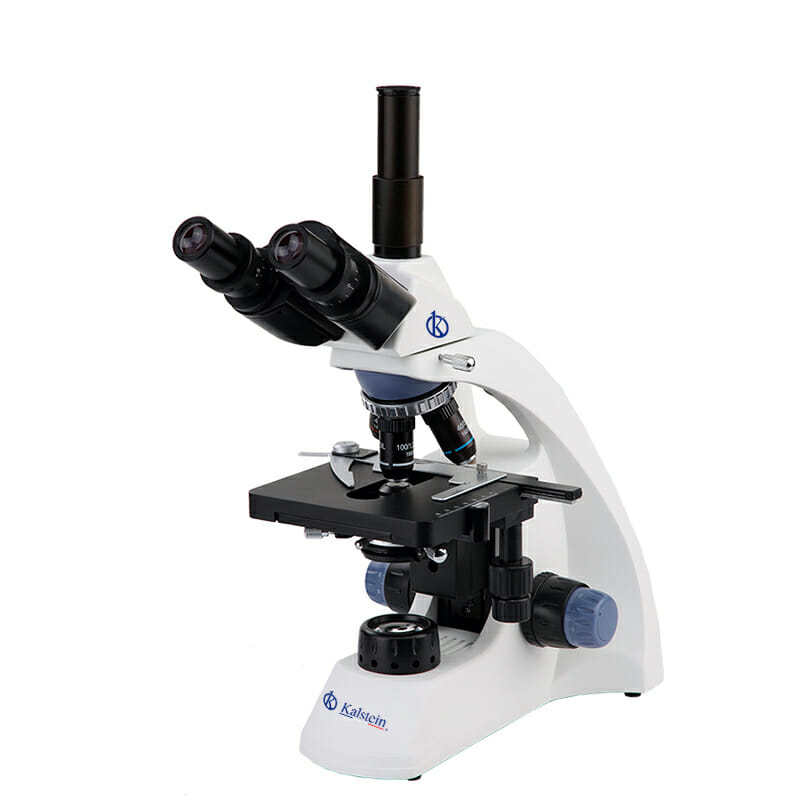

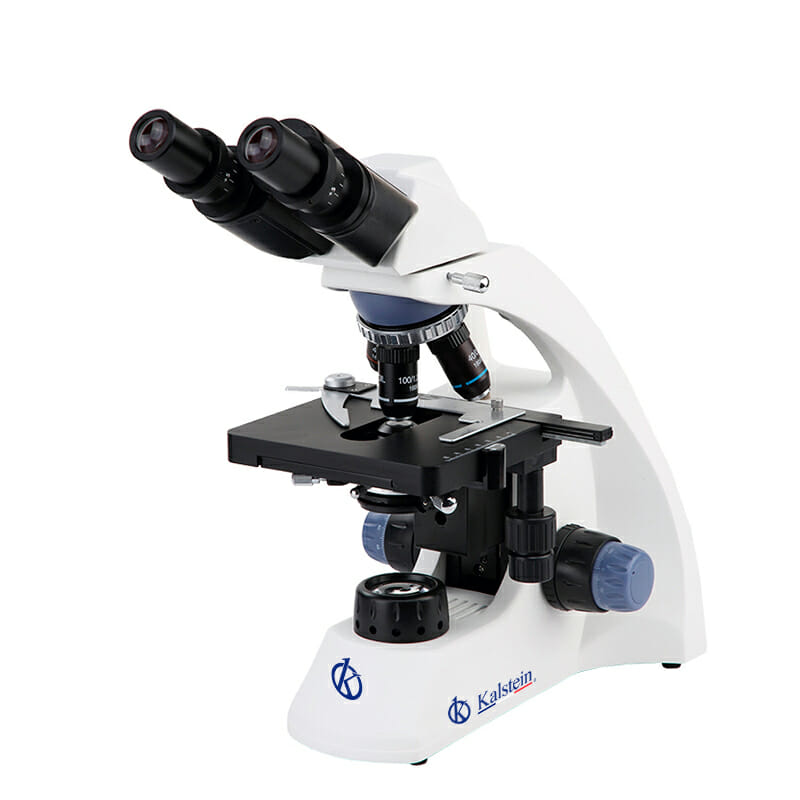

Biological Microscope YR0242-M // YR0242-T
Biological Microscope YR0242-M // YR0242-T — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.
The Biological Microscope YR0242-M // YR0242-T is an advanced optical instrument designed to meet the rigorous demands of modern laboratories and educational institutions. With options for monocular, binocular, trinocular, and teaching heads, this microscope offers versatility and adaptability to various applications. Its precision-engineered quadruple nosepiece ensures accuracy during observation, while the integrated mechanical stage provides stability and ease of use. The high-brightness 3W LED with adjustable illumination and the Abbe condenser with a numerical aperture of 1.25 enhance the clarity and detail of specimens. This microscope presents an ideal choice for professionals seeking high-quality imaging and reliable performance.
Price in the Market
The Biological Microscope YR0242 series falls within a competitive price range in the optical equipment market. Typically, microscopes of this calibre are priced between 340 and 1,000 USD. However, for customers looking to make an informed decision, we recommend utilizing the Kalstein Plus platform to receive a precise quote and explore financing options tailored to your needs.
Frequently Asked Questions
What types of head configurations are available? The YR0242 series offers monocular, binocular, trinocular, and teaching head configurations to suit different applications and preferences.
Is the brightness of the LED light adjustable? Yes, the 3W LED light source includes an adjustable brightness feature to provide optimal lighting conditions for specimen observation.
Advantages and Disadvantages
Advantages: The microscope boasts a versatile design with multiple head options and superior optical clarity provided by its achromatic objectives. Its sturdy mechanical stage and precision nosepiece enhance user experience. The LED light offers energy efficiency and adjustable brightness.
Disadvantages: The YR0242 models have limited digital connectivity features, which might require additional adapters for certain applications.
Product Usage in the Field
In practical scenarios, the Biological Microscope YR0242 is used extensively in clinical and research laboratories for observing fine details of cell structures, tissues, and microorganisms. Its adaptability with different head types allows users to choose the most suitable configuration for their specific tasks, making it an invaluable tool for both educational and professional environments.
Recommendations
For optimal performance and longevity of the YR0242 microscope, it is recommended to regularly clean the optics with appropriate solutions and store the device in a dust-free environment. Moreover, using the adjustable settings to meet specific observational needs will enhance user experience and results.
Features
- Monocular, binocular, trinocular, and teaching heads available.
- Quadruple nosepiece with precise click stop.
- Integrated double layer mechanical stage (142x132mm) with a 75x50mm moving range.
- Adjustable high-brightness 3W LED light and Abbe condenser N.A.1.25.
- Achromatic optical system for enhanced image clarity.
Technical Specifications
| Model No. | YR0242-M | YR0242-B | YR0242-T |
| Video Adapter | —— | C-Mount 0.3x | —— |
| Power Supply Type | AC 110V-240V | —— | |
| Transmit Light | Halogen 6V20W or LED Optional | ||
| Light Source Type | Halogen | ||
| Condenser N.A. | 1.25 | ||
| Condenser Type | Abbe | ||
| Condenser Features | Rack & Pinionↆ↑, Filter Holder, Center Adjustable | ||
| Focusing Scale | 0.002mm | ||
| Focusing Range | 36mm | ||
| Focusing Type | Coaxial Coarse & Fine | —— | |
| Focusing Features | Safety Stop Screw Tension Adjustable | ||
| Working Stage Moving | 75*50mm | ||
| Working Stage Size | 132*142mm | ||
| Working Stage Type | 2 Layers Mechanical | ||
| Objective | Achromatic 4x, 10x, 40x(S), 100x(O,S) | ||
| Objective Type | Achromatic | ||
| Nosepiece Holes | 4 Holes | ||
| Nosepiece Features | Inward | ||
| Eyepiece | WF10x/18mm | ||
| Eyepiece Diameter | 23.2mm | ||
| Head Interpupillary | 54~75mm | ||
| Head Rotation | Head Rotate 360° | —— | |
| Head Inclination | 30° | —— | |
| Head Type | Monocular | Binocular | Seidentopf Trinocular |
| Standard Magnification | 40x-1000x | —— | |
| Optical System | Achromatic | ||
| Standard Function | BF | —— | |
Technical specifications
| Weight | 6 kg |
|---|---|
| Manufacturer | Kalstein |
