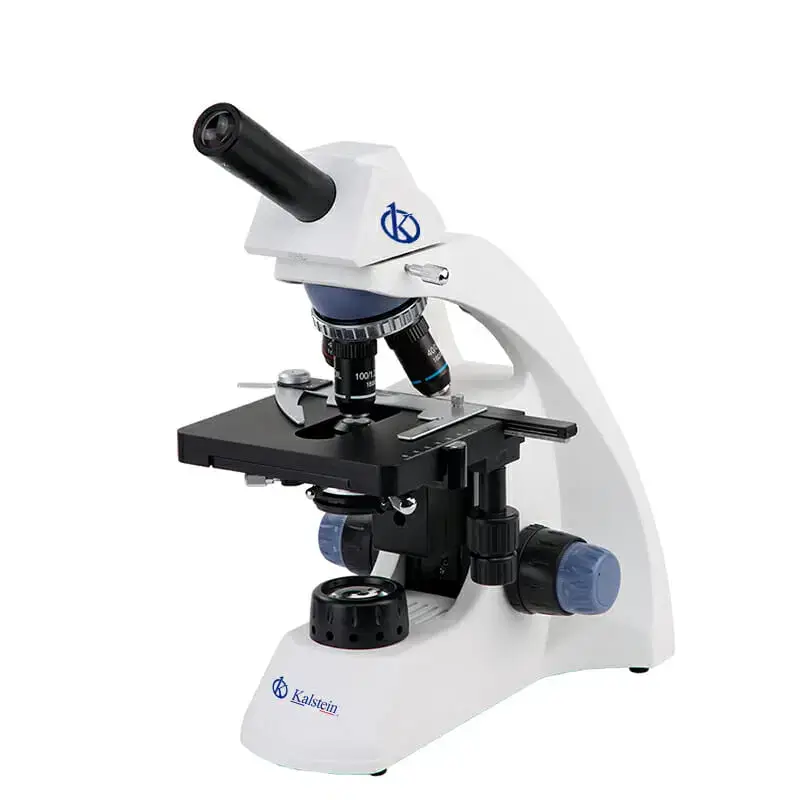

Understanding the YR0242-T Microscope: A Technical Glossary
The YR0242-T microscope is a sophisticated optical device designed for a range of applications in clinical, educational, and industrial settings. Understanding the technical terms associated with this model is crucial for effective operation and maintenance. This article provides a comprehensive glossary of key terminology related to the YR0242-T microscope, ensuring users are well-equipped with the knowledge needed to utilize this advanced equipment.
Technical Specifications of the YR0242-T
| Model | Brand | Category | Price (USD) |
|---|---|---|---|
| YR0242-T | Kalstein | Microscope | 196.00 |
Key Terms and Their Relevance
| Term | Definition |
|---|---|
| Trinocular Head | A microscope head that allows for the attachment of cameras for imaging while still providing vision through the oculars. |
| Abbe Condenser | An optical device that focuses light onto the sample to enhance illumination and clarity of the image. |
| Mechanical Stage | A platform that holds the microscope slides securely, allowing for precise movement in both X and Y directions. |
| Optical System | The arrangement of lenses and light sources that determine the quality of the image produced by the microscope. |
| Diopter Adjustment | A feature that allows users to compensate for differences in vision between their two eyes by adjusting the focus of one ocular. |
| Infinity-Corrected Optics | A system designed to eliminate optical aberrations, improving image clarity and detail across the entire field of view. |
| Field of View (FOV) | The observable area seen through the microscope, which is affected by the eyepiece and objective combinations used. |
| Working Distance | The distance between the lens of the objective and the specimen when the sample is in focus. |
| Resolution | The ability of the microscope to distinguish between two closely spaced points, affecting the clarity of the image. |
| Depth of Field | The thickness of the specimen layer that remains in focus at one time, which can be adjusted for different applications. |
Understanding Microscope Performance: Related Terminology
To operate the YR0242-T efficiently, familiarity with performance-related terms is essential. These terms provide context for how the microscope functions and what users can expect in terms of image quality and usability.
Frequently Asked Questions
What is the significance of the trinocular head in the YR0242-T microscope?
The trinocular head allows for simultaneous viewing through the eyepieces while providing an additional port for camera attachments. This feature is particularly beneficial for documentation and sharing observations during experiments.
How does the Abbe condenser enhance the performance of the microscope?
The Abbe condenser focuses light onto the specimen, which enhances illumination and improves image contrast. This results in clearer and more detailed images, which are essential for accurate analysis in various applications.
Why is the mechanical stage important in the YR0242-T microscope?
The mechanical stage provides stability and allows for precise movement of slides. This is crucial for scanning samples systematically and ensuring that all areas of interest are analyzed without losing focus or disrupting the sample's position.
What advantages do infinity-corrected optics provide?
Infinity-corrected optics reduce optical aberrations and provide a flatter field of view. This means users can expect clearer and more accurate images across the entire viewing area, making it easier to observe fine details of the specimen.
How can users adjust diopter settings on the YR0242-T?
Users can adjust the diopter settings by rotating the diopter adjustment ring located on the eyepiece. This compensates for any differences in vision between the user's eyes, ensuring optimal focus and viewing comfort.
What is the typical working distance for the YR0242-T microscope?
The working distance for the YR0242-T microscope varies depending on the objective lens used, but it is typically designed to offer adequate space for manipulating samples without sacrificing image quality.
How does resolution impact the functionality of the YR0242-T microscope?
Resolution impacts the ability to distinguish between closely spaced details in a specimen. Higher resolution means clearer differentiations between structures, which is critical in fields such as pathology and microbiology for accurate evaluations.
For those interested in acquiring this advanced microscope, please request a quote on Kalstein Plus.
