Understanding Measurement Interpretation with the YR06692 Freeze Dryer
The YR06692 Freeze Dryer is not only a cutting-edge piece of laboratory equipment but also a vital tool for achieving precise results in various applications. This article focuses on the interpretation of measurement readings and results, providing a comprehensive understanding of how to effectively utilize the YR06692 for optimal outcomes.

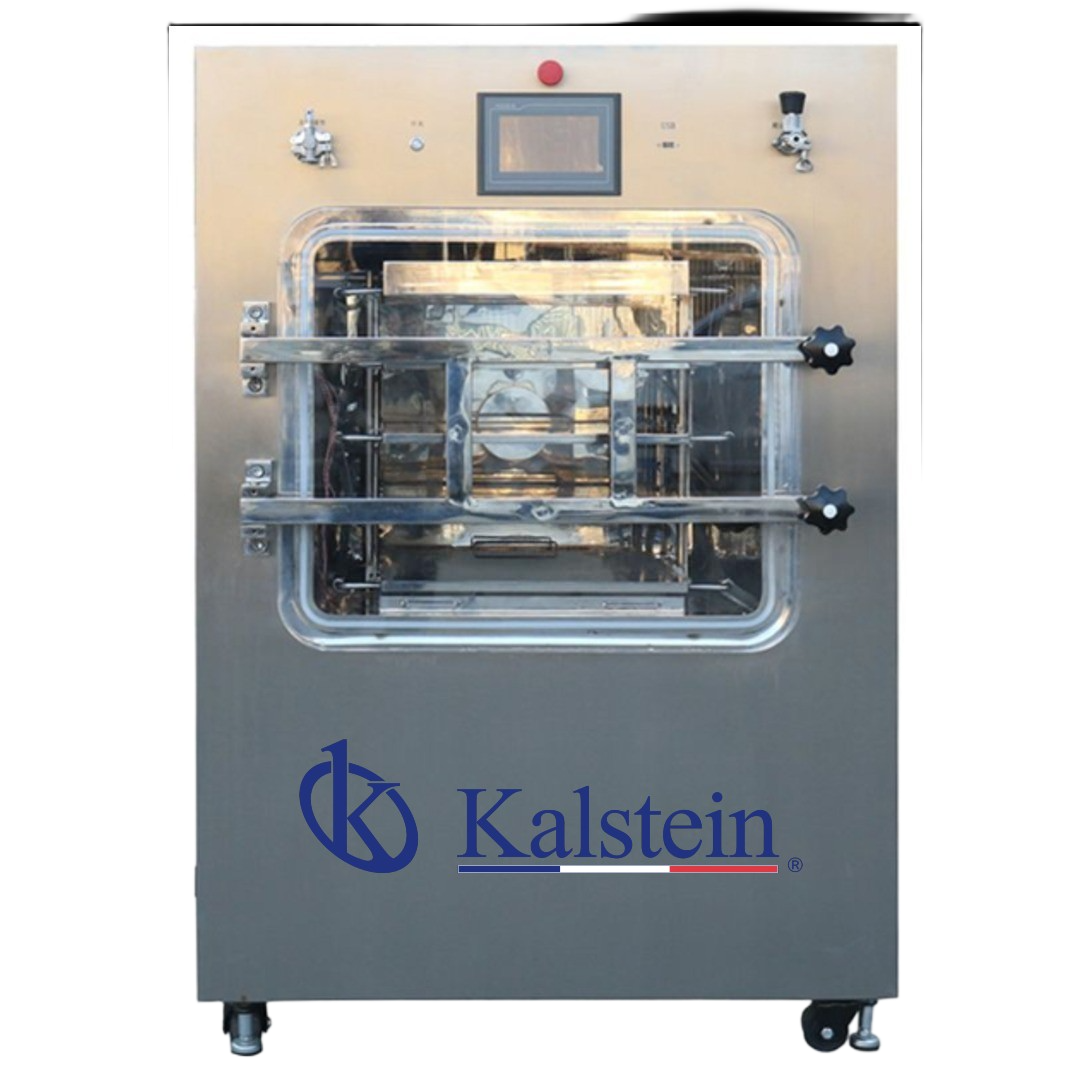

Overview of the YR06692 Freeze Dryer
The YR06692 is an industrial-grade vacuum freeze dryer, specifically designed for high-precision onsite processes. Featuring a silicone oil heating system, it ensures uniform and stable heat transfer, making it ideal for applications in medicine, pharmacy, biological research, and fine chemistry. This model also integrates a top press system (stoppering) that hermetically seals vials within the vacuum chamber, preventing secondary contamination and moisture reabsorption.
Technical Specifications of YR06692
Model | YR06692 |
Freeze Drying Area | 1.0 m2 |
Heating Type | Silicone Oil (Uniform) |
Press Function | Top Press for Vials (Stoppering) |
Loading Capacity (L) | 10 to 15 Liters (depending on material) |
Cold Trap Temperature | -70 °C or -80 °C (optional) |
Shelf Temperature | -50 °C to +70 °C |
Temperature Accuracy | ± 1 °C |
Final Vacuum | < 5 Pa |
Shelf Material | Stainless Steel SUS304/316L |
Control System | FD-PILOT (7" Touch Screen) |
Memory Capacity | 100 recipe groups / 50 segments |
Data Interface | USB port for curve export |
Voltage | 380V / 50Hz (Three-phase) |
Total Power | 4.5 kW to 6.0 kW (depending on configuration) |
Equipment Dimensions | 120 x 95 x 175 cm |
Net Weight (kg) | 480 kg |
Shipping Weight (kg) | 550 kg (Wooden Box) |
Principles of Measurement Interpretation
Accurate interpretation of measurements from the YR06692 is crucial for ensuring reliability and reproducibility in results. The vacuum freeze-drying process involves sublimation, where ice transforms directly into vapor without passing through the liquid phase. Here are key principles that influence the interpretation of measurements:
- Vacuum Level Measurement: The vacuum level must be closely monitored as it affects the rate of sublimation. A low vacuum can lead to slower drying times and potential product degradation.
- Temperature Control: Each shelf's temperature must be accurately measured and controlled to maintain the uniform drying process. Discrepancies can lead to uneven drying and variable product quality.
- Time Duration: The duration of the freeze-drying cycle directly correlates with the sample's final moisture content. Understanding the correlation between time and moisture levels is essential.
Common Misinterpretations When Using YR06692
Users may encounter several common misinterpretations related to the measurements displayed by the YR06692. Addressing these misunderstandings is vital for achieving precise results:
- Misreading Temperature Data: Users may overlook the importance of the actual shelf temperature versus the control set point, leading to miscalculations in product quality.
- Ignoring Final Vacuum Levels: Failure to monitor the final vacuum can lead to improper sealing and moisture retention, which may compromise product integrity.
- Neglecting Calibration: Infrequent calibration of the sensors can lead to inaccurate readings. Implementing a regular calibration schedule is critical for maintaining measurement accuracy.
Practical Examples of Measurement Interpretation
Understanding practical examples of measurement interpretation can help users navigate the complexities of operating the YR06692. Here are two scenarios:
- Scenario 1: If a sample does not fully dry after the prescribed period, check the vacuum level and shelf temperatures. An inadequate vacuum level may have affected the sublimation rate.
- Scenario 2: If moisture is detected in vials post-process, verify the final vacuum measurement. A reading higher than specified indicates a potential failure in the sealing process.
Recommended Calibration Procedures
To ensure reliable measurement interpretations, implementing a systematic calibration procedure is imperative:
- Regular Calibration Schedule: Establish a routine calibration schedule, ideally every three months, to maintain measurement accuracy.
- Calibration Standards: Use certified calibration standards that closely match the anticipated measurement ranges for the YR06692.
- Documentation: Keep meticulous records of all calibration activities to ensure traceability and compliance.
Frequently Asked Questions
What are the key factors influencing measurement accuracy in the YR06692 Freeze Dryer?
The key factors include vacuum level, shelf temperature, and duration of the freeze-drying cycle. Each must be monitored closely to ensure optimal results.
How can I ensure that the readings from the YR06692 are accurate?
Regular calibration of sensors, monitoring vacuum levels, and ensuring proper temperature control are essential for accurate readings.
What steps should I take if measurements indicate incomplete drying?
If measurements indicate incomplete drying, check the vacuum levels and shelf temperatures, as these are critical factors affecting the drying process.
How often should I calibrate my YR06692 Freeze Dryer?
It is recommended to calibrate the YR06692 every three months to maintain measurement accuracy.
What should I do if my vacuum levels are consistently higher than expected?
If vacuum levels are consistently high, inspect for potential leaks in the system and ensure that the vacuum gauge is functioning correctly.
How does temperature affect the freeze-drying process in the YR06692?
Temperature directly influences the rate of sublimation; maintaining the correct temperature ensures uniform drying and prevents degradation.
What are the consequences of neglecting measurement interpretation protocols?
Neglecting measurement interpretation can lead to compromised product quality, inconsistent results, and potential regulatory non-compliance.
