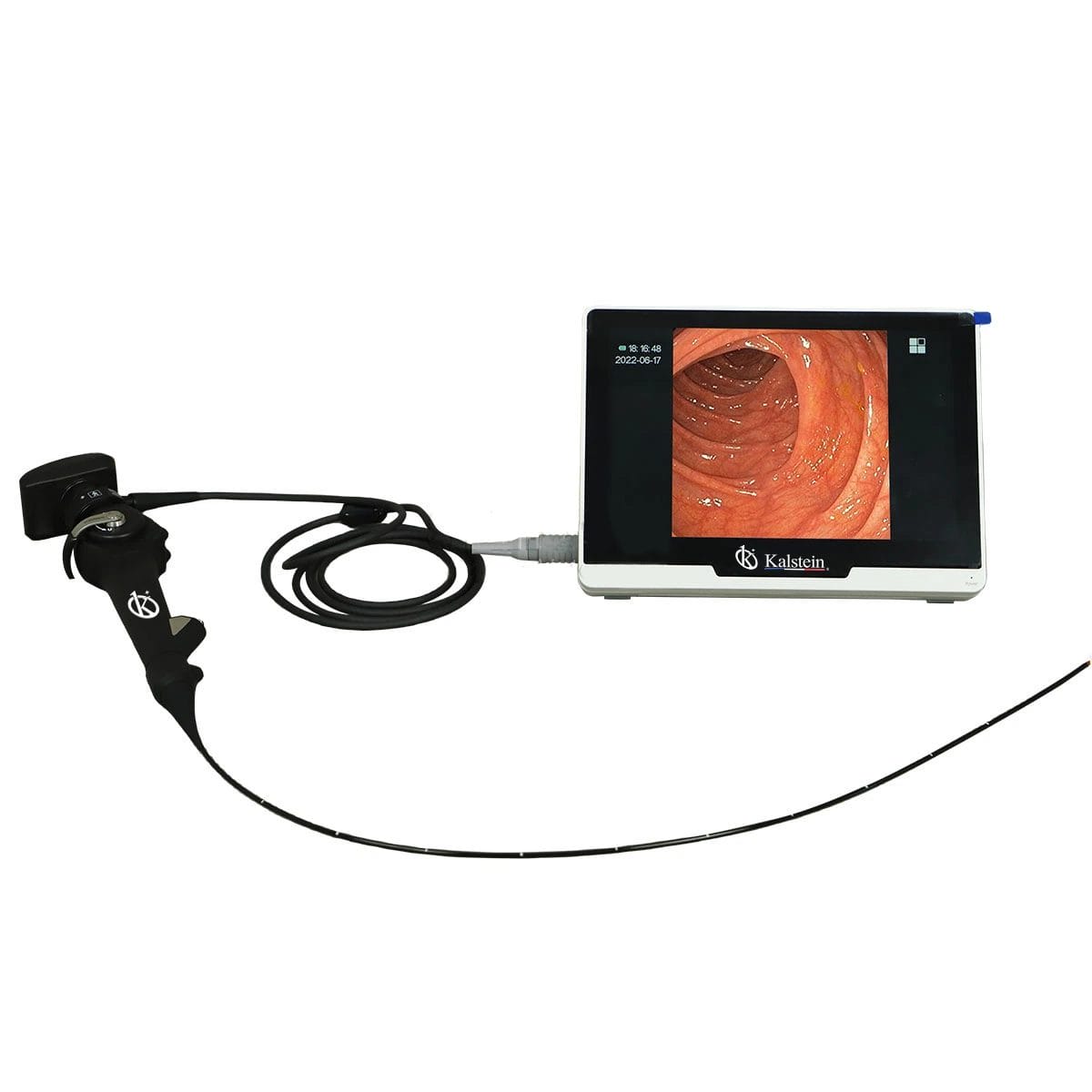

Troubleshooting Common Issues with the YR06153 Portable HD Veterinary Video Endoscope
The YR06153 Portable HD Veterinary Video Endoscope is an advanced tool designed to aid veterinarians in various procedures, from bronchoscopy to bladder examinations. However, like any sophisticated device, it may encounter some common issues during operation. This article focuses on troubleshooting these problems based on specific symptoms, ensuring that veterinarians can maintain the highest standards of care in their practices.
Technical Data for YR06153
| Model | Diameter of Insertion Tube | Working Channel | Working Length | View Angle | View Depth | Range of Bending | Screen Size |
|---|---|---|---|---|---|---|---|
| YR06153 | 4.8 mm | 2.0 mm | 1000 mm | 120° | 3-200 mm | 180° (U), 130° (D), 120° (R), 120° (L) | 10 inches |
Common Symptoms and Troubleshooting Solutions
As with any sophisticated medical equipment, the YR06153 may display various symptoms that can hinder its function. Below are common symptoms, probable causes, and solutions to rectify the issues.
Equipment Does Not Power On
One of the first issues that operators may encounter is the equipment failing to power on. The probable causes for this could include:
- Discharged battery or disconnected power supply.
- Faulty power button or internal circuit malfunction.
- Faulty adapter connections.
Diagnostic Steps:
- Check the power source and ensure the device is properly connected.
- Examine the power button for any signs of damage.
- Verify that the battery is charged and functional.
Solution: If the device still does not power on after these checks, consult with a technician for a thorough inspection of the internal circuits.
Inconsistent Image Quality
Veterinarians rely on clear images for diagnostics. If the image quality appears blurry or inconsistent, consider the following causes:
- Dirty lens or damaged insertion tube.
- Improper viewing angle.
- Insufficient light source.
Diagnostic Steps:
- Clean the lens gently using a soft cloth and appropriate cleaning solution.
- Adjust the viewing angle to ensure optimal clarity.
- Check the light source functionality and replace the LED if necessary.
Solution: Regular maintenance and cleaning can prevent image inconsistencies from affecting procedures.
Error Code E-03 Displayed
Error codes can be frustrating. If you see an E-03 error, it usually indicates issues with the working channel. Possible causes include:
- Blockage in the working channel.
- Improper insertion technique.
Diagnostic Steps:
- Verify that the working channel is free of blockages.
- Review the insertion technique and ensure it follows the manufacturer's guidelines.
Solution: Clear the blockage or adjust the insertion method as needed. If the issue persists, consult the user manual for further instructions.
Video Freeze or Lagging
Real-time viewing is crucial for effective diagnostics. If the video freezes or lags, consider the following:
- Insufficient processing power.
- Interference from external devices.
Diagnostic Steps:
- Close unnecessary applications that may be running in the background.
- Check for electromagnetic interference from other devices.
Solution: Restart the device to clear temporary glitches and ensure proper functionality.
Symptom-Cause-Solution Table
| Symptom | Probable Cause | Solution |
|---|---|---|
| Equipment Does Not Power On | Discharged battery; Faulty power button | Check connections and battery; consult technician |
| Inconsistent Image Quality | Dirty lens; Insufficient light | Clean lens; adjust light source |
| Error Code E-03 | Blockage in working channel | Clear blockage; review insertion technique |
| Video Freeze or Lagging | Insufficient processing power | Close background applications; reduce interference |
Frequently Asked Questions
What should I do if the YR06153 endoscope displays an error code?
When the YR06153 endoscope displays an error code, it is essential to first consult the user manual for a description of the error. Based on the error code, perform the necessary diagnostic steps to identify potential issues, and follow the recommended solutions outlined in this article or contact technical support for further assistance.
How can I ensure my YR06153 endoscope remains in good condition?
To maintain the YR06153 in good working condition, conduct regular cleanings of the lens and working channel after each use. Additionally, perform periodic checks on the power supply and connections, and ensure the software is updated to the latest version provided by the manufacturer.
What are the common applications for the YR06153 endoscope?
The YR06153 Portable HD Veterinary Video Endoscope can be used in various applications including bronchoscopy, rhinoscopy, pulmonary depth detection, urethra examinations, and bladder treatments. Its versatility makes it an essential tool in veterinary diagnostics and treatment procedures.
Can I use third-party accessories with the YR06153?
While some third-party accessories may be compatible with the YR06153, it is highly recommended to use only manufacturer-approved accessories to ensure safety and optimal performance. Using non-approved accessories may void the warranty or lead to equipment malfunction.
What should I do if the light source of the YR06153 fails?
If the light source fails, first verify the connections and ensure the LED is properly seated. If the problem persists, it may require a replacement of the light source. Consult the user manual for the correct procedure for replacing the LED light, or reach out to a qualified technician for assistance.
How often should I perform maintenance on the YR06153 endoscope?
Maintenance on the YR06153 should be performed after each use, focusing on cleaning and inspecting the device for any visible damage. Additionally, schedule comprehensive maintenance checks every 6-12 months, or as recommended by the manufacturer, to ensure long-term functionality.
For more detailed support, you can request a quote for the YR06153 through our inquiry system. This enables you to explore the best options for your veterinary practice without any obligation.
