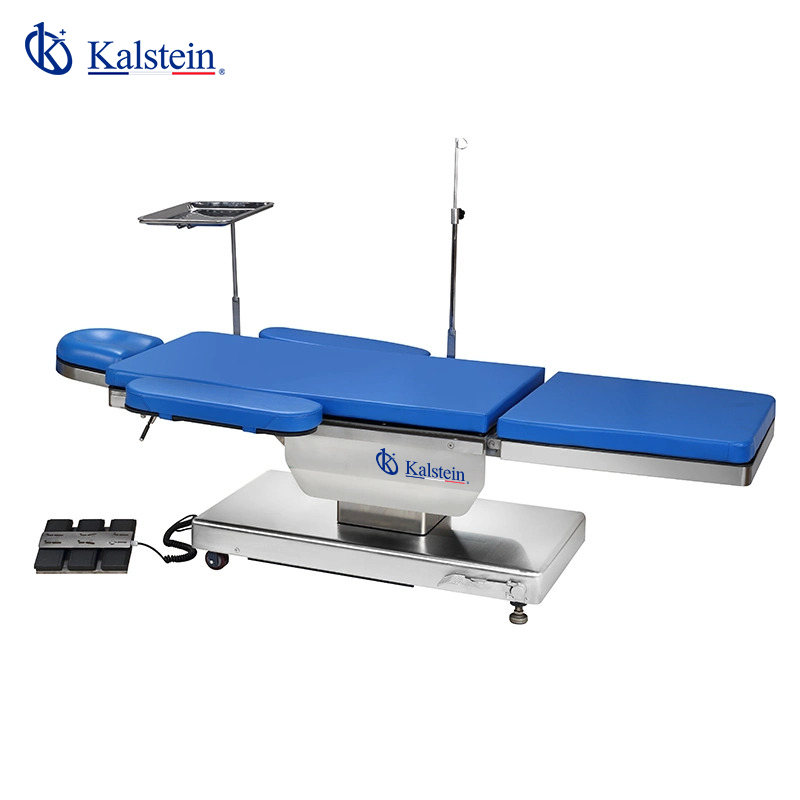

Troubleshooting Common Symptoms of the YR06237 Electro-Hydraulic Operating Table
The YR06237 Electro-Hydraulic Operating Table is an advanced medical equipment designed specifically for head surgery, featuring a total affinity profile and made from high-quality stainless steel to ensure durability and reliability. As with any sophisticated equipment, users may encounter various operational issues that necessitate troubleshooting. In this guide, we will focus on common symptoms, their probable causes, and effective solutions to enhance the operational efficiency of the YR06237.
Technical Specifications of YR06237
| Specification | Details |
|---|---|
| Model | YR06237 |
| Length/Width | 1900mm/500mm |
| Lowest Height of Table Top | ≤500mm |
| Height Adjustment Range | ≥240mm |
| Head Rest Adjustment | ≥180mm |
| Arm Support Adjustment | ≥180mm |
| Accessories | 1 Drip Rack, 1 Instrument Basin, 1 Arm Support, 3 Head Supports, 1 Hand Support for Surgeon |
Common Symptoms and Troubleshooting Solutions
Below are common symptoms encountered with the YR06237, along with their probable causes and solutions.
1. Equipment Does Not Power On
It can be concerning when the YR06237 does not respond to power activation. The possible causes include:
- Power supply not connected.
- Faulty power cord.
- Internal fuse blown.
To resolve this, check the following:
- Ensure that the power supply is correctly plugged in and switched on.
- Inspect the power cord for any visible damage.
- If necessary, replace the internal fuse as per the user manual guidelines.
2. Error Code E-03 Displayed
Error codes can indicate specific issues. The E-03 error code may signify a malfunction in height adjustment:
- Height adjustment motor failure.
- Electrical connection issue.
To troubleshoot:
- Check the connections to the height adjustment motor.
- Consult the manual for motor reset instructions or replacement if necessary.
3. Inconsistent Table Height
When the table height does not maintain a consistent level, it may be due to:
- Mechanical obstruction.
- Improper calibration.
Steps to fix this issue include:
- Inspect for any obstructions in the height adjustment mechanism.
- Recalibrate the height settings as per the operating instructions.
4. Difficulty Adjusting Head Rest
If users find it challenging to adjust the head rest, it might be caused by:
- Loose adjustment mechanism.
- Malfunctioning adjustment lever.
Resolution steps are:
- Check the adjustment mechanism for tightness and secure any loose components.
- Inspect the adjustment lever and replace if necessary.
5. Hydraulic Fluid Leakage
Hydraulic fluid leakage can compromise the functionality of the YR06237. Possible reasons include:
- Piping damage.
- Seal wear.
To address this issue:
- Inspect all hydraulic hoses for damage.
- Replace worn seals to prevent leakage.
Symptom to Cause to Solution Matrix
| Symptom | Cause | Solution |
|---|---|---|
| Equipment Does Not Power On | Power supply not connected; faulty power cord; internal fuse blown | Check connections; inspect power cord; replace fuse |
| Error Code E-03 | Height adjustment motor failure; electrical connection issue | Check motor connections; consult manual for reset |
| Inconsistent Table Height | Mechanical obstruction; improper calibration | Inspect for obstructions; recalibrate settings |
| Difficulty Adjusting Head Rest | Loose adjustment mechanism; malfunctioning lever | Secure mechanism; replace lever if needed |
| Hydraulic Fluid Leakage | Piping damage; seal wear | Inspect hoses; replace worn seals |
Frequently Asked Questions
What should I do if the YR06237 does not turn on?
If the YR06237 does not turn on, first check that the power supply is plugged in. Inspect the power cord for damage and verify that the internal fuse is intact. If these steps do not resolve the issue, consult the user manual for further troubleshooting.
How can I resolve the E-03 error code on the YR06237?
The E-03 error code typically indicates a malfunction with the height adjustment feature. Check the connections to the height adjustment motor and reset or replace it according to the manual instructions.
What maintenance should I perform on the YR06237 to prevent issues?
Regular maintenance should include checking hydraulic fluid levels, inspecting electrical connections, and ensuring that all moving parts are appropriately lubricated and free from obstructions.
Is it possible to calibrate the YR06237 myself?
Yes, users can calibrate the YR06237 by following the calibration instructions outlined in the user manual. It is advisable to perform calibration regularly to ensure accurate operation.
Where can I find replacement parts for the YR06237?
Replacement parts can typically be sourced from authorized suppliers or directly through the manufacturer's recommendations in the user manual. Ensure to use compatible parts to maintain warranty and operational integrity.
Conclusion
With the YR06237 Electro-Hydraulic Operating Table, troubleshooting and rectifying common issues can significantly enhance its functionality and longevity. By understanding the symptoms and following the outlined solutions, operators can ensure optimal performance. If you need more assistance or wish to request a quote, please reach out through our dedicated channels.
