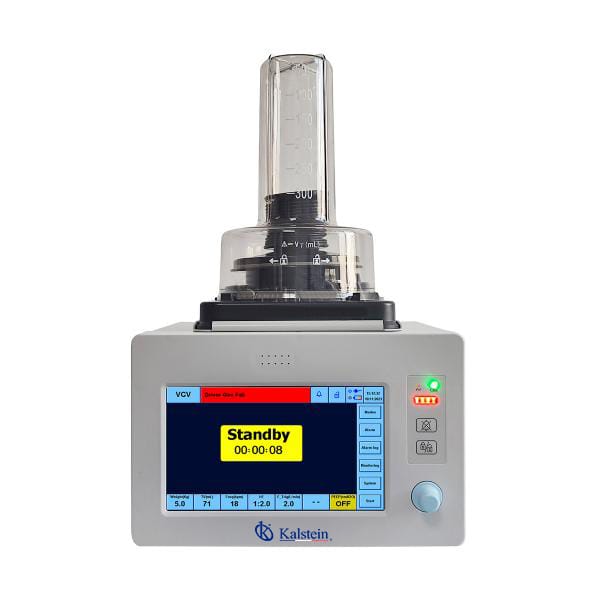

Technical Glossary and Key Terminology for the YR06104 Turbo-driven Veterinary Anesthesia Ventilator
The YR06104 Turbo-driven Veterinary Anesthesia Ventilator represents a significant advancement in the field of veterinary anesthesiology. This article aims to provide a comprehensive technical glossary and key terminology associated with the YR06104, assisting operators and technicians in effectively utilizing this sophisticated piece of equipment.
Understanding the YR06104 Ventilator
The YR06104 is designed for various surgical scenarios involving animals, and it finds extensive application in pet hospitals, animal clinics, research institutions, and training facilities. Its unique turbo design allows it to operate without a high-pressure air source, utilizing only an oxygen concentrator to function effectively. The ventilator features automatic calculation of ventilation parameters based on the weight of the animal, which streamlines the setup process.
Technical Specifications of the YR06104
| Specification | Details |
|---|---|
| Model | YR06104 |
| Tidal Volume (TV) | 20-1500 ml |
| Breathing Rate (Freq) | 1-150 bpm |
| Spontaneous Breathing Rate (Freq_Spont) | 0-150 lpm |
| Inhalation/Exhalation Ratio (I:E) | 9.9:1-1:9 adjustable |
| Hold Time | 0-50% |
| Flow Trigger Sensitivity (F_Tring) | 0.5-20 L/min, OFF |
| Pressure Trigger Sensitivity (P_Tring) | -1-20 cmH2O, OFF |
| End-Expiratory Pressure | 3-20 cmH2O, OFF |
| SIMV Frequency (Fre_SIMV) | 2-60 bpm |
| Inspiratory Time (T_Insp) | 0.1-12 s |
| Pressure Support (PS) | 0-60 cmH2O |
| Inspiratory Pressure (T_Insp) | 0-60 cmH2O |
| Expiratory Tidal Volume | 0-2500 ml |
| Inspiratory Tidal Volume | 0-2500 ml |
| Minute Ventilation (MV) | Display range: 0-99 L/min; Use range: 0-25 L/min |
| Spontaneous Minute Ventilation (MV_Spont) | Display range: 0-99 L/min; Use range: 0-25 L/min |
| Peak Pressure (Ppeak) | 0-80 cmH2O |
| Platform Pressure (Pplat) | 0-80 cmH2O |
| Mean Pressure (Pmean) | 0-80 cmH2O |
| Inhaled Oxygen Concentration (FiO2) | 15-100% |
| End-Expiratory Pressure (PEEP) | 0-20 cmH2O |
| Driving Gas Pressure (Press_Drive) | 0-900 kPa |
| Paw-T Waveform | Pressure monitoring range: 0~120 cmH2O |
| Flow-T Waveform | Y-axis: -1800~180 L/min |
| V_T Waveform | Z-axis: 0~2000 L/min |
Key Terminology Explained
| Term | Definition |
|---|---|
| Tidal Volume (TV) | The amount of air that is inhaled or exhaled during each respiratory cycle. |
| Breathing Rate (Freq) | The number of breaths taken in a minute. |
| Spontaneous Breathing Rate (Freq_Spont) | The rate at which the animal breathes spontaneously when not aided by mechanical ventilation. |
| Inhalation/Exhalation Ratio (I:E) | The ratio of the time spent inhaling versus exhaling during mechanical ventilation. |
| Flow Trigger Sensitivity (F_Tring) | The minimum flow rate required to trigger the ventilator to deliver a breath. |
| Pressure Support (PS) | Additional pressure provided by the ventilator to assist inhalation. |
| End-Expiratory Pressure (PEEP) | The pressure in the airways at the end of expiration, which helps to keep the alveoli open. |
| Inspiratory Time (T_Insp) | The duration of time allocated for inhalation during a breathing cycle. |
| Peak Pressure (Ppeak) | The maximum pressure reached in the respiratory circuit during inhalation. |
| Mean Pressure (Pmean) | The average pressure in the airways during the respiratory cycle. |
| Flow-T Waveform | A graphical representation of the airflow over time during mechanical ventilation. |
| Paw-T Waveform | A graphical representation of the airway pressure over time during mechanical ventilation. |
| Driving Gas Pressure (Press_Drive) | The pressure of the gas used to power the ventilator. |
| Inhaled Oxygen Concentration (FiO2) | The percentage of oxygen in the gas mixture delivered to the patient. |
| Pressure Trigger Sensitivity (P_Tring) | The minimum pressure change required to trigger the ventilator to deliver a breath. |
| Minute Ventilation (MV) | The total volume of air breathed in one minute. |
Frequently Asked Questions
What is the main function of the YR06104 Turbo-driven Veterinary Anesthesia Ventilator?
The YR06104 Turbo-driven Veterinary Anesthesia Ventilator is designed to provide controlled ventilation for animals undergoing anesthesia during surgical procedures. It ensures that the required levels of oxygen and anesthetic gas are maintained, facilitating safe and effective surgeries.
How does the YR06104 calculate ventilation parameters?
The YR06104 automatically calculates ventilation parameters by simply inputting the weight of the animal. This feature allows for quick and accurate settings tailored to the specific needs of the patient, enhancing operational efficiency in clinical settings.
What types of ventilation modes are available on the YR06104?
The YR06104 offers multiple ventilation modes, including Volume-Controlled Ventilation (VCV), Pressure-Controlled Ventilation (PCV), and Spontaneous Ventilation (SPONT). These modes cater to various clinical requirements and allow for flexible treatment protocols.
What are the advantages of the turbo design in the YR06104?
The turbo design of the YR06104 eliminates the need for a high-pressure air source, allowing it to operate efficiently with just an oxygen concentrator. This design reduces complexity and enhances portability, making it suitable for various veterinary settings.
How does the YR06104 ensure patient safety during use?
Patient safety is a priority for the YR06104, which features adjustable pressure limits, real-time monitoring of ventilatory parameters, and automatic adjustments based on the animal's breathing requirements. This ensures optimal ventilation and minimizes risks during anesthesia.
Can the YR06104 be used for different species of animals?
Yes, the YR06104 is versatile and can be utilized for various animal species, including small pets and larger animals, making it an essential tool in veterinary practices.
Where can I request a quote for the YR06104 Turbo-driven Veterinary Anesthesia Ventilator?
You can request a quote for the YR06104 Turbo-driven Veterinary Anesthesia Ventilator through our sales channels. Our team will assist you with the pricing and product details.
