Technical Glossary and Key Terminology for the Electrohydraulic Operating Table YR06236
The Electrohydraulic Operating Table YR06236 is a sophisticated piece of medical equipment that requires a solid understanding of its technical specifications and terminology. This guide will delve into the essential technical glossary associated with the YR06236 to aid operators and technicians in maximizing its functionality and application in clinical settings.
Understanding the YR06236: Overview and Key Features

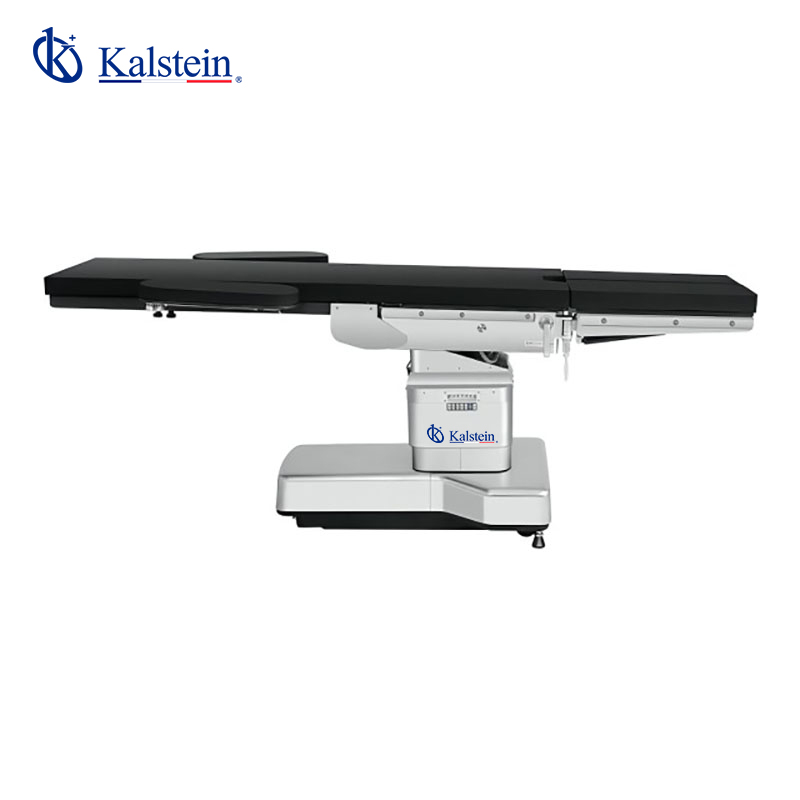

The YR06236 is designed for versatility in surgical environments, featuring a carbon fiber tabletop that can be moved longitudinally to accommodate various surgical requirements, particularly for orthopedic navigation systems and 3D imaging for X-ray photography. The high-density viscoelastic foam mattress is seamlessly formed, ensuring comfort and durability.
Technical Specifications of YR06236
| Parameter | Specification |
|---|---|
| Model | YR06236 |
| Length | 2290±100mm |
| Width | 520±20mm |
| Height Adjustment | (750~1150)±30mm |
| Tilt (left/right) | ≥15°/≥15° |
| Trendelenburg/Reverse Trendelenburg | ≥20°/≥25° |
| Head Board Upwards | ≥45° |
| Head Board Downwards | ≥90° |
| Back Board Upwards | ≥70° |
| Back Board Downwards | ≥25° |
| Waist Board Lifting | 100+20mm |
| Leg Board Upwards | ≥10° |
| Leg Board Downwards | ≥90° |
| Leg Board Outwards Lumbar Upper Corner | ≥180 ≤150° |
| Lumbar Lower Corner | ≤120° |
| Horizontal and Longitudinal Movement | 350±30mm |
| Main Voltage AC | 220V+22V, 50+1Hz |
| Input Power VA | 500+10% |
Key Terminology for the YR06236
| Term | Definition |
|---|---|
| Electrohydraulic | Refers to the combination of electrical and hydraulic technologies used in the operation of the table. |
| Trendelenburg Position | A position where the table is tilted so that the patient's head is lower than their feet, typically used in certain surgical procedures. |
| Viscoelastic Foam | A type of foam that provides comfort and support by conforming to the body's shape while distributing weight evenly. |
| Longitudinal Movement | The ability of the table to move back and forth to accommodate various surgical needs. |
| Height Adjustment | The mechanism that allows the table to be raised or lowered to the desired height for different procedures. |
| Hydraulic System | A system that uses fluid mechanics to create motion or force, in this case, to adjust the table's position. |
| Remote Control | A handheld device used to operate the table from a distance, providing convenience for medical staff. |
| Stainless Steel 304 | A high-quality steel used in the construction of the table and its accessories for durability and hygiene. |
| CPU Control | The central processing unit managing the electrical functions of the operating table. |
Frequently Asked Questions
What are the main features of the YR06236 Electrohydraulic Operating Table?
The YR06236 features a carbon fiber tabletop that can be longitudinally adjusted, a viscoelastic foam mattress, dual control modes (manual remote and bed control), and a complete hydraulic system using high-quality components such as the German HOERBIGER system.
How does the hydraulic system in the YR06236 operate?
The hydraulic system in the YR06236 operates using pressurized fluid to enable smooth adjustments of the table's height and tilt, significantly improving operational efficiency and patient safety during surgical procedures.
What are the dimensions and weight of the YR06236?
The YR06236 has dimensions of 2290±100mm in length and 520±20mm in width. Its gross weight is approximately 358 kilograms, ensuring stability during use.
What maintenance is required for the YR06236?
Regular maintenance of the YR06236 should include checking the hydraulic system for leaks, ensuring that the electronic controls are functioning properly, and cleaning the stainless steel components to uphold hygiene standards.
How can I maximize the functionality of the YR06236?
To maximize functionality, ensure that operators are trained in all control modes, conduct regular maintenance as outlined, and utilize the table’s features appropriate to the specific surgical procedures to enhance patient outcomes.
What safety features are included in the YR06236?
The YR06236 includes an auto-lock function for safety during operations, a robust hydraulic system, and a sturdy construction that prevents tipping or instability regardless of the adjustments made.
Where can I request a quote for the YR06236?
Interested parties can request a quote for the YR06236 through Kalstein Plus, where detailed information and pricing can be obtained.
