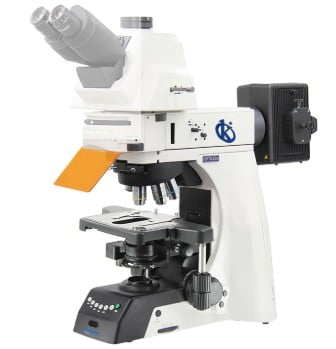

Semi-Automatic Vertical Fluorescence Microscope YR06650

The Semi-Automatic Vertical Fluorescence Microscope YR06650 is a research-grade instrument designed for laboratories that require maximum optical precision, partial automation, and versatility in advanced microscopy techniques. It incorporates an epifluorescence illuminator with a 6-position turret disk, making it ideal for demanding applications in cell biology, histology, microbiology, biomedical research, and advanced university teaching. Its Infinity Plan optical system with Semi-APO fluorescent objectives delivers sharp, flat images with excellent chromatic correction, even at high magnifications. This model features a coded automatic 6-position objective turret (4x, 10x, 20x, 40x, and 100x), enabling fast and precise objective changes during observation. The configurable light path (E100:P0 / E20:P80 / E0:P100) and the Seidentopf trinocular head with 360° rotation and adjustable inclination provide superior ergonomics for extended working sessions, as well as easy integration with digital cameras. The frameless, two-layer mechanical stage with sapphire glass insert and smooth displacement is optimized for delicate samples and high-stability work. In the market, the YR06650 is positioned within the segment of semi-automatic vertical research fluorescence microscopes, offering a competitive price compared to international premium brands and an excellent cost-to-performance ratio for institutions seeking advanced capabilities without over-investing. Thanks to its 24V/100W Köhler halogen illumination or optional low-consumption LED lighting, combined with the ECO automatic power-off function, this microscope delivers high performance, energy efficiency, and long-term durability.

Frequently Asked Questions

What types of applications does the YR06650 microscope support? It is designed for fluorescence (FL) and brightfield (BF) microscopy, with upgrade options for darkfield (DF), polarization (PL), phase contrast (PH), and DIC, covering a wide range of scientific and academic applications. Does it include fluorescent objectives? Yes, it is equipped with Infinity Plan Semi-APO fluorescent N-PLFN objectives (4x, 10x, 20x, 40x, and 100x), optimized for high-resolution observation. Is it compatible with digital cameras? Yes, its trinocular head and light-splitting options allow direct integration with digital imaging systems for documentation and analysis.

Advantages and Disadvantages

Advantages

• High-level Infinity Plan Semi-APO optical system
• Coded automatic objective turret for greater precision and speed
• Wide upgrade possibilities for advanced microscopy techniques
• Ergonomic design with 360° rotation and adjustable inclination
• ECO function for energy savings and extended service life

Possible Disadvantages

• Designed for technical and research users; not recommended for basic applications
• Requires minimal training to fully take advantage of its advanced functions

Field Use

The YR06650 Vertical Fluorescence Microscope is widely used in biomedical research laboratories, fluorescent marker analysis, cellular expression studies, quality control in biotechnology, and advanced university education. Its mechanical stability and optical precision make it ideal for prolonged observations, cell counting, comparative analysis, and reproducible scientific image capture.

Recommendations

To maximize the performance of the YR06650, periodic calibration, regular cleaning of optical surfaces, and selection of the appropriate illumination configuration according to the technique used are recommended. In high-workload laboratories, upgrading to LED illumination and adding DIC or polarization modules allows the system to scale as user needs evolve.

Technical Specifications

Model	YR06650
Main light path	E100:P0 / E20:P80 / E0:P100
Interpupillary distance	47 – 78 mm
Head rotation	360° head rotation
Head inclination	Tiltable
Head type	Seidentopf trinocular head
Standard magnification	40x – 1000x
Optical system	Infinity Plan
System features	Infinity / APO / DIC / Coded nosepiece / ECO (automatic power off)
Standard function	BF + FL
Upgrade function	BF + DF + PL + PH + FL + DIC
Stage type	Double mechanical stage
Slide holder	Double slide holder
Stage size	140 × 180 mm
Safety edge	Frameless safety edge
Height adjustment	Adjustable height knob
Objectives	Infinity Plan Semi-APO Fluorescent N-PLFN 4x / 10x / 20x / 40x / 100x
Objective type	Infinity Plan / Fluorescent
Nosepiece holes	6 positions
Nosepiece type	Internal
Nosepiece features	DIC slot / Polarizing slot / Coded
Eyepieces	EW10x / 22 mm (2 pcs)
Eyepiece diameter	30.0 mm
Eyepiece features	Adjustable diopter / Super WF ≥23 mm
