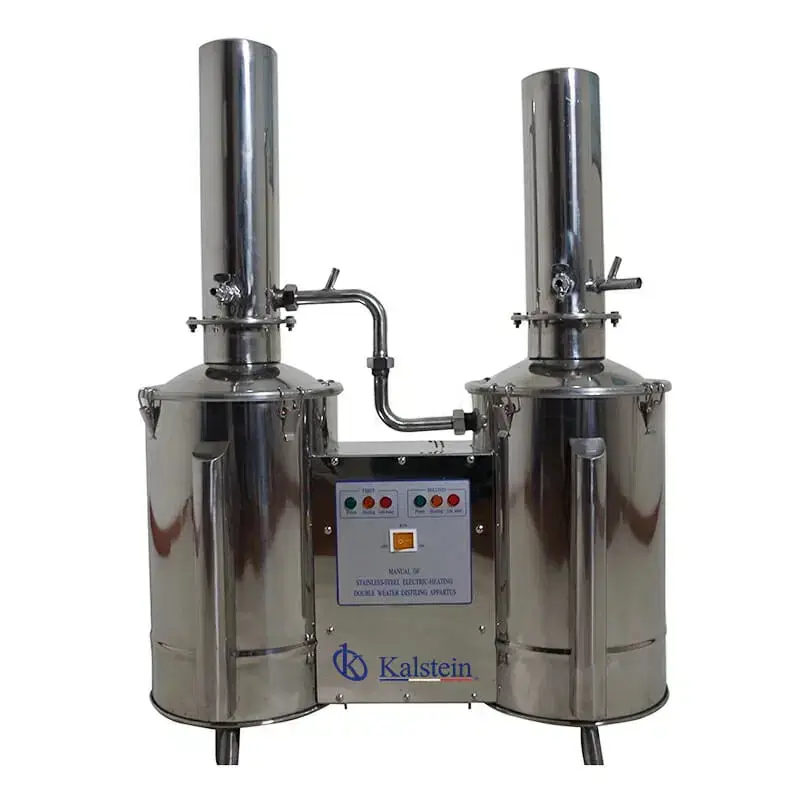

Installation and Start-Up Guide for the YR05975 Double Distillation Water Distiller
The YR05975 double distillation water distiller is designed for efficiency and reliability, making it an essential tool in laboratories and other applications requiring purified water. This guide provides detailed instructions on the installation and start-up process, ensuring optimal performance and reliability from your device.
Unboxing and Initial Setup
Upon receiving the YR05975, it is critical to carefully unbox the device and check for all included components. The following checklist should be utilized:
- YR05975 distiller unit
- Power cable
- User manual
- Condensation collection container
- Warranty card
Ensure that all parts are present and undamaged before proceeding with installation.
Installation Requirements
The installation of the YR05975 requires adherence to specific site requirements to guarantee optimal operation. Key specifications are:
| Aspect | Requirement |
|---|---|
| Voltage | 380V/50Hz |
| Temperature Range | 15°C to 30°C |
| Humidity | Below 80% |
| Vibrations | Minimal |
| Space Requirement | At least 10cm clearance on all sides |
Before installation, ensure that your location meets these specifications to prevent operational issues.
Anchoring and Leveling the Distiller
Proper anchoring and leveling of the YR05975 is critical for safe and effective operation. Follow these steps:
- Select a sturdy, flat surface to install the distiller.
- Use a spirit level to ensure the unit is perfectly horizontal.
- Secure the distiller to the surface if necessary, to prevent movement during operation.
Once anchored and leveled, proceed to connect the power supply.
Connecting Power Supply
To start the YR05975 for the first time, follow the power connection instructions:
- Ensure that the power switch is turned off before connecting the power cable.
- Plug the power cable into a suitable power outlet.
- Turn on the main power switch on the device.
Verify that the power indicator light turns on, indicating that the device is receiving power.
First-Run Calibration
Calibration ensures that the YR05975 operates at peak efficiency. Follow these steps for initial calibration:
- Fill the water reservoir with distilled water until it reaches the maximum level indicator.
- Set the control for initial vapor level and re-vapor separately according to the manual.
- Run the distiller for a minimum of two cycles to ensure proper calibration.
- Check the output water quality and adjust settings as necessary.
Proper calibration is essential for maintaining the distillation quality and efficiency of the YR05975.
Common Installation Mistakes
To avoid issues during installation and start-up, be aware of these common mistakes:
- Failing to check the water quality before operation.
- Not ensuring a stable power supply, resulting in malfunction.
- Ignoring the required clearances around the distiller, which can lead to overheating.
- Neglecting to perform initial calibration, affecting water purity.
By being cautious and following guidelines, you can successfully install and start the YR05975.
Technical Specifications of the YR05975
| Specification | Detail |
|---|---|
| Model | YR05975 |
| Voltage | 380V/50Hz |
| Power | 10kW |
| Water Consumption | >=5L/H |
| Dimensions | 45×68×84cm |
| Capacity | 5L/h |
Frequently Asked Questions
What is the power requirement for the YR05975 water distiller?
The YR05975 requires a voltage of 380V with a frequency of 50Hz. Ensure that your electrical setup meets these specifications to avoid any operational failures.
How do I know if my YR05975 is properly calibrated?
Calibration is validated by checking the purity of the distilled water output. If the water meets quality standards after two distillation cycles, it is properly calibrated. Always refer to the manual for specific quality metrics.
What should I do if the YR05975 does not power on?
First, check the power connection and ensure the outlet is functioning. If the power indicator light does not turn on, there may be a fault in the power supply or internal components that need checking.
Is there a recommended maintenance schedule for the YR05975?
Regular maintenance should include checking and cleaning the water reservoir, inspecting power connections, and performing calibration checks every three months to ensure consistent performance.
What materials are the YR05975 components made of?
The YR05975 is constructed from high-quality stainless steel, ensuring durability and resistance to corrosion, which is essential for long-term operation in water distillation.
Can the YR05975 be used in different environments?
The YR05975 is suitable for laboratory, industrial, and educational environments, provided the installation criteria regarding temperature, humidity, and space clearance are met.
