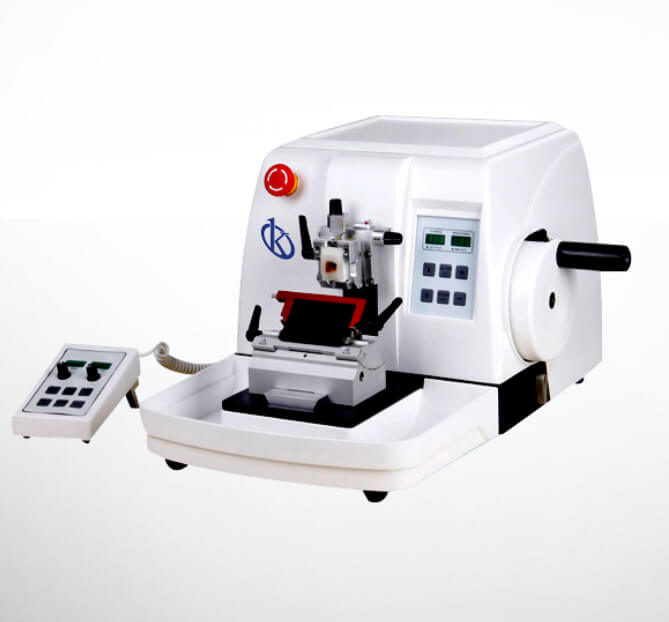

Environmental Conditions and Installation Requirements for the YR415-1 Microtome
The YR415-1 Microtome is an advanced instrument designed for precision slicing in pathological anatomy laboratories. Proper installation and environmental conditions are critical for the optimal functioning of this microtome. In this article, we will explore the necessary conditions, site preparations, and installation requirements to ensure that the YR415-1 operates efficiently and reliably.
Understanding the YR415-1 Microtome
The YR415-1 is a rotary microtome that features advanced mechanisms for automated slicing, trimming, and sample handling. With its user-friendly design and intelligent feeding system, it is capable of switching between manual and automatic modes seamlessly. Understanding its operational requirements is vital for ensuring its effective performance.
Technical Specifications of the YR415-1
| Model | YR415-1 |
|---|---|
| Type | Rotary |
| Usage Mode | Automatic |
| Maximum Sample Size | 70x70mm |
| Minimum Cutting Thickness | 0.25 μm |
| Horizontal Feed | 28 mm |
| Vertical Sample Stroke | 70 mm |
| Sample Holder Rotation | Any angle within 360 degrees |
| Blade Base Movement Range | 0-60 mm (forwards and backwards) |
| Blade Pressure Plate Movement Range | 0-23 mm |
| Sample Clamp Rotation | Any angle within 360 degrees |
| Sample Orientation | XY-8° |
| Speed Adjustment Range | 1500 μm/s ~ 3500 μm/s |
| Precision Error | ±1% |
| Operating Voltage | AC 220V±10% 50Hz (standard model); AC 110V±10% 60Hz |
| Power Consumption | 150W |
| Dimensions | 580× 475× 340 mm (W×D×H) |
| Net Weight | 41kg |
Site Preparation Checklist for the YR415-1 Microtome
Before installation, it is essential to prepare the site where the YR415-1 will be located. Here is a checklist to ensure a suitable environment for optimal operation:
- Temperature: Maintain a stable temperature range of 15-25°C.
- Humidity: Keep humidity levels between 30-70% to prevent condensation.
- Vibration: Ensure the installation area is free from vibrations that could affect precision cutting.
- Electrical Supply: Confirm the availability of suitable voltage and frequency as specified in the technical data.
- Ventilation: Ensure proper airflow to prevent overheating during operation.
- Clearances: Provide adequate clearance around the microtome for maintenance and operation.
- Safety: Be aware of safety protocols, including emergency power-off mechanisms.
Installation Requirements for the YR415-1
Following the site preparation, the installation of the YR415-1 Microtome requires adherence to specific steps:
- Unbox the YR415-1 carefully, checking for any shipping damage.
- Level the microtome using adjustable feet to ensure a stable base.
- Connect the microtome to a suitable power source with the correct voltage and frequency.
- Perform the first-run calibration, adjusting settings as needed based on sample requirements.
- Test the automated slicing function to ensure it operates smoothly.
- Document the installation process for future reference and maintenance.
Common Installation Mistakes to Avoid
While installing the YR415-1 Microtome, operators must be vigilant about avoiding common pitfalls:
- Neglecting temperature and humidity controls can lead to inaccurate slicing.
- Failing to level the microtome can cause uneven cuts and operational inconsistencies.
- Inadequate power supply can damage the microtome's electronic components.
- Overlooking clearance space can hinder maintenance and pose safety risks.
Frequently Asked Questions
What environmental conditions are optimal for the YR415-1 Microtome?
The YR415-1 Microtome operates best in a temperature range of 15-25°C and humidity between 30-70%. Maintaining these conditions ensures accurate performance and prevents damage.
How do I properly install the YR415-1 Microtome?
To install the YR415-1, ensure the site is prepared, level the unit, connect it to the appropriate power source, and perform initial calibrations before use.
What are common installation mistakes to avoid with the YR415-1?
Common mistakes include failing to level the microtome, neglecting power requirements, and not ensuring sufficient clearance and environmental controls.
How can I ensure the longevity of the YR415-1 Microtome?
Longevity can be ensured by adhering to installation guidelines, maintaining optimal environmental conditions, and performing regular maintenance checks.
What safety features are included in the YR415-1 Microtome?
The YR415-1 includes safety braking systems, overload protection, and emergency alarms to ensure safe operation during use.
Can the YR415-1 Microtome be used in various laboratory environments?
Yes, the YR415-1 is designed for versatility and can be adapted for use in clinical, educational, and industrial laboratories with specific protocols.
Conclusion and Call to Action
Understanding the environmental conditions and installation requirements for the YR415-1 Microtome is essential for its efficient operation and longevity. By following the guidelines outlined in this article, operators can ensure that the microtome performs at its best.
If you would like to request a quote for the YR415-1 Microtome or learn more about its features, please reach out to us.
