Climatic Chamber
Climatic chambers are essential tools in laboratory settings, designed to simulate various environmental conditions. These chambers help researchers and technicians conduct experiments under controlled temperature, humidity, and light conditions, ensuring the accuracy and reliability of results.
With advancements in technology, climatic chambers have become more efficient and versatile, catering to diverse applications such as pharmaceutical stability testing, plant growth studies, and material testing. Choosing the right climatic chamber can significantly impact research outcomes.
Types of climatic chamber your laboratory may need
Comprehensive Drug Stability Test Chamber
This chamber is specifically designed to assess the stability of pharmaceuticals under various environmental conditions. It provides precise control over temperature and humidity, ensuring that the integrity of the drug is maintained throughout testing.
Research facilities can rely on this chamber to generate reliable data that complies with regulatory standards, making it a vital asset for pharmaceutical companies.
Drug Stability Test Chamber
Designed for testing the stability of drugs, this chamber provides controlled conditions that replicate real-world scenarios. It is equipped with advanced monitoring systems to ensure that all parameters remain stable throughout the testing period.
This chamber is ideal for laboratories that need to ensure the longevity and efficacy of their pharmaceutical products.
Environmental Chamber
The environmental chamber is versatile and can be used for a variety of applications including material testing and biological studies. It allows for the simulation of different environmental conditions, making it suitable for testing the effects of temperature and humidity on materials and organisms.
This flexibility makes it a popular choice among researchers in various fields.
Illumination Drug Stability Test Chamber
This specialized chamber combines temperature and light control to assess the stability of light-sensitive drugs. It is crucial for pharmaceutical research where UV light exposure can significantly impact drug composition.
Laboratories can utilize this chamber to ensure the safety and efficacy of medications that may degrade under certain light conditions.
Plant Growth Chamber
The plant growth chamber is specifically designed to create optimal conditions for plant research and cultivation. It allows for precise control of light, temperature, and humidity, enabling researchers to study plant responses to various environmental factors.
This chamber supports agricultural research, helping scientists develop better crop varieties and improve agricultural practices.
What you should know before selecting a climatic chamber and making an investment
Key factors to consider
When selecting a climatic chamber, it’s essential to consider the specific requirements of your experiments. Factors such as temperature range, humidity control, and size should align with your research goals to ensure optimal performance.
Additionally, look for features like programmable settings and data logging capabilities to enhance the usability of the chamber.
Market price range
Climatic chambers vary significantly in price based on their specifications and capabilities. It's crucial to set a budget that aligns with your laboratory’s needs while ensuring you invest in a chamber that provides reliable performance and longevity.
Research current market prices to find a balance between cost and functionality that suits your requirements.
Value for money
Investing in a climatic chamber should be evaluated based on the value it brings to your laboratory. Consider the potential for improved research outcomes and compliance with industry standards that justify the cost of the unit.
Choosing a chamber with a good warranty and service options can also enhance its overall value.
Expected lifespan based on use and maintenance
The lifespan of a climatic chamber largely depends on how well it is maintained and the frequency of use. Regular maintenance ensures that the chamber operates efficiently and prolongs its service life.
Understanding manufacturer guidelines and adhering to recommended care will help in making a wise investment that serves your laboratory for years to come.
CLIMATIC CHAMBER KALSTEIN
Discover climatic chamber for your laboratory
Explore our range of climatic chambers designed to cater to various laboratory needs. Our products are engineered to provide precision and reliability, ensuring that your research can achieve accurate results in controlled environments.
Artificial Climate Chamber (Seed Germinator) YR06698
The YR06698 Seed Germinator is a 600 L growth chamber designed for agricultural research, quality control, and germination tests under reproducible en
View productOur best-selling climatic chamber
Artificial Climate Chamber (Seed Germinator) YR06698
Frequently Asked Questions (FAQ)
Is the illumination range sufficient for germination and early growth? Yes. The 0–15,000 lx range covers germination and seedling stages in multiple species. If your protocol requires a specific PPFD or LED spectra, modules and diffusers can be configured. How does it maintain temperature and humidity uniformity? Through optimized air circulation and PID control, achieving ±1.5 °C uniformity and ±0.1 °C accuracy, together with programmable defrost to prevent thermal spikes. Can it operate 24/7? Yes. It is designed for continuous operation, with compressor protections and integrated alarms. Preventive maintenance is recommended. What maintenance is required? Periodic cleaning of the stainless-steel interior, filter checks, sensor verification, and annual temperature/humidity calibration.Advantages and Disadvantages
Advantages • Broad environmental control: 5–65 °C (no light), 10–65 °C (with light), 40–95 %RH, 0–15,000 lx. • Uniformity and accuracy: ±1.5 °C / ±0.1 °C with PID and air circulation. • Professional construction: stainless-steel interior, adjustable shelves, double door with viewing window. • Sustainability: low-impact R-290 refrigerant. Possible disadvantages • Infrastructure requirements: 3.8 kW power draw and space consistent with a 600 L chamber. • Higher initial investment compared to units without humidity control or of smaller volume.Usage in the Field:
In agronomy and seed laboratories, the YR06698 standardizes germination (viability, vigor, and accelerated aging tests) under programmable temperature/humidity/lighting protocols. In plant research centers, it enables photomorphogenesis and abiotic stress assays with high repeatability. In industrial quality control, it ensures comparable lots via time-based profiles (e.g., 12/12 h light–dark cycles and thermal ramps), with records useful for internal audits.Recommendations:
• Plan the setup: define the lux range by species, shelf height, and thermal load (number of trays). • Calibration and verification: validate temperature and humidity with traceable standards at least once a year or per internal policy. • Good practices: avoid prolonged door openings; use containers that do not block airflow; schedule defrost cycles outside critical periods. • Safety: comply with regulations for R-290 equipment (adequate ventilation; no open flames).Technical Specifications
| Model | YR06698 |
| Temp range ℃ | With illumination 10~65℃，With no illumination 5~65℃ |
| Humidity range | 40%~95% humidity fluctuation±5%RH |
| Temperature uniformity values ℃ | ±1.5 |
| Illumination LX | 0~15000 |
| Illumination set range | Five level（20%、40%、60%、80%、100%） |
| Timing range | 0~99h |
| Power W | 3800 |
| Voltage V | 220 |
| Temperature range ℃: | 0-65℃ |
| Accuracy ℃ | ±0.1 |
| VolumeL | 600 |
| Inner size （mm）（H*W*D） | 1200*1050*650 |
| Packing size(mm) (H×W×D) | 1925*1430*1080 |
Detailed analysis of climatic chamber for an effective and safe choice
What are the Main Applications of Climate Chambers?
Climatic chambers are units used in laboratories, research centers and universities to carry out studies or tests and check the behavior, durability, quality of products and materials exposed to these climatic conditions.
Controlled Parameters in a Climate Chamber?
The climatic chamber is a fundamental laboratory instrument to perform a wide range of climatic tests on materials. However, it is very important to discover the descriptions of the climatic chambers, because depending on the operation and possibilities of each climatic chamber, some tests may or may not be practicable.

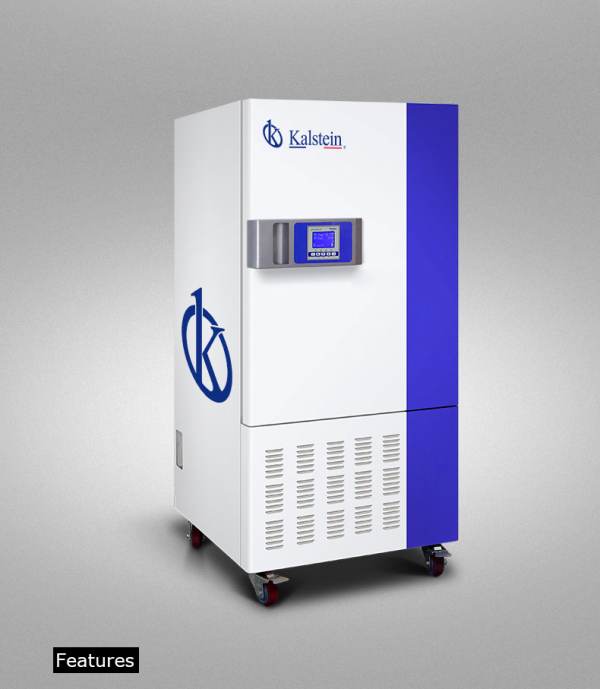

Unlocking Innovation with Climate Chambers for Laboratories
Modern experimental laboratories span a wide range of research areas, from engineering and health sciences to biotechnology; according to a report in the Journal of Chemical Engineering, the budget for experimental equipment is expected to increase annually over the next five years.

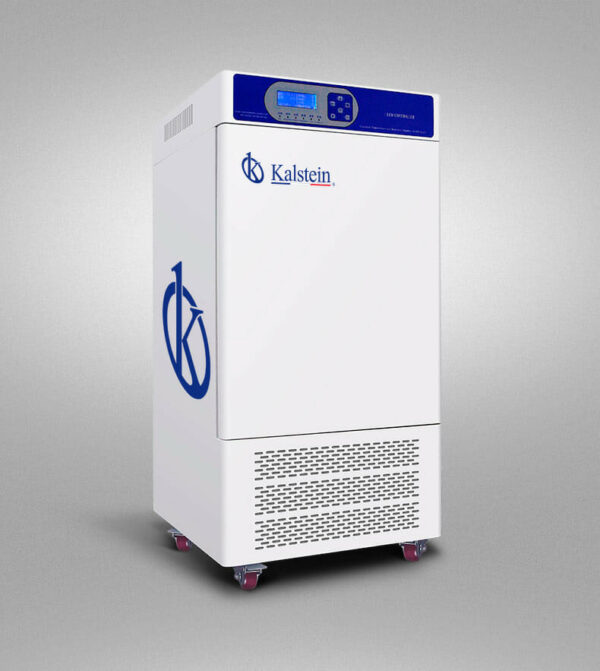

What levels of pressure and precision do modern climate chambers offer?
The extreme condition testing industry of products around the world is increasingly turning to modern climate chambers to recreate extreme temperature, humidity and pressure conditions from their external environments.
climatic chamber offer catalog
Guides about climatic chamber
Complete guides to choose climatic chamber

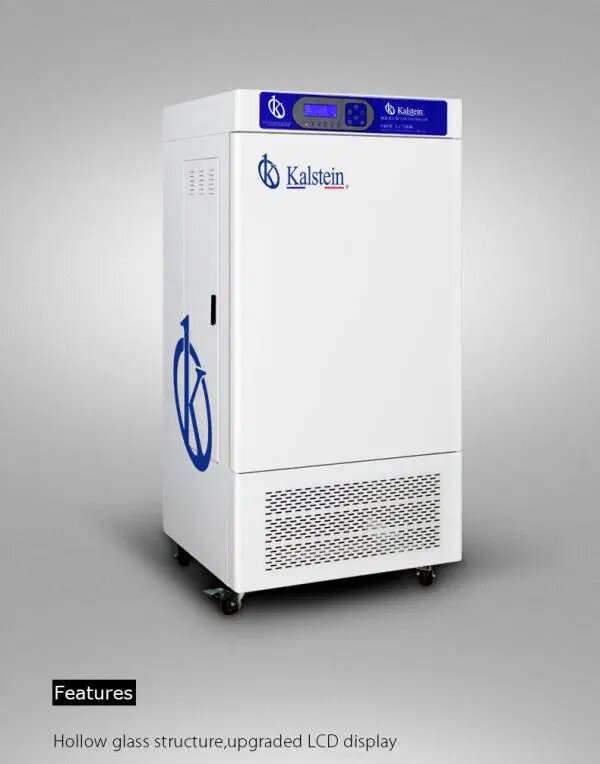

What technologies do modern climate cameras use to maintain an accurate temperature in the lab?
Modern climate chambers provide precise control of temperature, humidity, pressure and other environmental parameters in scientific research laboratory spaces. They are particularly useful for quantitative assessments under controlled condi
Leer más

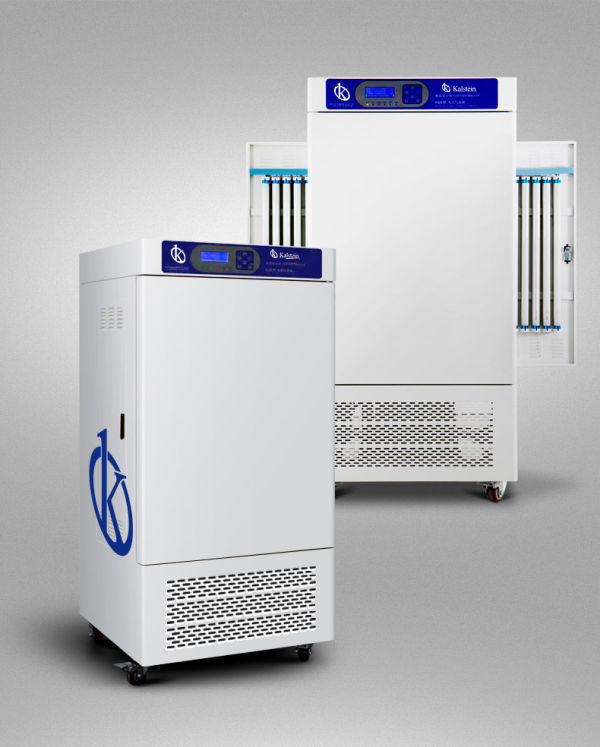

Are there fail-safe climate chambers to ensure safe results?
Climate control systems, such as those related to cooling and heating, are becoming increasingly important for maintaining a wide range of products in a variety of environments. This means that manufacturers face a rigorous application in t
Leer más

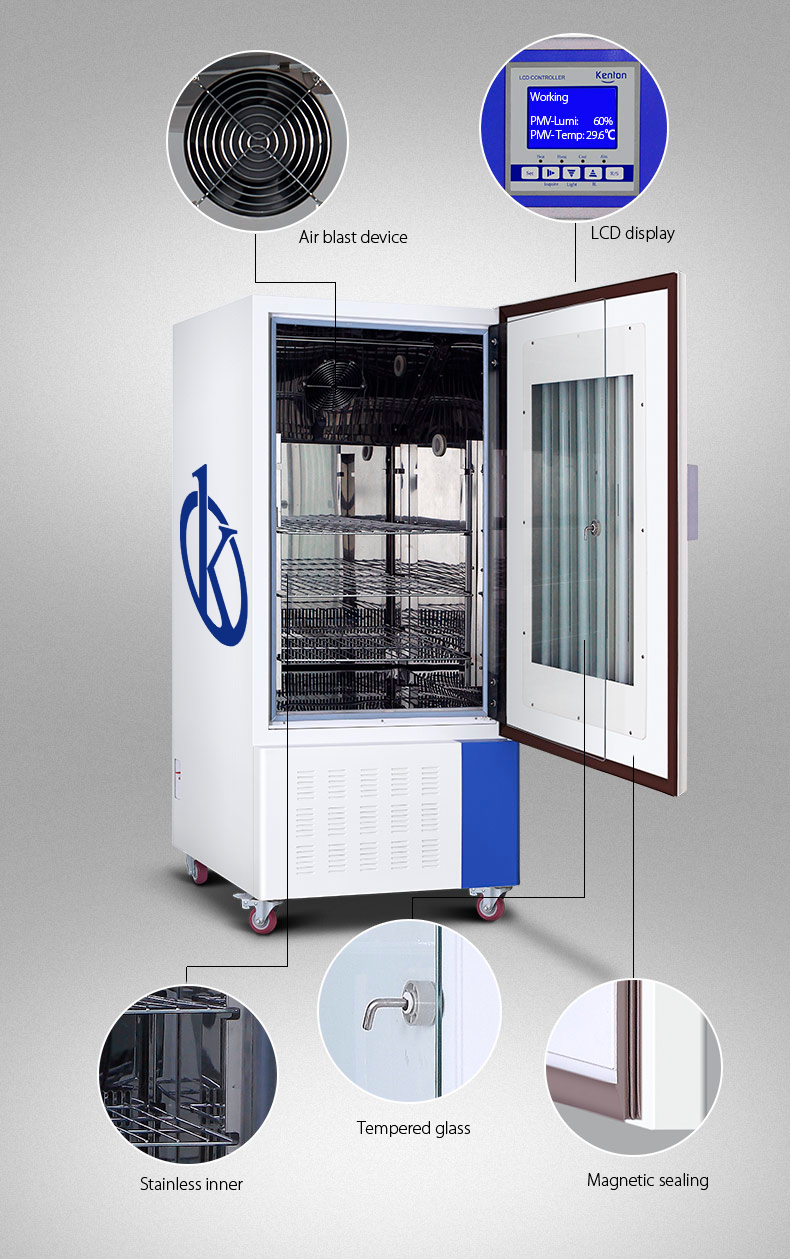

Climate Chamber Benefits for Fish Farming
The climate chamber can be used to control light from a room or a specific area, it can be used to keep the light constant or to vary it according to needs and the camera is commonly used to control light from a laboratory or a greenhouse.
Leer más

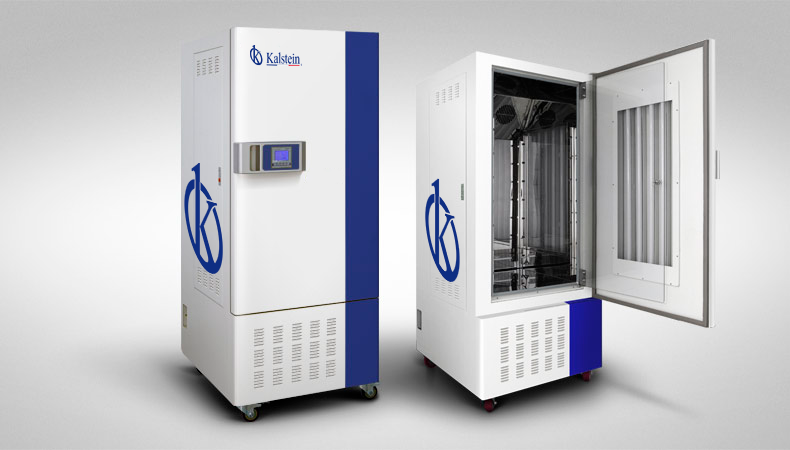

Thermal test monitoring with the use of the climate chamber
The evaluation of manufactured products, under environmental conditions similar to those where these elements will operate, allows to guarantee the quality and reliability of the product, in addition to the expected performance, in the envi
Leer másFrequently asked questions about Climatic Chamber
How to know the prices of Climatic Chamber?
To know the price of Climatic Chamber, please send us an email with your request through the contact form AQUI.
What are the delivery times for Climatic Chamber?
Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.
How to make a purchase of Climatic Chamber?
You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.
How does the warranty work for Climatic Chamber?
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.
Can I request a quote online for Climatic Chamber?
Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
