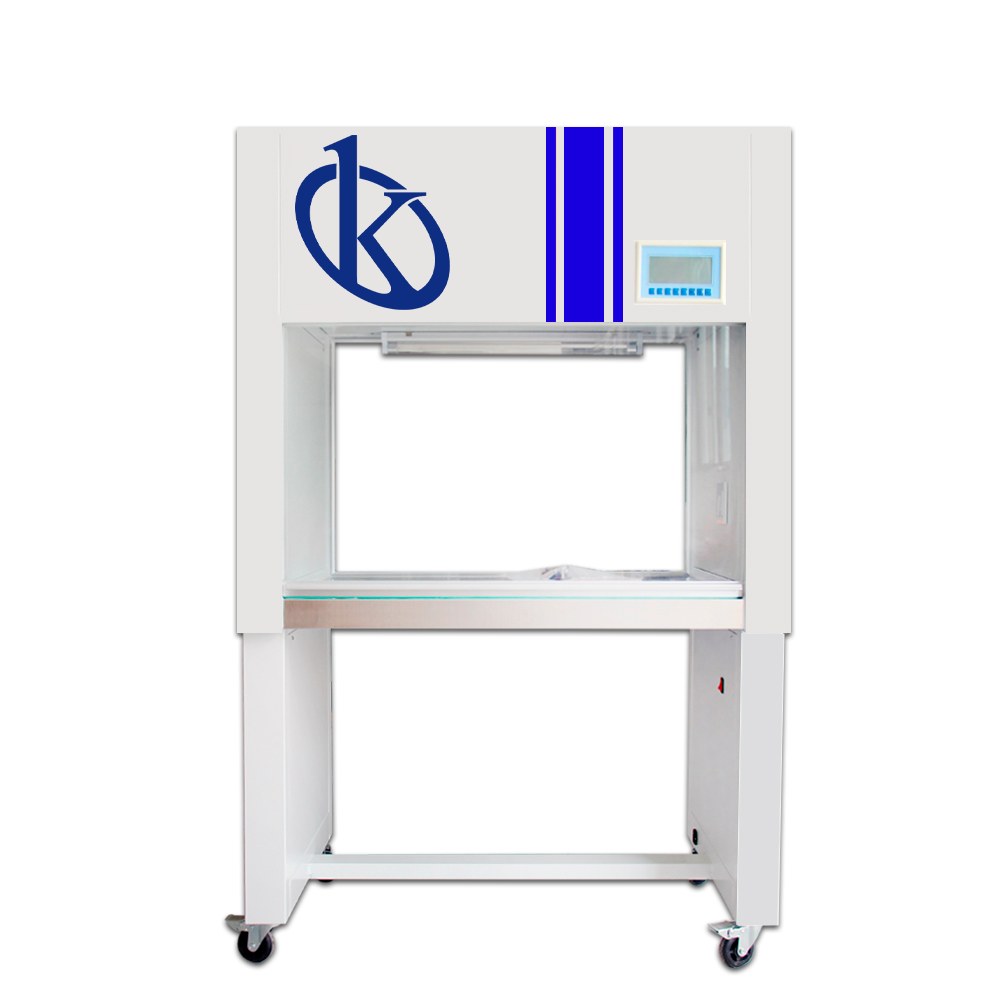

Laminar Flow Cabinet YR05738

The Laminar Flow Cabinet YR05738 is an advanced clean bench designed to provide a contaminant-free working environment, crucial in medical, chemical, and technical fields. Its versatile application spans various industries, including medical treatment, electronics, and food production. The cabinet features an arbitrary positioning sliding door system, ensuring ease of use and versatility. Constructed with a cold-rolled plate shell and a SUS304 brushed stainless steel work surface, it offers durability, corrosion resistance, and easy maintenance. It also includes a digital display LCD control interface, enhancing user accessibility. Moreover, its interlocked lighting and sterilization systems provide safe operation, complete with a timing function for the ultraviolet lamp.

Market Price

The average price for laminar flow cabinets like the YR05738 ranges between 1300 USD to 2000 USD. This range depends on features, brand popularity, and technical specifications. It's vital for buyers to compare options available in the market to choose the best fit for their specific needs.

Frequently Asked Questions

What maintenance does the Laminar Flow Cabinet YR05738 require? - Regular cleaning of the working surface and timely replacement of filters are essential. What industries is the cabinet suitable for? - It is ideal for medical, pharmaceutical, electronic, and food industries. How does the air filtration system work? - It is equipped with HEPA and primary filters to effectively extend the lifespan of the high-efficiency filter.

Advantages and Disadvantages

Advantages:

• High cleanliness level with vertical air supply.
• User-friendly digital interface and safe operation system.
• Durable and easy to clean due to high-quality materials.

Disadvantages:

• The higher initial cost compared to basic clean benches.
• Regular maintenance required to ensure optimal performance.

Product Use in the Field

The Laminar Flow Cabinet YR05738 provides a sterile environment, essential for laboratory and critical operations. Its downward airflow curtain prevents external air contamination, making it ideal for sensitive procedures in pharmaceutical and research laboratories.

Recommendations

To maximize the effectiveness of the YR05738, ensure it is used in a temperature-controlled environment away from direct drafts for optimal performance. Regularly check the digital interface and ensure the UV lamp timer is set correctly as required by your specific applications. Also, consider generating an automatic quotation through our Kalstein Plus platform for tailored pricing and purchasing options.

Features

• Vertical Air Supply
• Class 100 Cleanliness (US Federal 209E)
• Interlocked lighting and sterilization systems
• Digital display LCD control interface
• HEPA and primary filters

Technical Specifications

Model	YR05738
Air supply	Vertical Air Supply
Cleanliness grade	Class 100 (US Federal 209E)
Number of colonies	≤0.5pcs/dish-hour (Ø90mm culture dish)
The average wind speed	0.25-0.45m/s
Noise	≤62dB (A)
Power supply	AC single phase 220V /50Hz
Vibration half peak	≤0.5µM (x, y, z direction)
Illumination	≥300LX
Max. Power consumption	400 W
Dimension of working area(W*D*H)(mm)	880x650x580
Overall dimension (W*D*H)(mm)	1040x690x1600
Specification and quantityof high efficiency filter	865x555x50x 1
Specification and quantityof fluorescent lamp/UV lamp	12 W x 1 / 30 W x 1
Applicable persons	Single person- Single Side
