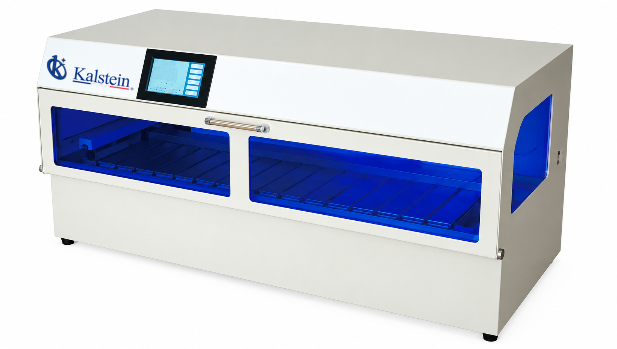

Automatic Staining and Covering System YR07007

The YR07007 is a high-speed automated equipment that combines the functions of staining and coverslip placement in a single continuous work cycle. It incorporates an adjustable 10.4-inch touchscreen panel with 200 editable programs, intelligent reagent management, and real-time water level control. Its flat sealing system reduces bubble formation and processes up to 800 slides per hour with maximum precision. Additionally, it has safety protocols for power outages and remote monitoring to ensure uninterrupted clinical workflow.

Advanced Design and Technology

• All-in-One Station: Integrates the complete processes of tissue staining and automatic coverslip placement in a single compact structure of 970 × 640 × 620 mm.

• Intelligent Thermal Control: Six reagent stations with temperature control from ambient to 90 °C using a constant water bath for optimal deparaffinization and staining.

• Automated Reagent Management: Precise control of the days and usage cycles of each reagent, issuing visual alerts and color identifiers on the main interface.

• High Precision Sealing Mechanism: Applies adhesive in a linear droplet form with a rounded pressing system that eliminates bubble formation and film leaks.

• Safety and Remote Monitoring: Includes intelligent detection of broken or missing coverslips, recovery from electrical failures, and real-time operational monitoring functions.

Frequently Asked Questions (FAQ)

• What types of stains can the equipment perform? It allows for routine tissue stains, rapid frozen sections, Pap stains for cytology, and special stains.

• What is the operational capacity of the stations and supports? It has a total of 27 stations (18 for reagents, 4 for washing, 3 for baking, 1 for loading, and 1 for transfer) and supports for 20 slides.

• Is technical personnel necessary throughout the process? No, the equipment performs automatic covering of slides without the need for manual intervention or on-call personnel.

Advantages and Disadvantages

Key Advantages:

• High Production Speed: Sealing performance capacity of up to 800 sheets per hour, optimizing laboratory times.

• Resource Savings: Uses 350 ml reagent containers and an intelligent on-demand water supply system that reduces water consumption.

• Operational Flexibility: Allows for continuous addition of samples and supports without interrupting ongoing active staining cycles.

Disadvantages / Considerations:

• Installation Requirement: Weighing 130 kg and with robust dimensions, it requires a firm and level support surface within the laboratory.

• Initial Setup: The wide variety of programming options (200 programs with 200 steps) requires a technical learning curve for optimal utilization.

Product Use in the Field and Recommendations

• Ideal Applications: Departments of pathology, histology laboratories, oncology diagnostic centers, and advanced cytological research.

• Recommended Maintenance: Periodically check the status of the reagents managed by the software and clean the adhesive dispensing needle to avoid blockages.

• Operation Recommendation: Use the quick start buttons on the initial station to streamline routine workload and configure modes according to sample priority.
